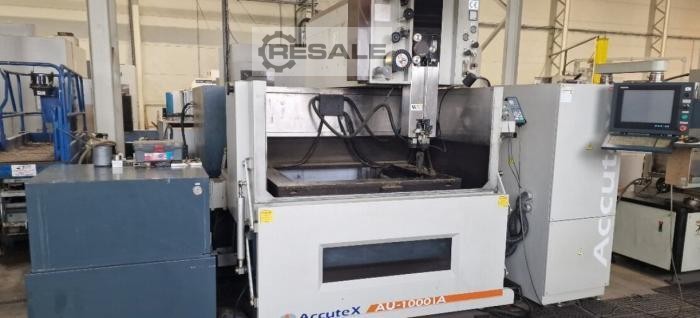

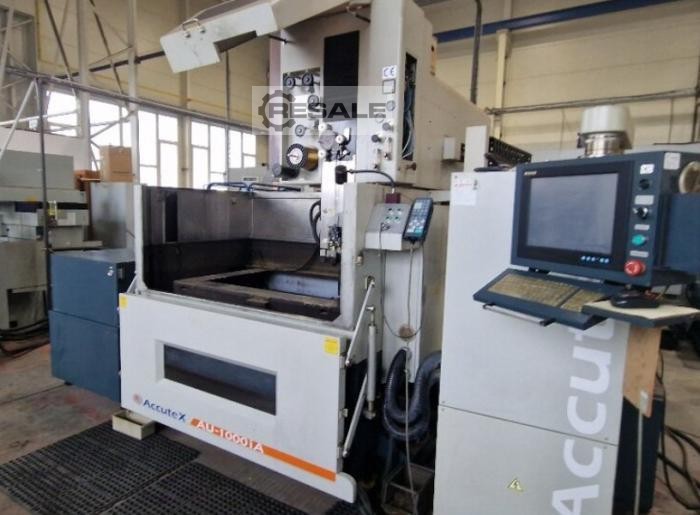

Obrabiarki do obróbki elektroiskrowej ACCUTEX AU 1000 iA

The machine is in good technical condition, after prior agreement it is possible to test it. Maximum size of the machined part mm 1330 x 900 x 595 Max. weight of the machined part kg 5000 Axis travel X/Y/Z/U/V mm 800 / 600 / 400 / 150 / 150 Diameter of the wire used mm 0.15-03 Continuously controlled 4 axes X, Y, U, V Drive system using AC servo drives Max. cut cone 22.5 / 100 mm Accuracy class of ball screws rpm C1 - highest Filtration system capacity l Main tank 1630l, secondary tank (Z=600) 1280 l Max. cutting speed mm/min 250 Dielectric conductivity measurement Auto – 5 ~ 200 kW-cm Dielectric temperature measurement Auto with accuracy 1C Power input kVA 15 Machine footprint mm 4350 x 3600 Height mm 2740 Machine weight approx. kg 8500 • Windows CE control system (described above) • vertical leveling device • paper filter 2 pcs • deionization resin - 1st fill • deionization resin container • upper and lower nozzles – 2 pcs • diamond guide 2 pcs • diamond guide removal device.brass wire – 5 kg – 1 spool 0.025 mm • digital servo drives • construction made of gray, aged cast iron • corner and angle machining control • triple filtration system • dielectric cooler • anti-collision system on the Z axis • automatic wire threading system with automatic residue removal • linear measurement of the X, Y axes with optical rulers • power transformer – 3x400v/50Hz – 1 pc • SD Master (stabilization discharge unit) • automatic voltage stabilizer • fully CE compliant design • set of tools for machine maintenance • operating, maintenance and machine programming instructions in Czech
seller offer No. resale 32304
