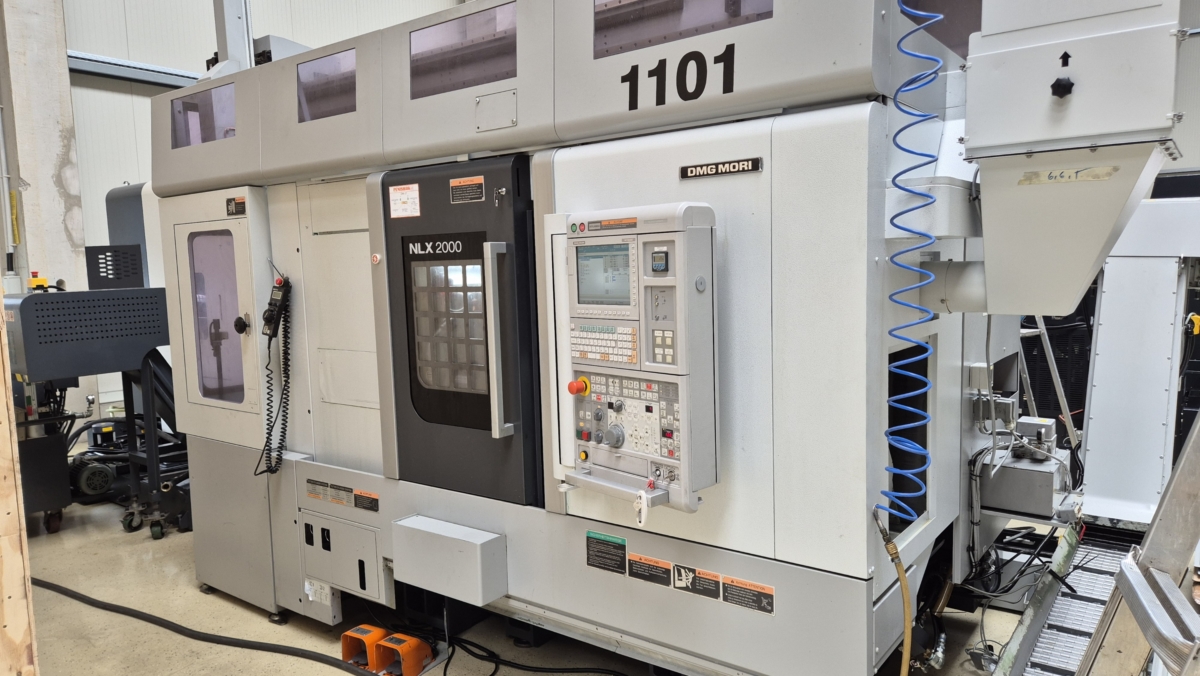

DMG MORI NLX 2000SY/500
maszyny do obróbki metalu / tokarki / Zespoły tokarek (CNC)
turning diameter: 356 mmturning length: 510 mmcontrol: M 730 BM travel -x axis: 260 mmtravel -y axis: -50 / +50 mmtravel -z axis: 590 mmTravel subspindle: (B) 624 mmbar material dia.: 65 mmmain spindle speeds:: 5000 transmission ratio: 2 power capacity: 15 / 11 kWSubspindle spindle speeds: 6000 ...
Producent: DMG MORI
Model:NLX 2000SY/500
Numer pozycji: 169659923
Ilość: 1
Data: 09.06.2026
Rok produkcji: 2014
Lokalizacja: Monheim am Rhein
Cena:
Maszyna w magazynie:Tak
Seller-item-No.:1022-2425
turning diameter: 356 mm
turning length: 510 mm
control: M 730 BM
travel -x axis: 260 mm
travel -y axis: -50 / +50 mm
travel -z axis: 590 mm
Travel subspindle: (B) 624 mm
bar material dia.: 65 mm
main spindle speeds:: 5000
transmission ratio: 2
power capacity: 15 / 11 kW
Subspindle spindle speeds: 6000
power capacity: 11 / 7,5 kW
rapid traverse: (X,Y,Z,B) 30/10/30/30 m/min
total power requirement: kVA
weight of the machine ca.: 6,6 t
dimensions of the machine ca.: 5300 x 2800 x 3000 mm

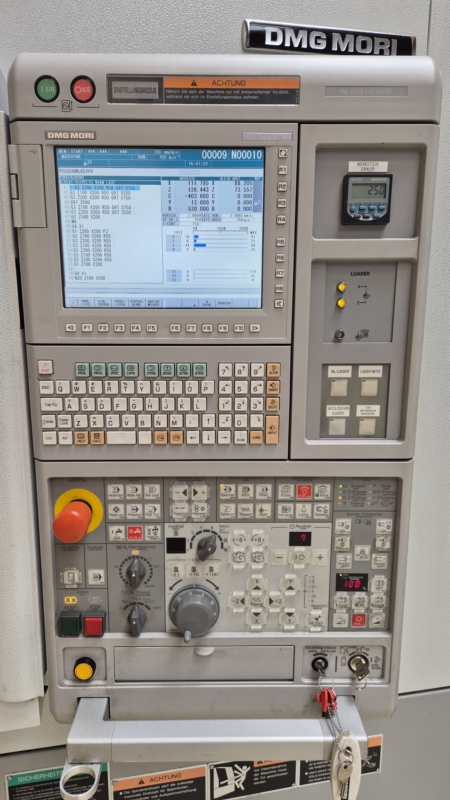

CNC control Mitsubishi M 730 BM

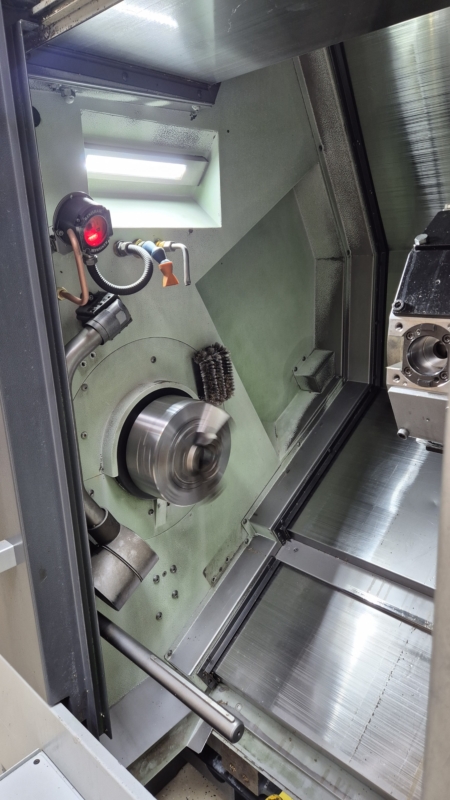

Mainspindle with 3-jaw power chuck KITAGAWA N-08, diameter 210 mm
Subspindle with 3-jaw power chuck HAINBUCH B-TOP 165-43

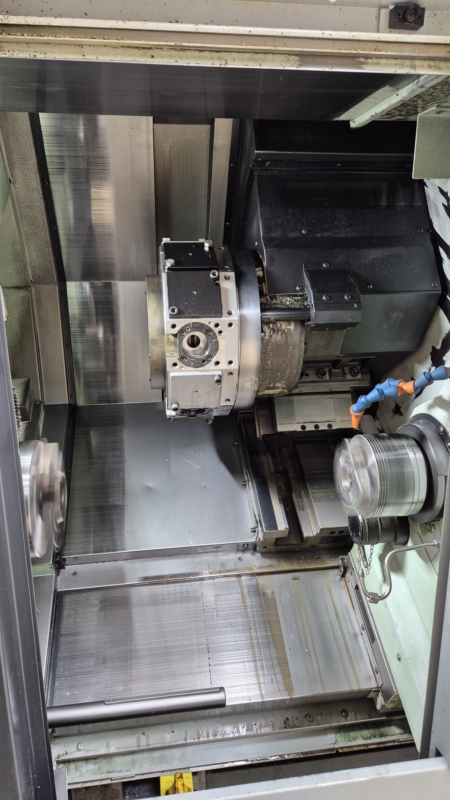

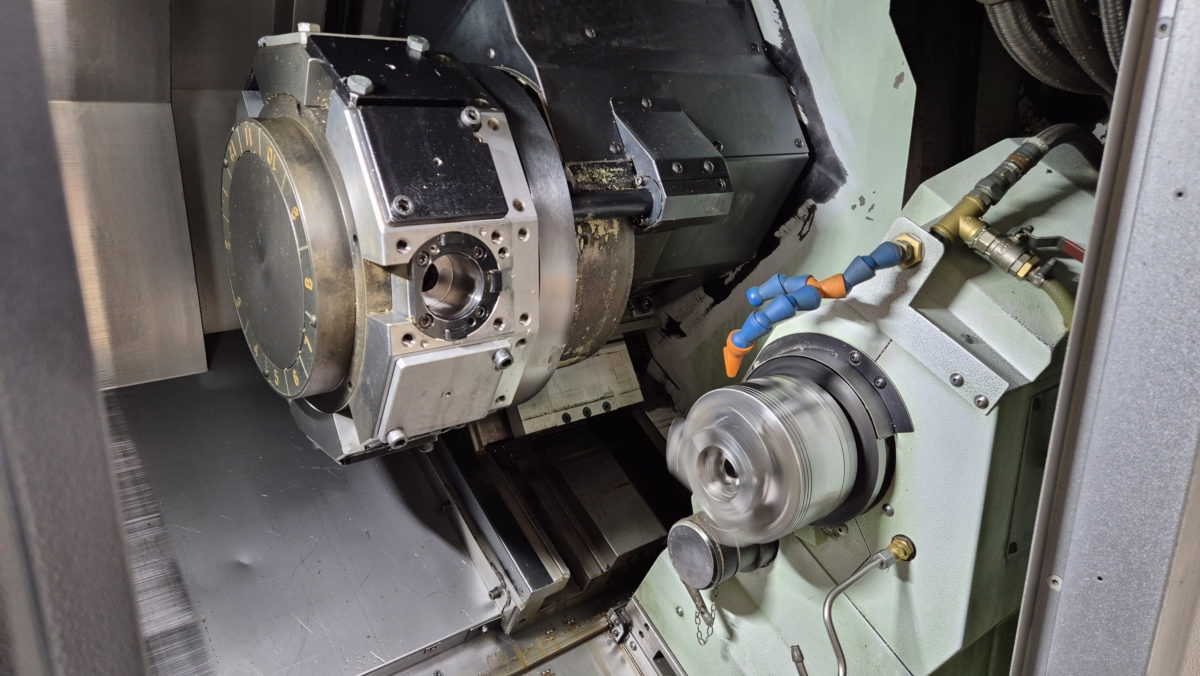

12-station turret, tool spindle speed 10000 rpm, power 5.5/3.7 kW
Y-axis travel
C-axis
High/low pressure chuck system for main and subspindle
MABEO high-pressure pump with 1.5 MPa filter unit
Coolant sprayer on the chuck for main and subspindle
Coolant sprayer for the machine bed cladding
Oil mist separator
Chip conveyor
Renishaw workpiece measuring system with optical signal transmission, subspindle
Cooling of the ball screw in the X-axis
Gantry loader type GX-05, left-hand installation, 14-station storage,
20-pallet workpiece storage,double gripper conveyor, max. loading
weight 5 kg
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
