Zespoły frezarskie MORI SEIKI NH 5000 / 40 DCG

x-travel: 730 mm
y-travel: 730 mm
z-travel: 850 mm
control: MSX 701 IV MAPPS 4

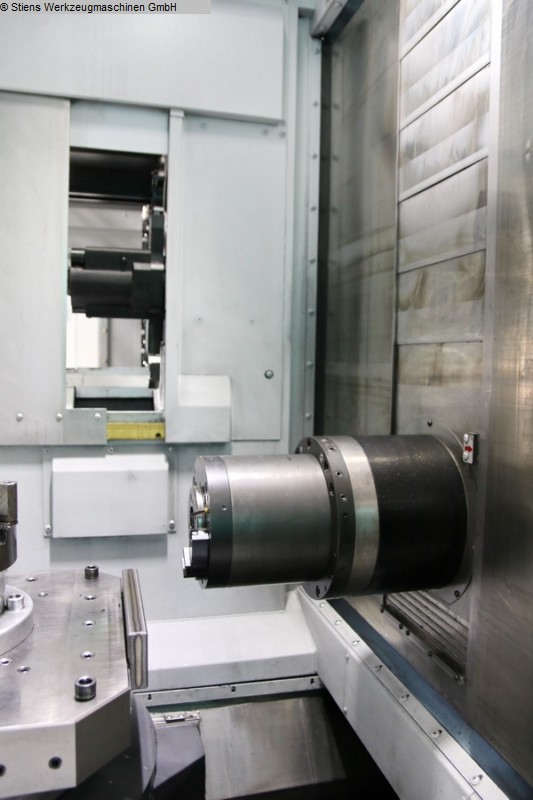

Main spindle::
max. spindle speed: 14.000 min/-1
power capacity - milling spindle: 22 / 18,5 kW
tool taper: HSK A-63
distance ground floor - table top edge: 1.200 mm
distance Spindlenose and center of table: 100 - 950 mm

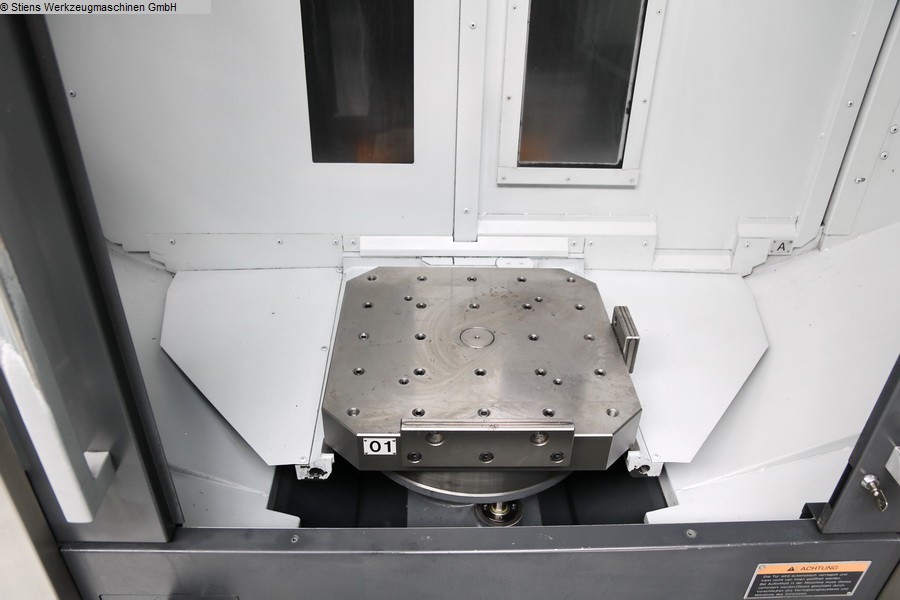

pallet changer::
numbers of pallets: 2
size of pallet: 500 x 500 mm
max. workpiece weight: 500 kg
max. workpiecediameter: 800 mm
max. workpiece height: 1.000 mm
change time of pallets: 7 sec
Indexing-time: 1,57 sec
B-axis (table): 0,001 °
Tool-Presetter::
number of toolpositions: 120 pos.
tool taper: HSK A-63
max. tool diameter: 70 mm
max. tool-dia with free toolbox: 140 mm
max. tool length: 500 mm
max. tool weight: 12 kg
feeds::
rapid traverse: 50 m/min
feed speeds: max. 50.000 mm/min
Tipp feed: 0 - 1.260 mm/min
total power requirement: 51 kVA
weight of the machine ca.: 12 t
dimensions of the machine ca.: 5,5 x 3,0 x 2,8 m
Documents:
Chip conveyor:
Coolantsystem:
high pressure coolant:
paper band filter:
B-axis: 0,001°
tool holder: 130x HSK A-63
pallets: 6x
pallet changer: 2 pos.

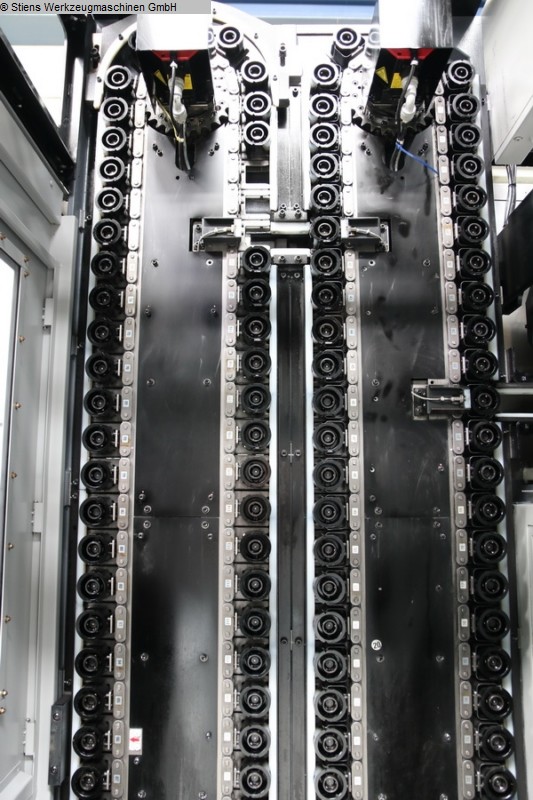

Automatic Tool Changer: 120 pos.
test probe:
CNC - MachiningCenter Horizontal
MORI SEIKI - NH 5000 / 40 DCG

- 2 pos. palletchanger
- 2x mounting towers

- Processing time: approx. 14,200 hours



The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

seller offer No. resale 1039-9485
