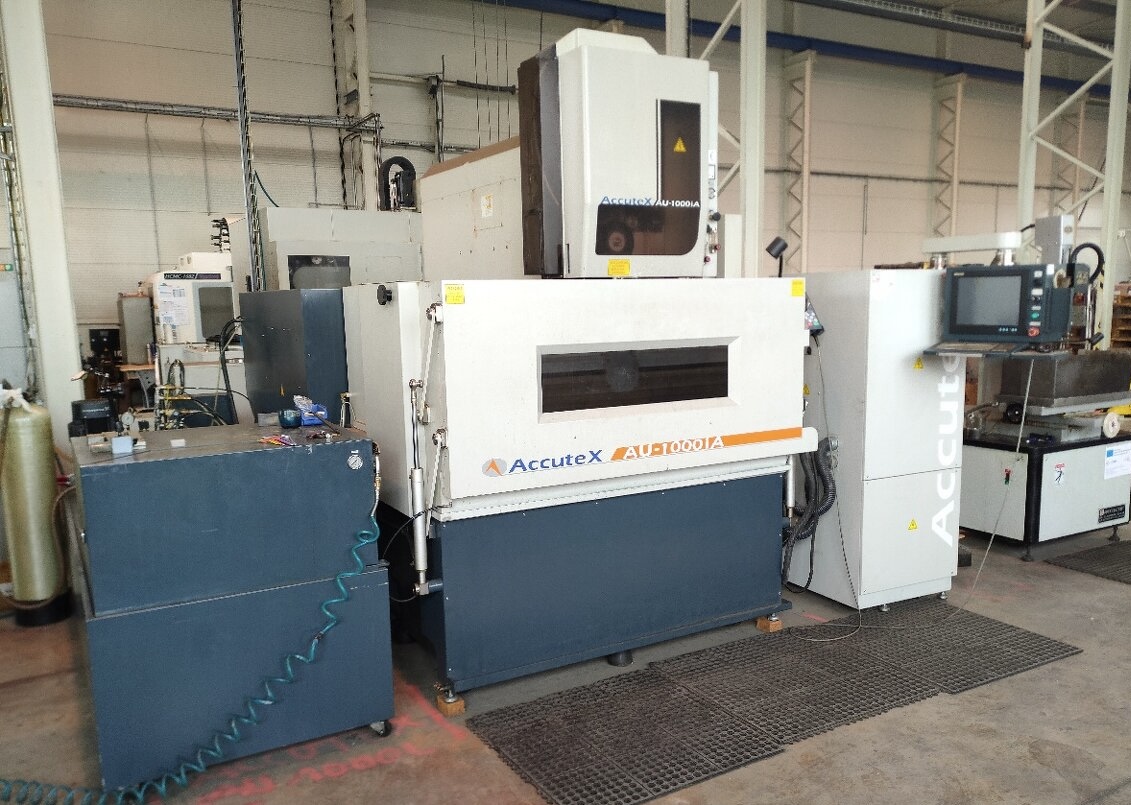

ACCUTEX AU-1000 iA EDM przewodowe
używanyZweryfikowany sprzedawca
Zapytaj o cenę
Bezpośrednio do sprzedawcy
1 / 5
Dane techniczne
· ID 169446673Maszyny używane
- Stan
- używany
- Rok produkcji
- 2015
- Lokalizacja
- Czechia
Identifikation
ProducentACCUTEX
ModelAU-1000 iA
Numer pozycji8850440
Technik
Liczba sztuk1
Opis
Wire cutter
Type: AU-1000 iA
Manufacturer: ACCUTEX
Year: 2015
Max size of the work piece:1330 x 900 x 595 mm
Max. weight of the work piece: 5000kg
X/Y/Z/U/V
800 / 600 / 400 / 150 / 150 mm
Diameter of the wire: 0.15-03 mm
Continuously controlled 4 axes X, Y, U, V
Drive system using AC servo drives
Max. cut cone ± 22.5 °/ 100 mm
Accuracy class of ball screws rpm C1 - the highest
Filter system capacity l Main tank 1630 l, secondary tank (Z=600) 1280 l
Max. cutting speed mm²/min 250
Dielectric conductivity measurement Auto – 5 200 k-cm
Auto dielectric temperature measurement with an accuracy of ± 1°C
Input kVA 15
Weight of the machine: 8500 kg
Windows CE control system
product for vertical alignment
paper filter 2 pcs
deionization resin - 1st filling
container for deionization resin
upper and lower nozzles – 2 pcs
diamond guide 2 pcs
tool for removing the diamond guide
brass wire – 5 kg – 1 coil 0.025 mm
digital servo drives
structure made of gray, mature cast iron
control of machining in the corner and at an angle
triple filter system
refrigerator dielectric
anti-collision system on the Z axis
automatic wire threading system with by automatically removing the rest
linear measurement of X, Y axes with optical rulers
power transformer – 3x400v/50Hz – 1 pc
SD Master (stabilization discharge unit)
automatic voltage stabilizer
Machine in good condition, fully functional, under power
Find more here - .ucymachines/
Contact us at - sales@ucymachines
Type: AU-1000 iA
Manufacturer: ACCUTEX
Year: 2015
Max size of the work piece:1330 x 900 x 595 mm
Max. weight of the work piece: 5000kg
X/Y/Z/U/V
800 / 600 / 400 / 150 / 150 mm
Diameter of the wire: 0.15-03 mm
Continuously controlled 4 axes X, Y, U, V
Drive system using AC servo drives
Max. cut cone ± 22.5 °/ 100 mm
Accuracy class of ball screws rpm C1 - the highest
Filter system capacity l Main tank 1630 l, secondary tank (Z=600) 1280 l
Max. cutting speed mm²/min 250
Dielectric conductivity measurement Auto – 5 200 k-cm
Auto dielectric temperature measurement with an accuracy of ± 1°C
Input kVA 15
Weight of the machine: 8500 kg
Windows CE control system
product for vertical alignment
paper filter 2 pcs
deionization resin - 1st filling
container for deionization resin
upper and lower nozzles – 2 pcs
diamond guide 2 pcs
tool for removing the diamond guide
brass wire – 5 kg – 1 coil 0.025 mm
digital servo drives
structure made of gray, mature cast iron
control of machining in the corner and at an angle
triple filter system
refrigerator dielectric
anti-collision system on the Z axis
automatic wire threading system with by automatically removing the rest
linear measurement of X, Y axes with optical rulers
power transformer – 3x400v/50Hz – 1 pc
SD Master (stabilization discharge unit)
automatic voltage stabilizer
Machine in good condition, fully functional, under power
Find more here - .ucymachines/
Contact us at - sales@ucymachines
