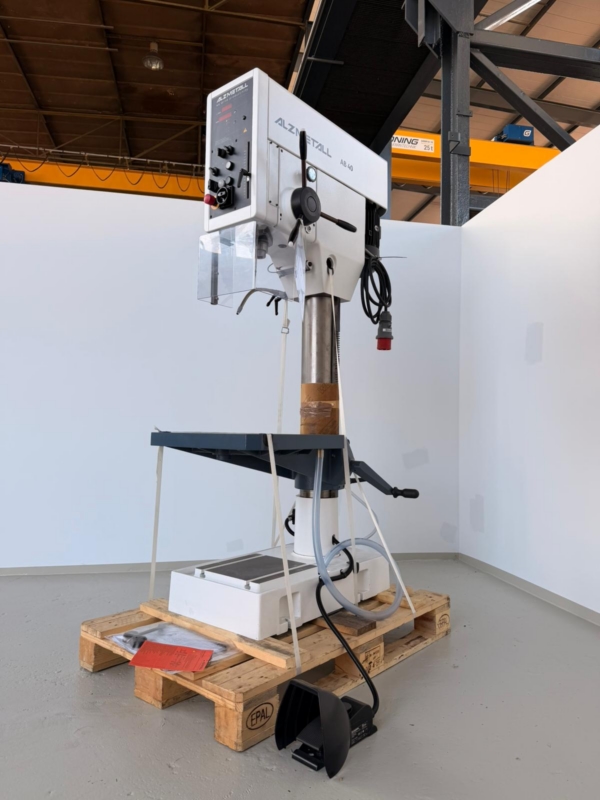

Wiertarki stojakowe ALZMETALL AB 40/SV

: 50 mm
bore capacity in cast iron: 56 mm
: 50 mm
: M 30
: M36
: MK 4
throat: 300 mm
: 615x430 mm
: 70-4000 U/min.
: 2x14x224 mm
Distance spindle/table max.: 147/688 mm
column diameter: 145 mm
spindle stroke: 160 mm
feeds: 0,1-0,4 mm/U
height of the machine: 1885 mm
drive motor: 1,8/2,9 kW
weight of the machine ca.: 530 kg

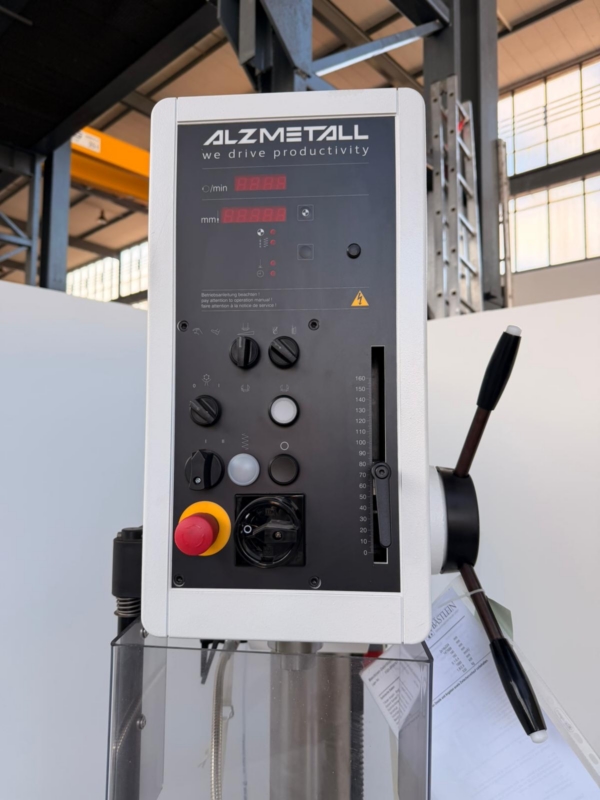

Standard equipment:
- Electromagnetic feed clutch with overload protection and electrical
Cross Handle Switches
- Control and light transformer
- Main switch lockable
- Mushroom pushbutton (latching) for EMERGENCY STOP in the front panel
- Clockwise rotation by contactor control
- Speed adjustment stepless
- Speed display digital
- Speed setting electrically
- Protection IP 54
- Motor insulation class F
- Spindle protection with electrical protection

Pos. 12
LED machine lamp with radially adjustable light beam, supply voltage 24
Volt, protection class IP 65

Pos. 20.1
Tapping device with foot switch, for thread cutting with
Stop, max. 6 threads / min (tapping power dependent on spindle speed)

Pos. 24

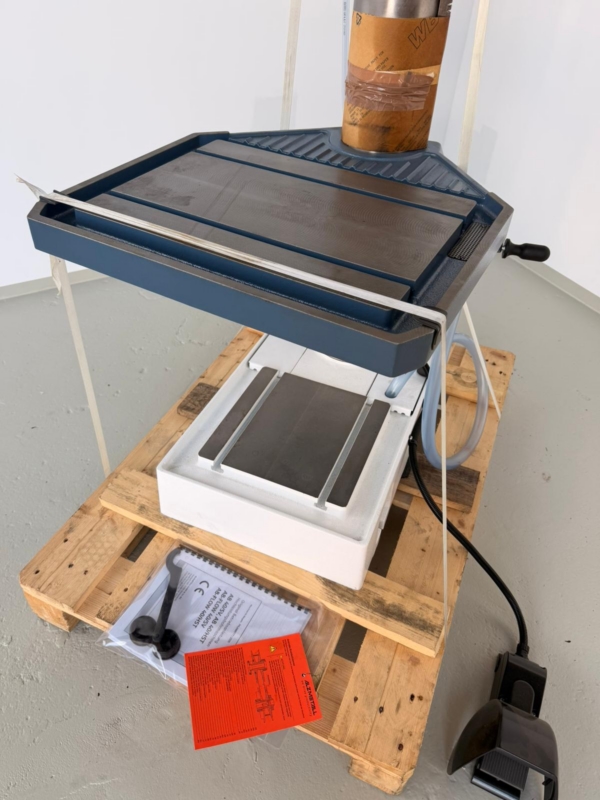

Coolant device A consisting of: Coolant base plate with machined
Workpiece support surface 320x320 mm and 2 flutes, pump with
Motor protection switch and complete fitting



The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

seller offer No. resale 1123-2010761
