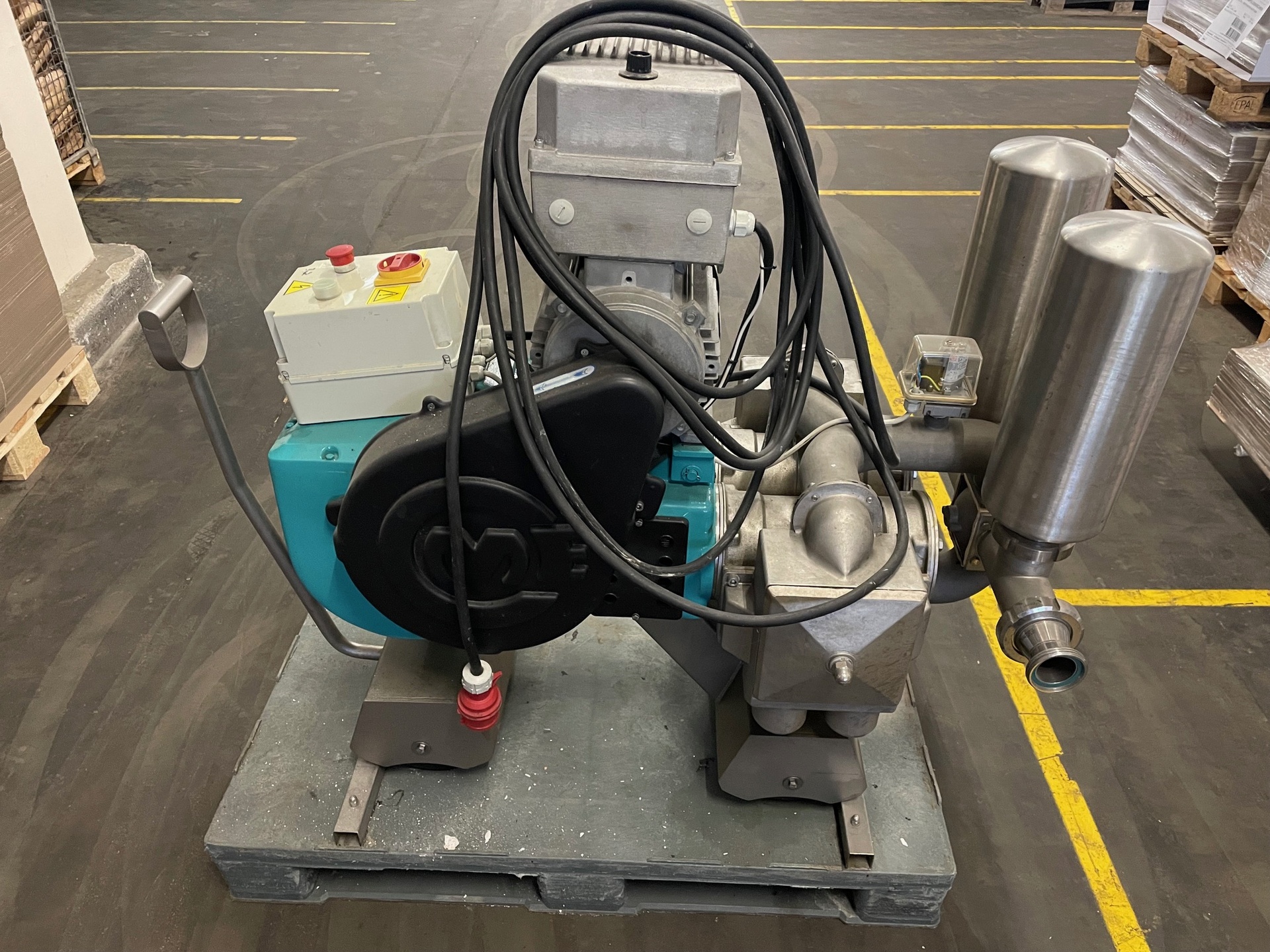

Double-piston pump CME SRL Ideal I360 / Typ 1360
maszyny do przetwarzania żywności / maszyny do napojów
Technical dataManufacturer / model: C.M.E. S.r.l., Ideal I360 / type 1360Serial number / year: 03401 / 2010Flow rate / operating pressure: 36 m³/h at 3 barMaximum pressure: 4 barMotor power / speed: 5.5 kW / 2,900 rpmDimensions (L × W × H): 1,350 × 730 × 960 mmWeight: approx. 325 ...
Producent: CME SRL
Model:Ideal I360 / Typ 1360
Typ maszyny: Double-piston pump
Numer pozycji: 169950103
Ilość: 1
Data: 05.08.2026
Rok produkcji: 2010
Lokalizacja:
Niemcy
Germany
Cena:
Maszyna w magazynie:Tak
Seller-item-No.:18818
Technical data
Manufacturer / model: C.M.E. S.r.l., Ideal I360 / type 1360

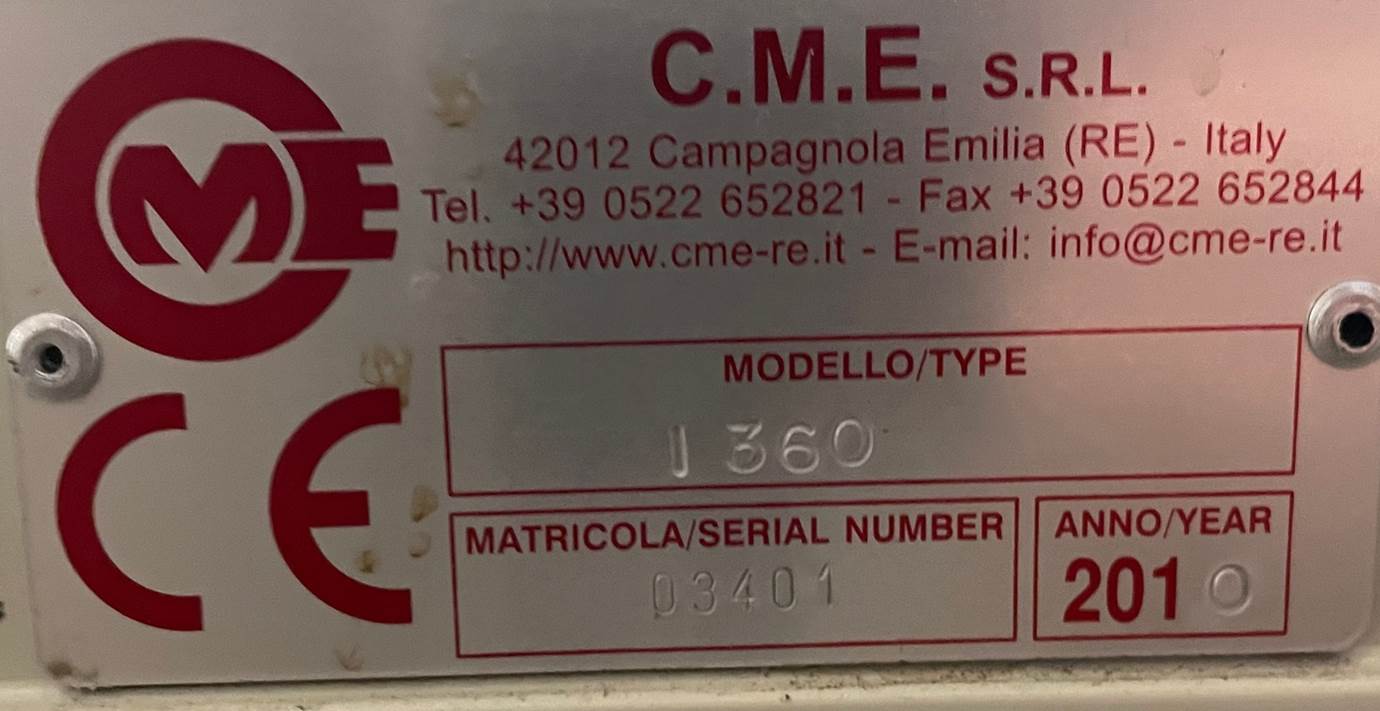

Serial number / year: 03401 / 2010
Flow rate / operating pressure: 36 m³/h at 3 bar
Maximum pressure: 4 bar
Motor power / speed: 5.5 kW / 2,900 rpm
Dimensions (L × W × H): 1,350 × 730 × 960 mm
Weight: approx. 325 kg
Connections: DIN 65 according to DIN 11851
Product-contact materials: AISI 316 stainless steel and NBR elastomers
Suitable media: wine, destemmed grapes, must, vinegar, oil, juices, and fruit/vegetable pulp
Maximum fluid temperature: approx. 70 °C
Performance curves: not available
Spare parts: see the operating and maintenance manual with spare-parts catalogue
Machine-specific operating data according to C.M.E., dimensions according to the Ideal 360” manual.
Manufacturer / model: C.M.E. S.r.l., Ideal I360 / type 1360
Serial number / year: 03401 / 2010
Flow rate / operating pressure: 36 m³/h at 3 bar
Maximum pressure: 4 bar
Motor power / speed: 5.5 kW / 2,900 rpm
Dimensions (L × W × H): 1,350 × 730 × 960 mm
Weight: approx. 325 kg
Connections: DIN 65 according to DIN 11851
Product-contact materials: AISI 316 stainless steel and NBR elastomers
Suitable media: wine, destemmed grapes, must, vinegar, oil, juices, and fruit/vegetable pulp
Maximum fluid temperature: approx. 70 °C
Performance curves: not available
Spare parts: see the operating and maintenance manual with spare-parts catalogue
Machine-specific operating data according to C.M.E., dimensions according to the Ideal 360” manual.
