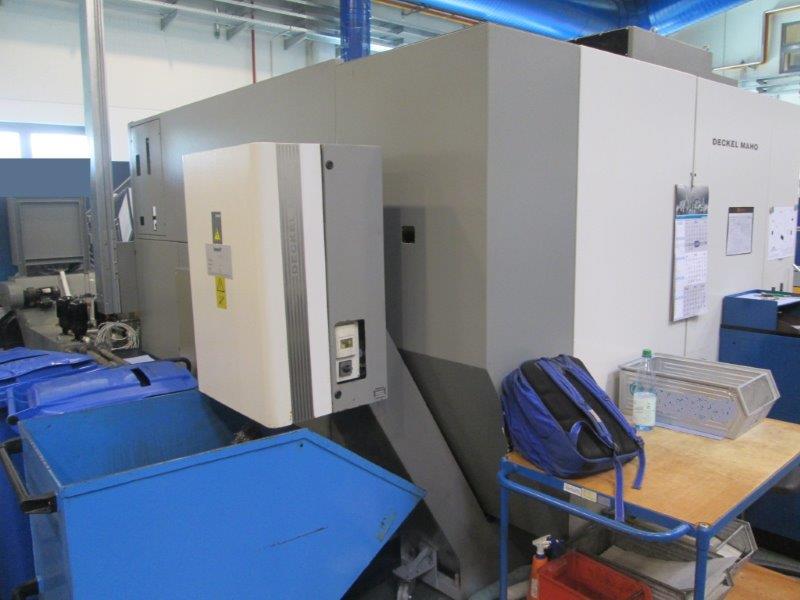

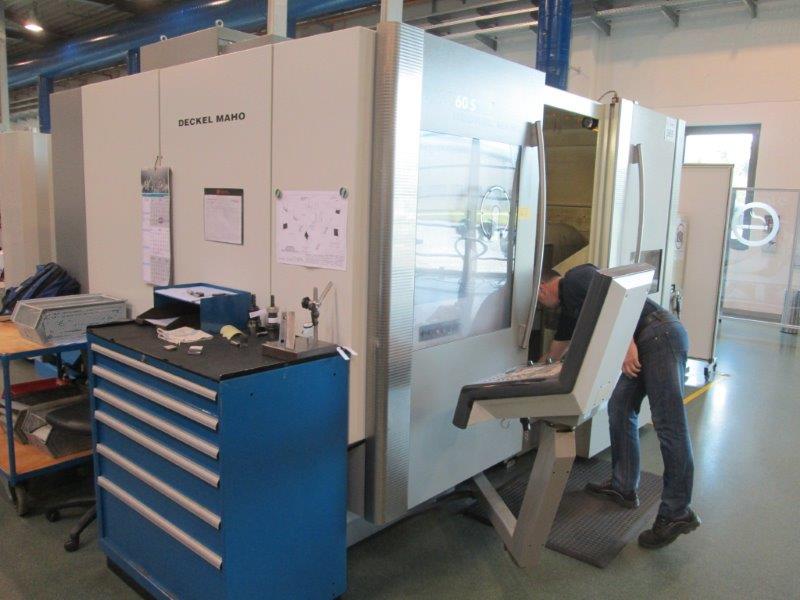

Centra obróbcze sterowane numerycznie (CNC) DECKEL MAHO DMC 60 S
maszyny do obróbki metalu / wiertarkofrezarki i centra obróbcze / Centra obróbcze sterowane numerycznie (CNC)
x-travel: 760 mmy-travel: 460 mmz-travel: 560 mmcontrol: Sinumerik 840 D PL - Shop total power requirement: 19/28 kWweight of the machine ca.: 13 tdimensions of the machine ca.: 12 Lademeter mMovie:https://www.youtube.com/watch?v=W7csFFlodrQ No. 4100Bar machining center 5 axes DECKEL MAHO DMC 60 ...
Producent: DECKEL MAHO
Model:DMC 60 S
Typ maszyny: Centra obróbcze sterowane numerycznie (CNC)
Numer pozycji: 169910207
Ilość: 1
Data: 25.07.2026
Rok produkcji: 2002
Lokalizacja: D-64653 Lorsch
Cena:
Maszyna w magazynie:Tak
Seller-item-No.:2081-4100
x-travel: 760 mm
y-travel: 460 mm
z-travel: 560 mm
control: Sinumerik 840 D PL - Shop
total power requirement: 19/28 kW
weight of the machine ca.: 13 t
dimensions of the machine ca.: 12 Lademeter m
Movie:
https://www.youtube.com/watch?v=W7csFFlodrQ
No. 4100
Bar machining center 5 axes DECKEL MAHO DMC 60 S
Working area: 760 x 460 x 560
Drive: 19/28 kW
Control: Sinumerik 840 D - Powerline Shopmill
NC swivel milling head (B-axis) -120/+30°
60-fold tool magazine with taper cleaning
NC rotary axis (A-axis) with collet chuck Spanntop 65,
Tailstock, hydraulically lowerable,
NC bar loader 1100 mm
Workpiece pick-up device with discharge belt
Production package with coolant tank 600 l,
INTERLIT SKA 200-760 - IKZ 40 bar through spindle center

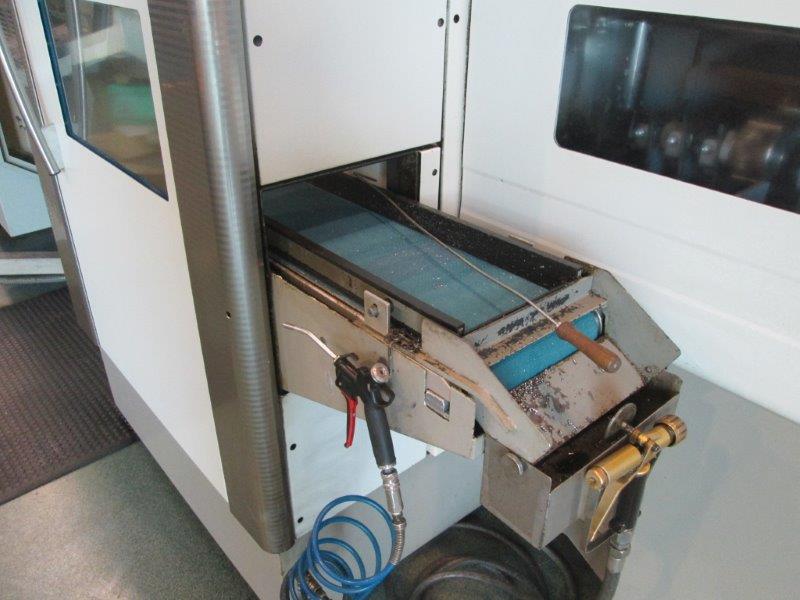

Chip conveyor, Rotating inspection window
BLUM tool measuring system
Oil mist extraction
Operating mode 4
HSK-A 63 spindle Speed range up to 18,000 min-1
Feed rates up to 50 m/min
Rapid traverse 50 m/min
Space requirement approx. 5 x 4 x 2.8 m (see installation plan)
Weight approx. 13 tons
Transport dimensions approx. 12 loading meters with max. width 3 mert or can be
exchanged.
Machine currently not ready for operation (hobbyist machine)
