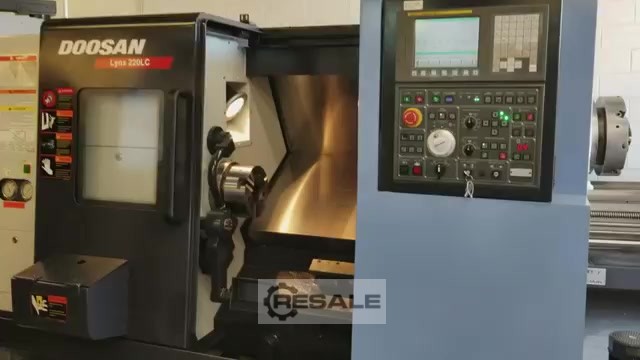

Zespoły tokarek (CNC) DOOSAN LYNX 220 LC

Dimensions:
- Length: 2311.4 mm
- Width: 1600.0 mm
- Height: 1655.0 mm
- Weight: 2900.0 kg
Turning Specifications:
- Turning Length: 305.0 mm
- Turning Diameter: 320.0 mm
- Diameter Above the Bed: 510.0 mm
- Diameter Above Transversing Slide: 290.0 mm
- Length Between Centers: 23.0 mm
Axis Movement:
- X-axis Travel: 175.0 mm
- Z-axis Travel: 330.0 mm
Workpiece Capacity:
- Maximum Workpiece Weight: 130.0 kg
Spindle Details:
- Spindle Bore: 53.3 mm
- Spindle Motor Power: 15.0 kW
- Turning Speed: 6000.0 rpm
Tooling:
- Number of Turrets: 12
- Number of Tools on Turret: 12
- Number of Rotating Tools: 12
Common Applications:
The Lynx 220LC is widely used in precision machining industries for producing complex components with high accuracy.
It is suitable for manufacturing parts in automotive, aerospace, and general engineering sectors.

Turning length 305 mm
Turning Ø 320 mm
Ø above the bed 510 mm
Ø above transversing slide 290 mm
Length between centers 23 mm
Type of CNC Fanuc
X-axis 175 mm
Z-axis 330 mm
Max workpiece weight 130 kg
Spindle taper
Spindle bore 53.3 mm
Number of turrets 12
Number of tools on turret 12
Number of rotating tools 12
Turning speed 6000 rpm
Spindle motor power 15 kW
Tailstock no
Bar feeder no
-------------------
Length x width x height 2311.4 × 1600.0 × 1655.0
Weight 2900 kg
