Systemy okienne GUBISCH Centromat CW 3/8
maszyny do obróbki drewna / maszyny do produkcji okien / Systemy okienne
Tenoning spindle: 2 St.Number of milling agregates: 4 St.Spindle diameter: 50 mmweight: 5500 kgloading dimensions L x W x H: 7500 x 2500 x 2400 mm# 7020 Gubisch CW 3/8 with tooling-------------------------------------Sold on behalf of the customer from the customers location. Machine can be viewed ...
Producent: GUBISCH
Model:Centromat CW 3/8
Typ maszyny: Systemy okienne
Numer pozycji: 170049802
Ilość: 1
Data: 12.10.2026
Rok produkcji: 2001
Lokalizacja: Deutschland
Cena:
Maszyna w magazynie:Tak
Seller-item-No.:1305-7020
Tenoning spindle: 2 St.
Number of milling agregates: 4 St.
Spindle diameter: 50 mm
weight: 5500 kg
loading dimensions L x W x H: 7500 x 2500 x 2400 mm
# 7020 Gubisch CW 3/8 with tooling
-------------------------------------
Sold on behalf of the customer from the customers location. Machine can be viewed in operation
Summary of technical data
(please inquire about any additional accessories included)
-------------------------------------
Cross-cut saw
-------------------------------------
Electronically controlled cross-cut saw
Number of tools: 1 pc.
Spindle speed: 3000 rpm
Spindle diameter: 30 mm
Max. tool diameter: 350 mm
Motor power: 3 kW
Length stop
-------------------------------------
Electronic length stop
2 Tenoning and slotting spindles:
-------------------------------------
Number of tools per spindle: 4/5 pcs.
Spindle stroke: electronic
Spindle speed: 3800 rpm
Spindle diameter: 50 mm
Spindle length: 320 mm
Max. tool diameter: 320 mm
Motor power: 9.2 kW

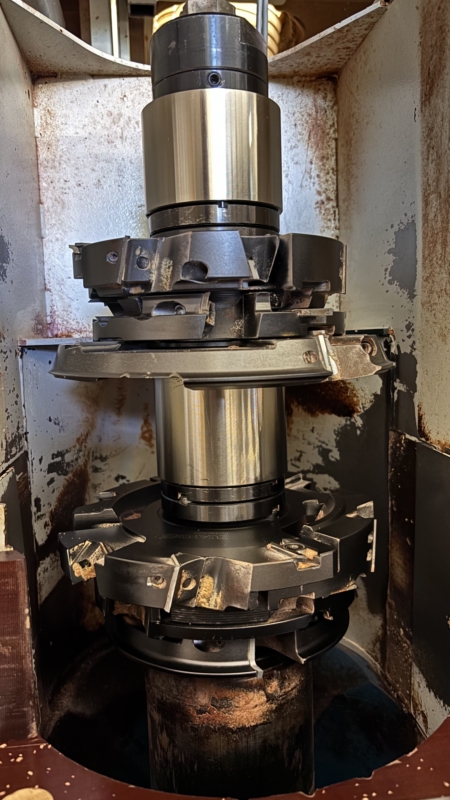

1st Profiling spindle (climb and conventional cutting)
-------------------------------------
Number of tools: 4 pcs.
Vertical spindle stroke (pneumatic): 3 x 80 mm
Horizontal spindle stroke: 80 mm
Spindle speed: 6000 rpm
Spindle diameter: 50 mm
Tool clamping length: 320 mm
Max. tool diameter: 240 mm
Motor power: 9.2 kW
2nd Profiling spindle
-------------------------------------
Number of tools: 4 pcs.
Vertical spindle stroke (pneumatic): 3 x 80 mm
Horizontal spindle stroke: 80 mm
Spindle speed: 6000 rpm
Spindle diameter: 50 mm
Tool clamping length: 320 mm
Max. tool diameter: 240 mm
Motor power: 9.2 kW
3rd profiling spindle
-------------------------------------
Number of tools: 4
Vertical pneumatic spindle stroke: 3 x 80 mm
Horizontal spindle stroke: 80 mm
Spindle speed: 6,000 rpm
Spindle diameter: 50 mm
Tool clamping length: 320 mm
Max. tool diameter: 240 mm
Motor power: 9.2 kW
Additional units
-------------------------------------
Overhead grooving unit
Further features
-------------------------------------
Online-capable for data transfer from window software
Rebating device for tear-free rebating
Double-part package

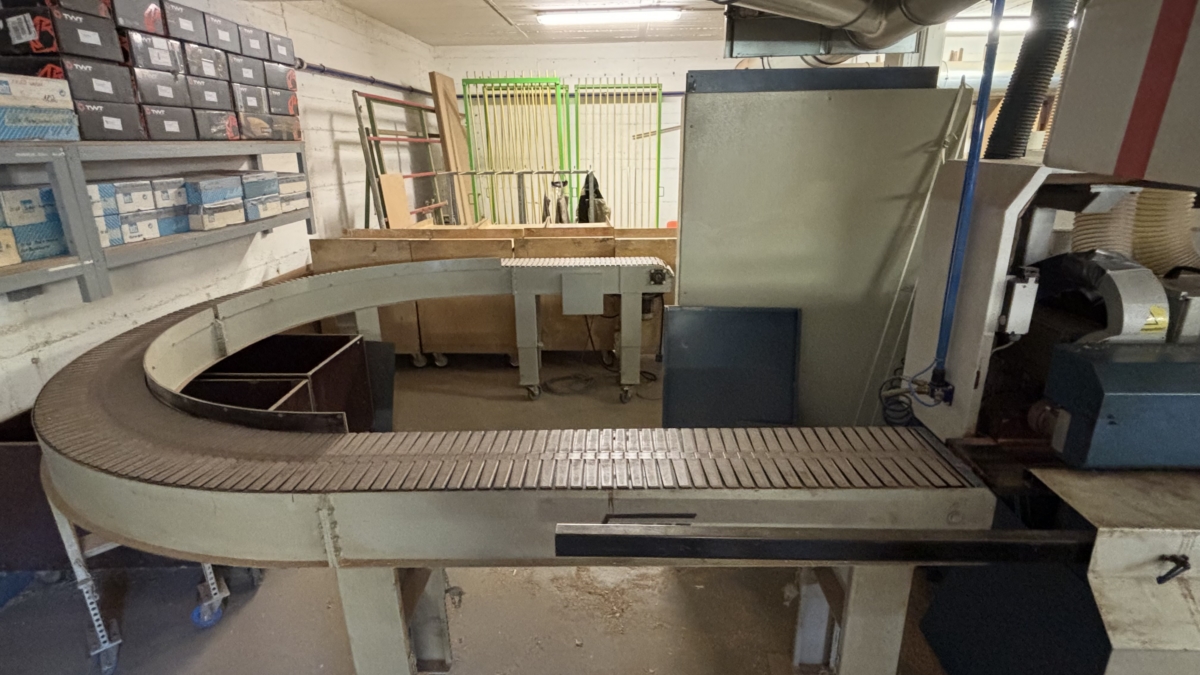

Return conveyor system for one-man operation
Screen-based control
Used window tooling IV 68, 78, 80, 92 (window profiles available on request!)
(Technical specifications according to manufacturer!)
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Number of milling agregates: 4 St.
Spindle diameter: 50 mm
weight: 5500 kg
loading dimensions L x W x H: 7500 x 2500 x 2400 mm
# 7020 Gubisch CW 3/8 with tooling
-------------------------------------
Sold on behalf of the customer from the customers location. Machine can be viewed in operation
Summary of technical data
(please inquire about any additional accessories included)
-------------------------------------
Cross-cut saw
-------------------------------------
Electronically controlled cross-cut saw
Number of tools: 1 pc.
Spindle speed: 3000 rpm
Spindle diameter: 30 mm
Max. tool diameter: 350 mm
Motor power: 3 kW
Length stop
-------------------------------------
Electronic length stop
2 Tenoning and slotting spindles:
-------------------------------------
Number of tools per spindle: 4/5 pcs.
Spindle stroke: electronic
Spindle speed: 3800 rpm
Spindle diameter: 50 mm
Spindle length: 320 mm
Max. tool diameter: 320 mm
Motor power: 9.2 kW
1st Profiling spindle (climb and conventional cutting)
-------------------------------------
Number of tools: 4 pcs.
Vertical spindle stroke (pneumatic): 3 x 80 mm
Horizontal spindle stroke: 80 mm
Spindle speed: 6000 rpm
Spindle diameter: 50 mm
Tool clamping length: 320 mm
Max. tool diameter: 240 mm
Motor power: 9.2 kW
2nd Profiling spindle
-------------------------------------
Number of tools: 4 pcs.
Vertical spindle stroke (pneumatic): 3 x 80 mm
Horizontal spindle stroke: 80 mm
Spindle speed: 6000 rpm
Spindle diameter: 50 mm
Tool clamping length: 320 mm
Max. tool diameter: 240 mm
Motor power: 9.2 kW
3rd profiling spindle
-------------------------------------
Number of tools: 4
Vertical pneumatic spindle stroke: 3 x 80 mm
Horizontal spindle stroke: 80 mm
Spindle speed: 6,000 rpm
Spindle diameter: 50 mm
Tool clamping length: 320 mm
Max. tool diameter: 240 mm
Motor power: 9.2 kW
Additional units
-------------------------------------
Overhead grooving unit
Further features
-------------------------------------
Online-capable for data transfer from window software
Rebating device for tear-free rebating
Double-part package
Return conveyor system for one-man operation
Screen-based control
Used window tooling IV 68, 78, 80, 92 (window profiles available on request!)
(Technical specifications according to manufacturer!)
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
