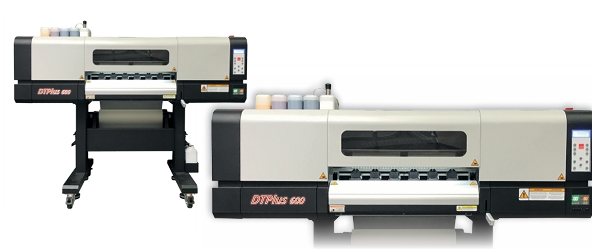

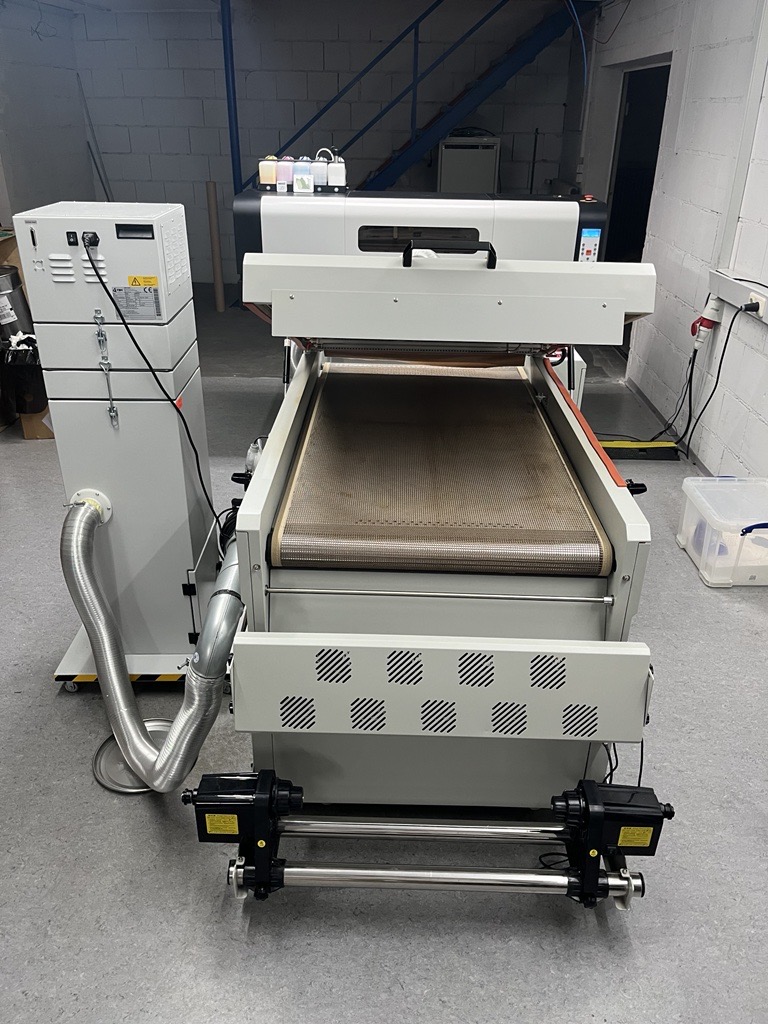

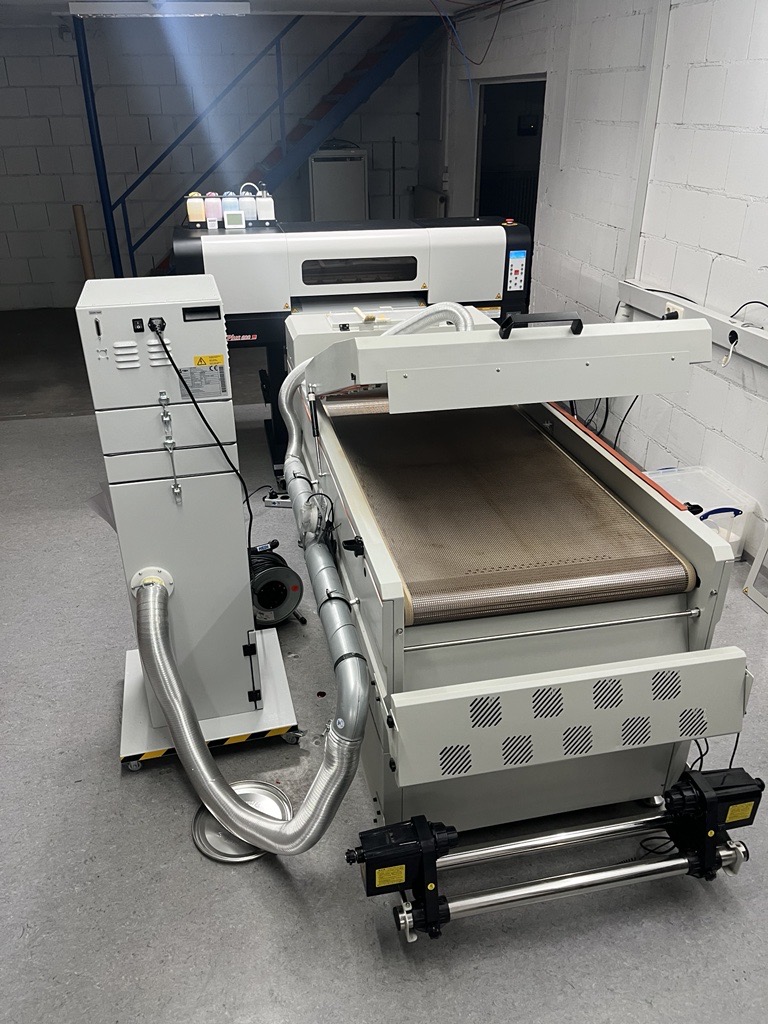

Linia drukarska IVM DTPlus-600-2-XL

Manufacturer: IVM

Model: DTPlus-600-2-XL (2 x Epson i3200 Print Heads)

Year of Manufacture: 2023

Type of Machine : Digital Transfer Printing Line

- Printing Speed:
- 4-PASS: 12 m²/hour
- 6-PASS: 8 m²/hour
- 12-PASS: 4 m²/hour
- Maximum Print Width: 600 mm
- Maximum Print Resolution: 1800 dpi
- Print Thickness: Adjustable from 1.5 mm to 6 mm

Technology and Features:

- Printhead Technology: Epson i3200
- Number of Printheads: 2
- Printhead Spacing: 10 mm
- Ink Colors: CMYK + White
- White Ink Circulation: Automatic
- Color Management System: Standard
- Ink Type: Water-soluble pigment ink
- Ink Supply System: CISS (Continuous Ink Supply System)
- Printing Costs: 1 L white ink = 40 m

Drying and Software:

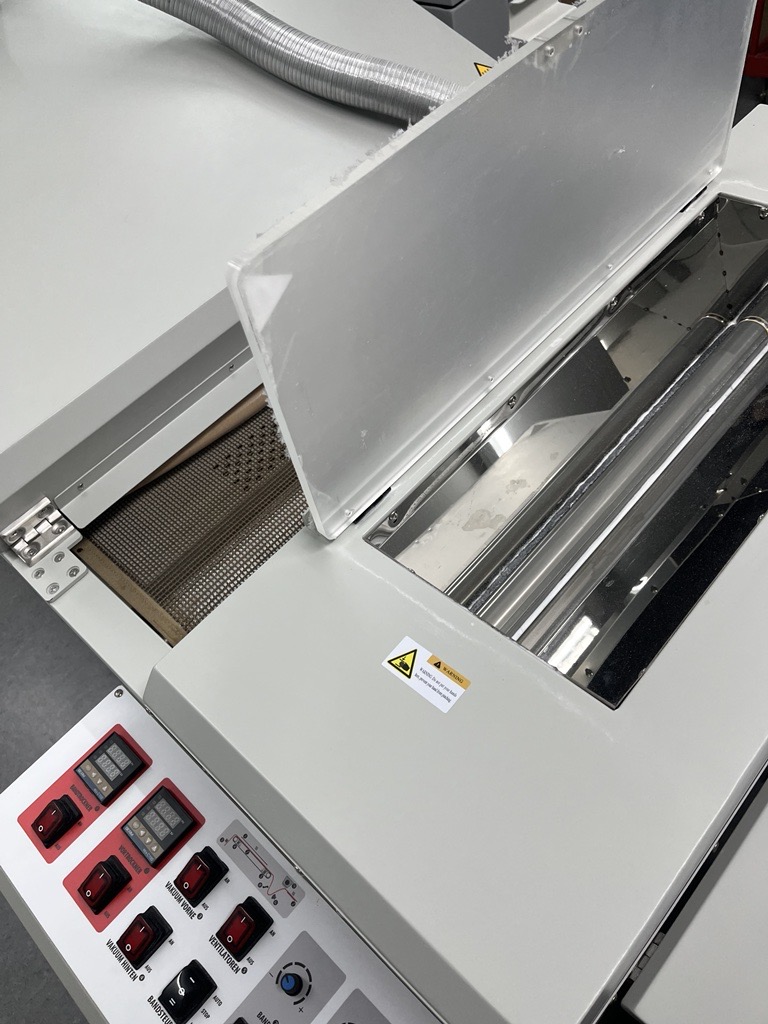

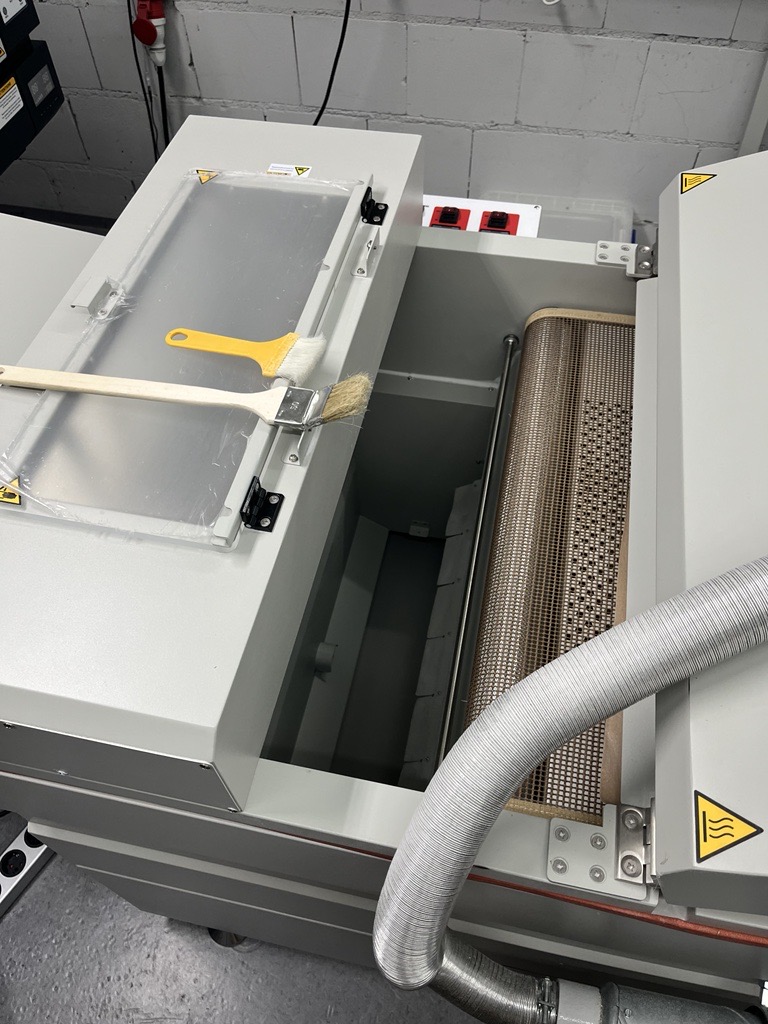

- Drying Method: Air Drying System
- RIP Software: MainTop

Power and System Requirements:

- Power Supply: 220 V
- Power Consumption: 1200 W
- System Requirements: Windows 7 or Windows 10
- U5758834 Interface: USB U5758834 2.0

Operating Conditions:

- Temperature Range: 18–26°C
- Humidity Range: 40–65%

Media and Dimensions:

- Printing Media: PET Transfer Film
- Media Loading: Fixed Paper Feed
- Dimensions (L x W x H): 1785 mm x 790 mm x 1613 mm
- Weight: 180 kg
- Package Weight: 200 kg
- Package Size/Material: 1900 mm x 1000 mm x 760 mm / Wooden Crate
