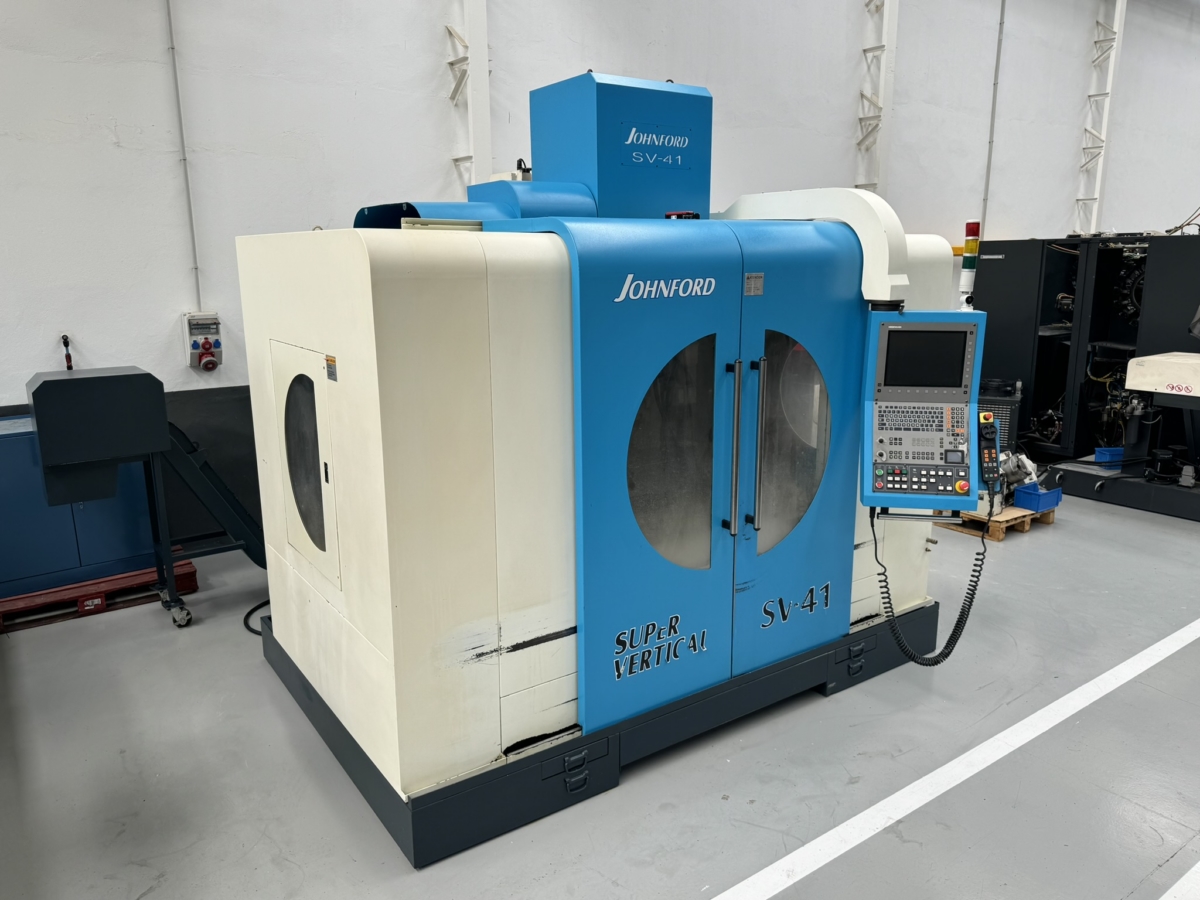

Wiertarki akumulatorowe JOHNFORD SV - 41 + 4/5- Achse

x-travel: 1.050 mm
y-travel: 610 mm
z-travel: 610 mm
control: HEIDENHAIN iTNC 530
Distance between table and spindle: 100-710 mm
table-size: 1.200 x 600 mm
table weight: 1.200 Kg
rapid travel x/y/z: 30.000/20.000 mm/min
feed: 12.000 m/min
spindle taper: BT-40
spindle turning speed range: 60 - 10.000 U/min
spindle drive: 7,5/11 kW
Tools changer: 20 pos.
Internal cooling system: 20 bar
Chip coveyor: 2
handwheel: HEIDENHAIN HR-410
tool diameter: 100 mm
tool length - max.: 320 mm
weight of tools max.: 10 kg
total power requirement: kW
weight of the machine ca.: 7 t
dimensions of the machine ca.: 2.900 x 3.420 x 2.888 m
Complete installation 4th axis - Rotary table Golden Sun CNCT 321 (4th/5th
axis)- Rotary table diameter 200 mm. - Rotary table tailstock - ZF box -
Electrical cabinet air conditioning



The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

seller offer No. resale 1120-327
