Piece MAHLER DLMEb 450/200/5000
maszyny do obróbki metalu / inne maszyny do obróbki metalu / Piece
Producent: MAHLER
Model:DLMEb 450/200/5000
Typ maszyny: Piece
Numer pozycji: 167427319
Ilość: 1
Data: 13.06.2025
Rok produkcji: 2015
Lokalizacja:
Polska
43-346 Bielsko-Bia?a
Cena: 206,000 EUR
Seller-item-No.:D-0007-04

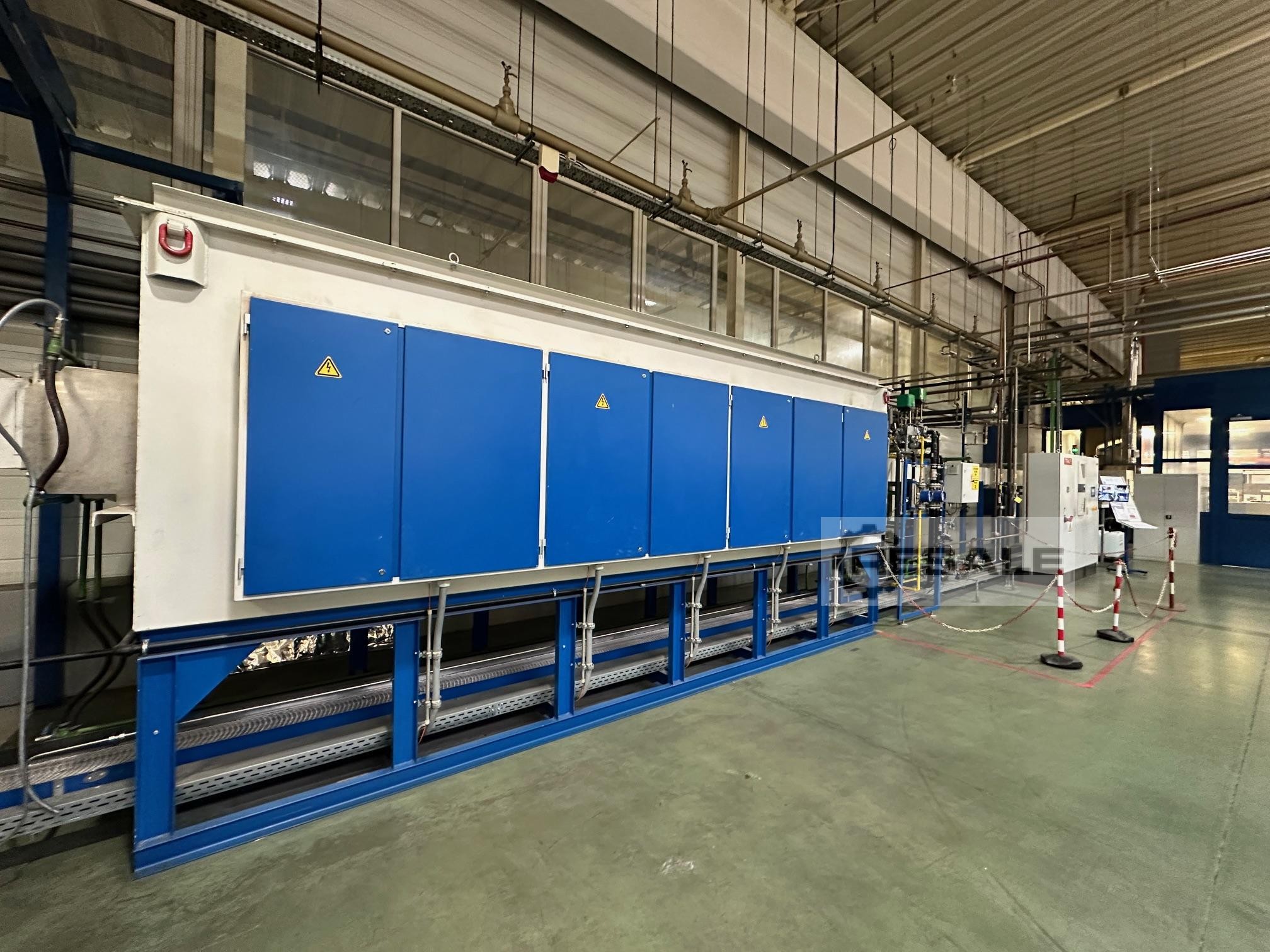

Continious Brazing/Sintering furnace manufactured by Mahler.
Type: Humpback (lower H2 consumption).

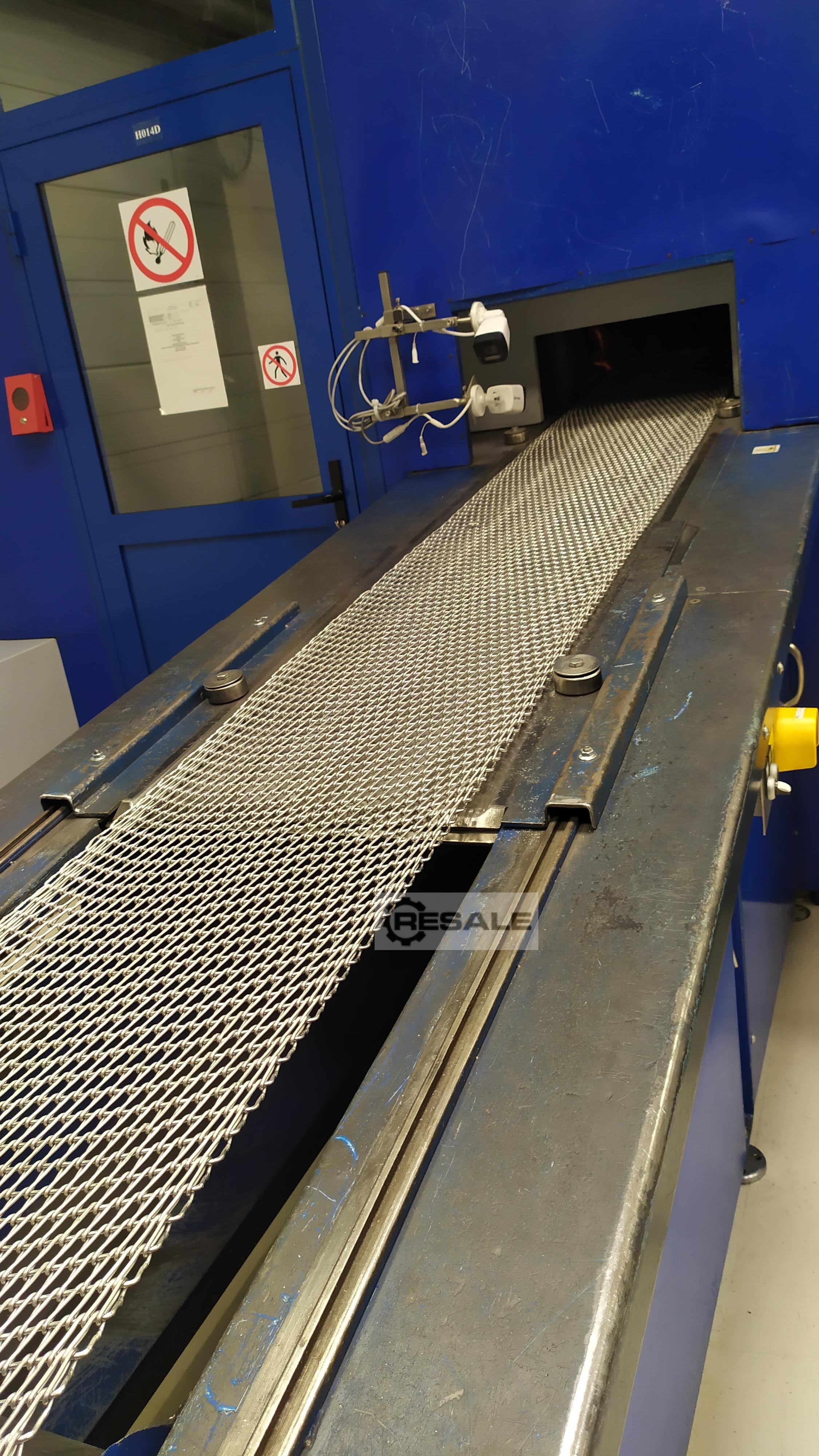

Belt width: 450mm
Clearance above belt: 200 mm
Heating length: 5000mm
Gross throughput: 600 kg/h
Electric heating power: 198 kW
Service temperature: 1140
Adjustable range of belt speed: 100-1000 mm/min
Temperature cotroul groups: 5x
Total length: 30m
width: 1,8m
height: 2,8m

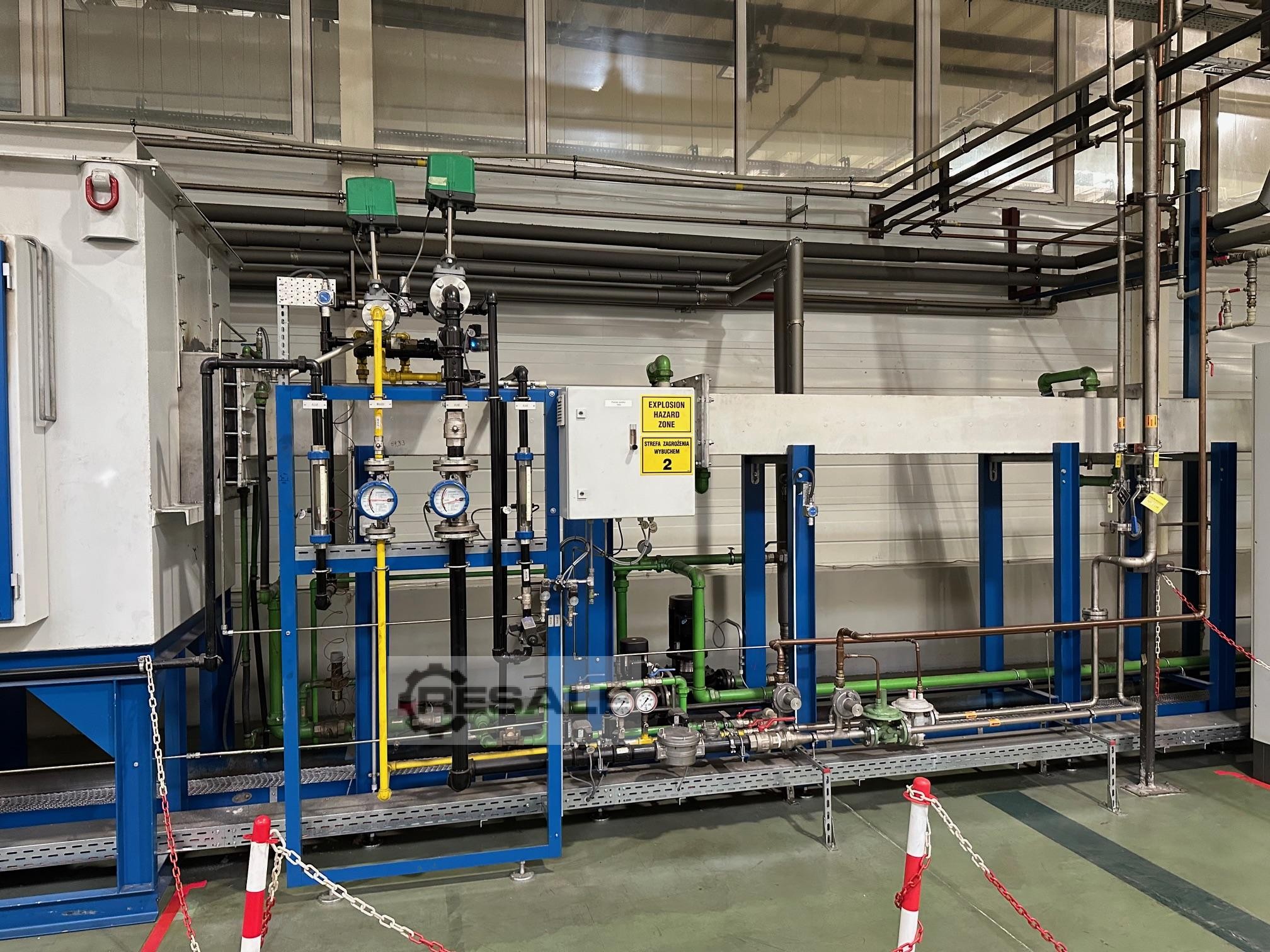

Hydrogen connection: 0,1bar 30Nm3/h (type 3.0)
Nitrogen connection: 0,1 bar 60 Nm3/h (type 5.0)
Exhaust gas : 300 m3/h
Furnace is in use, and was regularly serviced.
In 12. 2024 brick lining, heating elements, thermocouples, mesh belt and muffle was replaced .
Spare parts are available, in case of interest, can be subject of seperate T5663839 agreement.
Offer includes:

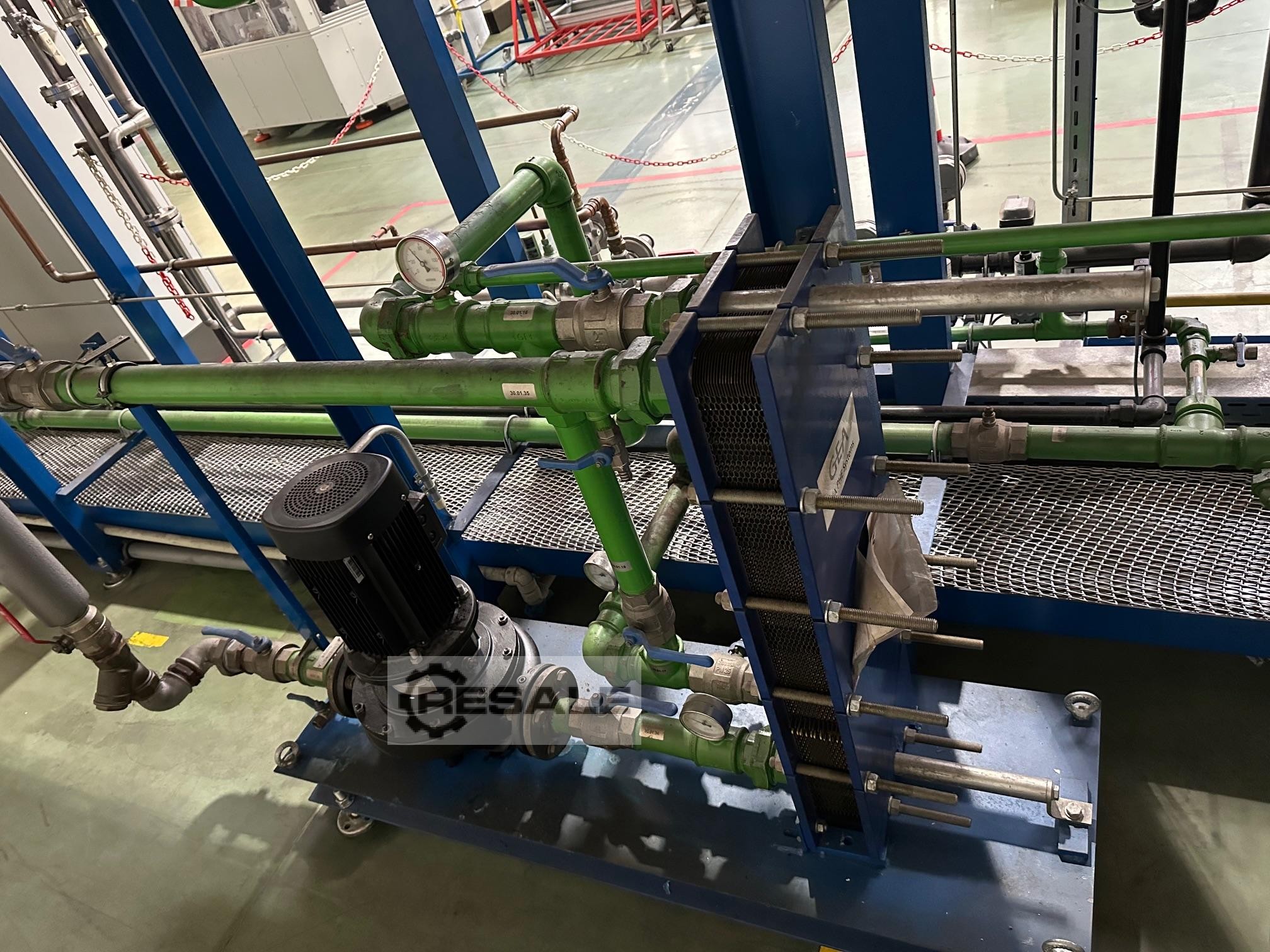

- Water cooling system with glicol base heat exchanger

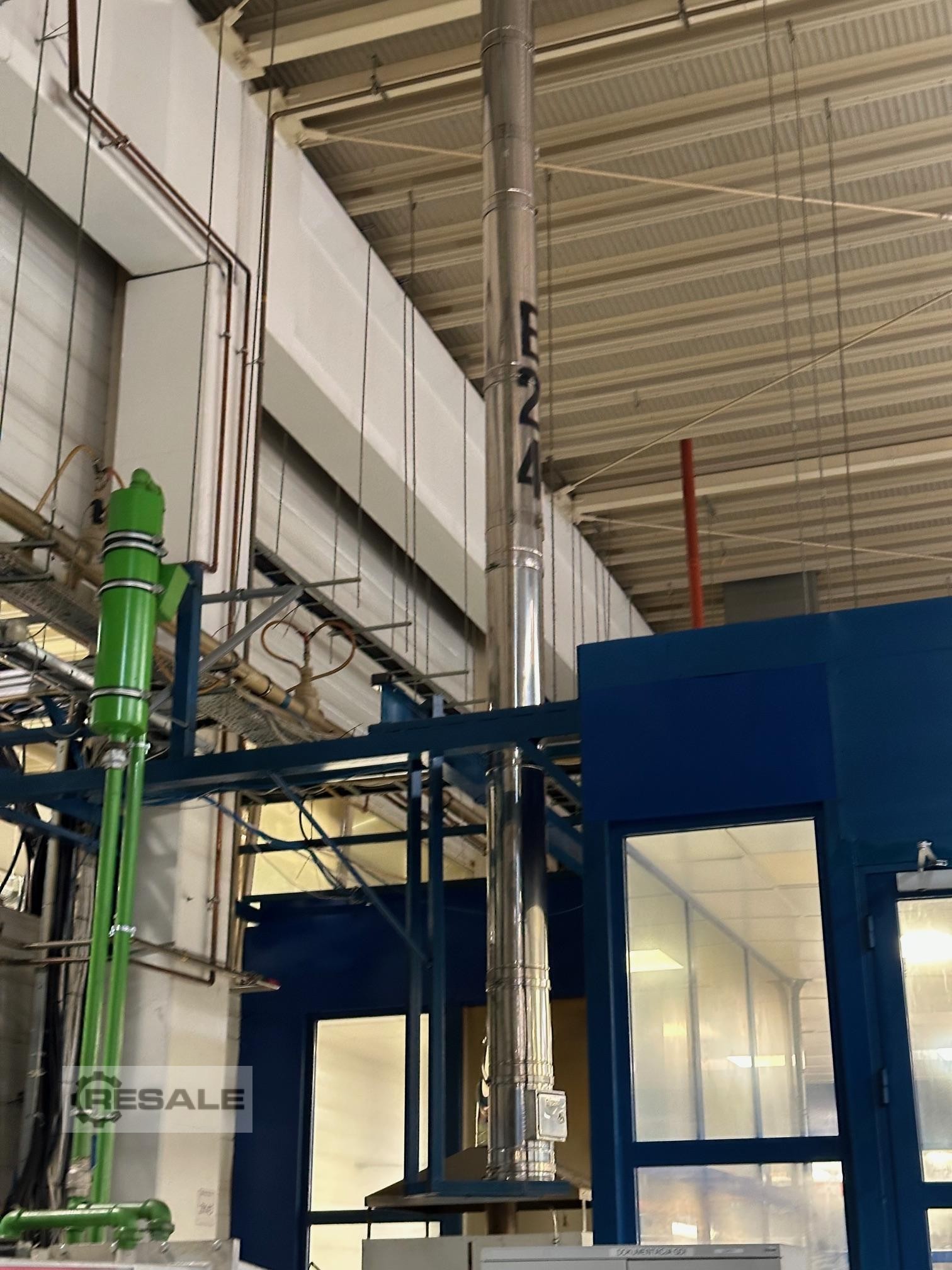

- Exhaust tubes (2x around 5m Stainless steel)

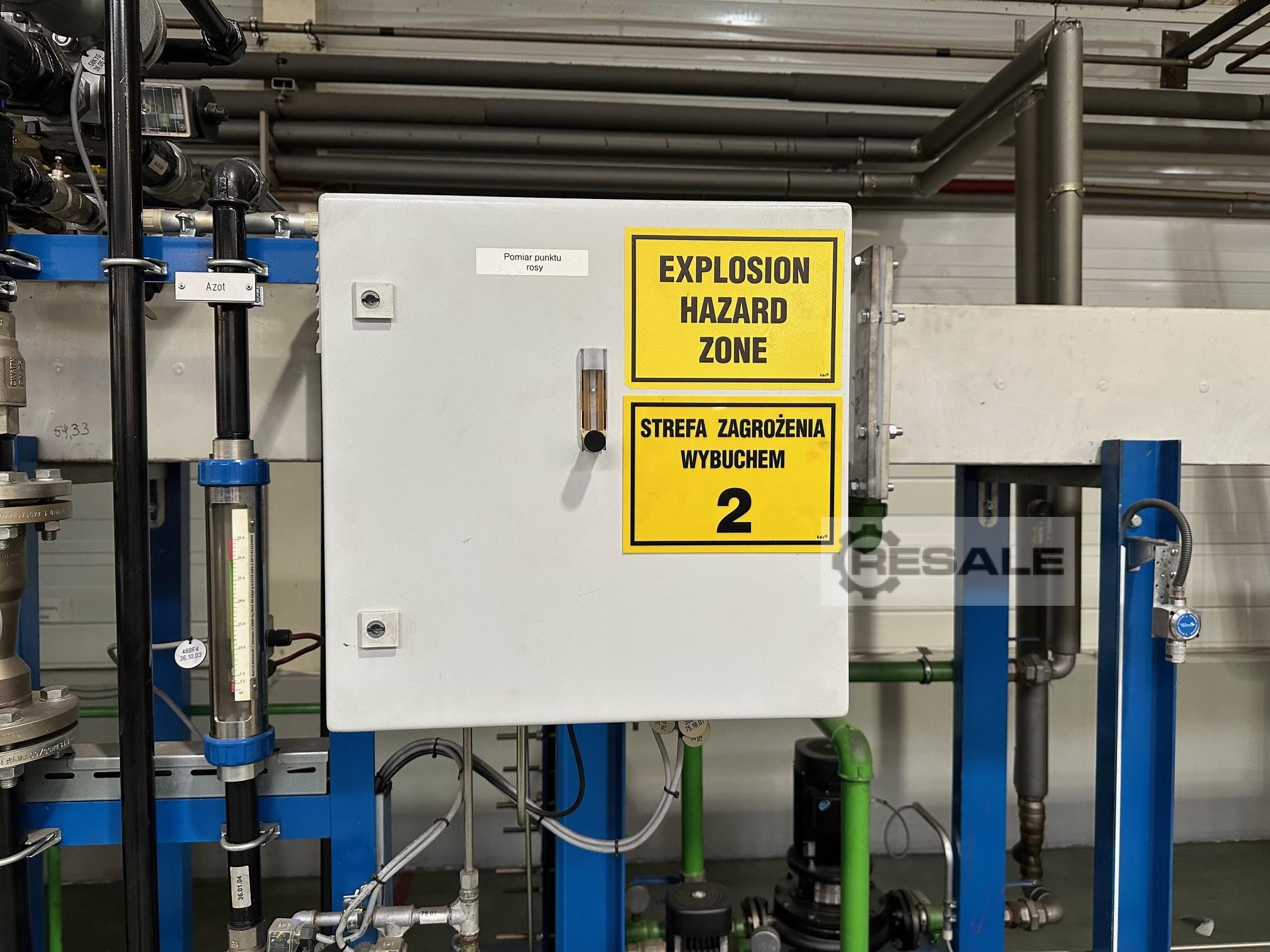

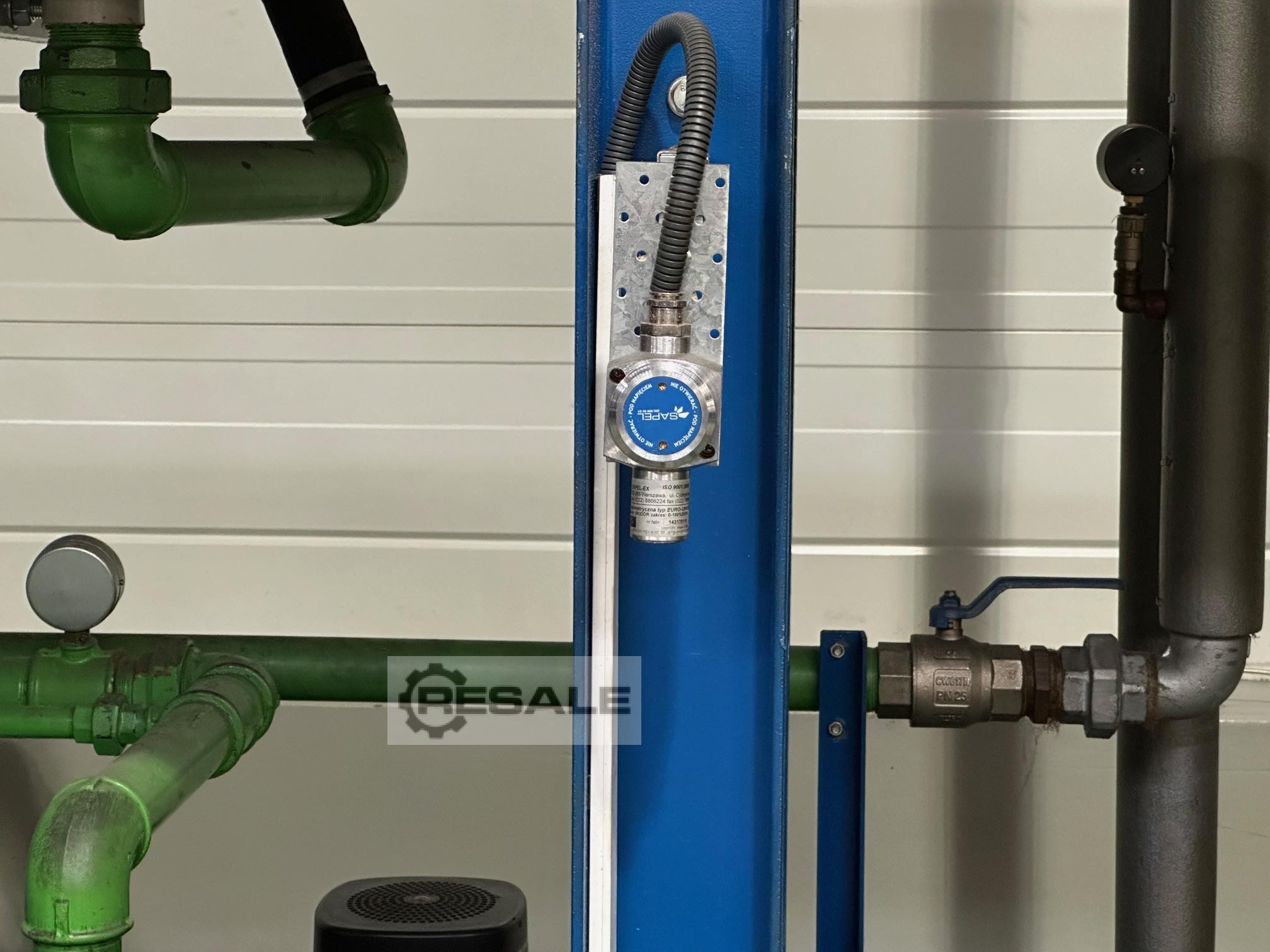

- 5x sensor system to detect explosive concentration of hydrogen
- 2x point dew point measurement system.
In case of interest please don't hesitate to contact with me.
BR
Zdzisław Stojka
Type: Humpback (lower H2 consumption).
Belt width: 450mm
Clearance above belt: 200 mm
Heating length: 5000mm
Gross throughput: 600 kg/h
Electric heating power: 198 kW
Service temperature: 1140
Adjustable range of belt speed: 100-1000 mm/min
Temperature cotroul groups: 5x
Total length: 30m
width: 1,8m
height: 2,8m
Hydrogen connection: 0,1bar 30Nm3/h (type 3.0)
Nitrogen connection: 0,1 bar 60 Nm3/h (type 5.0)
Exhaust gas : 300 m3/h
Furnace is in use, and was regularly serviced.
In 12. 2024 brick lining, heating elements, thermocouples, mesh belt and muffle was replaced .
Spare parts are available, in case of interest, can be subject of seperate T5663839 agreement.
Offer includes:
- Water cooling system with glicol base heat exchanger
- Exhaust tubes (2x around 5m Stainless steel)
- 5x sensor system to detect explosive concentration of hydrogen
- 2x point dew point measurement system.
In case of interest please don't hesitate to contact with me.
BR
Zdzisław Stojka
