maszyny i urządzenia dla inżynierii procesowej używane na sprzedaż (7,653)

General SKU201P112 MakeBOLZ GmbH No.M 1107 T 4402 Year of construction1988 LocationBarneveld Pressure Working pressure jacket3 Bar Main Features MaterialStainless steel Volume11800 Ltr. Motor15 KW Specified Features - Conical mixer Conical mixercheck Capacity11800 l (gross) Largest cone diameter2900 mm Cone height4900 mm Dished topcheck Manholeø 600mm With stainless steel armcheck Top drivecheck Motorscrew +/- 15 kW (400 V) 65 rpm Motorarm 1,5 kW (400 V) 35 rpm Cantilevered screwcheck With jacket1200 l (20m2) Max. temperature100°C MaterialStainless steel 1.4552 Information Floor space3,2 x 3,2 m Total height6,5 m Weight±7000 kg Extra Specifications- used as a cooler. Powdered foodsGeneric medicinesFine chemicalsStarchOther chemicalPlastic & polymersFeed additivesPaper & otherOther pharmaceuticsCosmeticsOrganicsSugarAnimal feedConical mixersOther feedCon ...

General SKUR0371 MakeGPI Tanks & Process Equipment LocationBarneveld CEcheck Type30 m3 vacuum steam distillation vessel Pressure Working pressure1 Bar Vacuum possiblecheck Working pressure jacket16 Bar Vacuum possible jacketcheck Main Features MaterialStainless steel Volume29900 Ltr. Motor7.5 KW Specified Features - Stainless Steel Reactor MaterialStainless steel 1.4404 (316L) Stainless Steel Reactors Reactorcheck Capacity29.900 Ltr (working volume 25.400 Ltr) Vessel sizesdia. 2500x6975mm Dished bottomcheck Dished top sidecheck Top connections(11x) Outletdia. 80mm Internal heating spiral(5x 80 Ltr) Max. temperature-20/+220 Degr. C. With paddle stirrerfabr. Jongia Motor7,5 kW, 400 Volt Ex de IIB T4Gb Atex Information No.317233-10 Year of construction2018 Floorspace2,9x2,9 M Total height8,3 M Weight6.850 KG (vessel weight without agitator) Extra Specific ...

General SKU309N500 LocationBarneveld MakeFalk gmbh & Co. KG No.3304 Material Shell materialStainless steel 1.4571 (316Ti) Cover materialStainless steel 1.4571 (316Ti) Tube materialStainless steel 1.4571 (316Ti) Pressure Working pressure shell1 Bar Working pressure tubes4 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface150.5 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Notified bodyAD2000 Heating surface150,5 m2 Tube capacity830 Ltr U-typecheck Number of tubes:157 Tube diameter25mm Tube length(2x)5900mm Wall thickness tubes2,0mm Max. temperature100 degr.C Shell capacity1530 Ltr Shell diameterdia.711mm Shell length6370mm Wall thickness shell5mm Max. temperature100 gr.C. Shell connectionsdn500, dn80 Cover connections(2x)dn200 Information Year of construction2007 Mounted ...

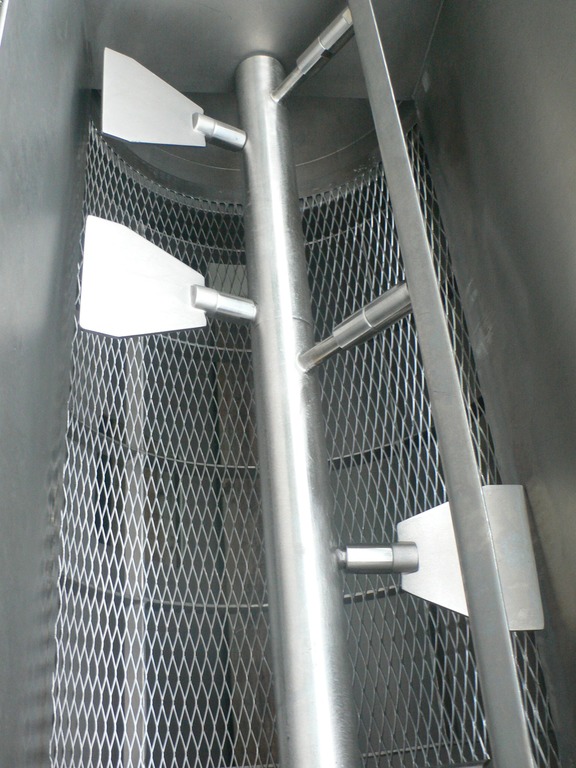

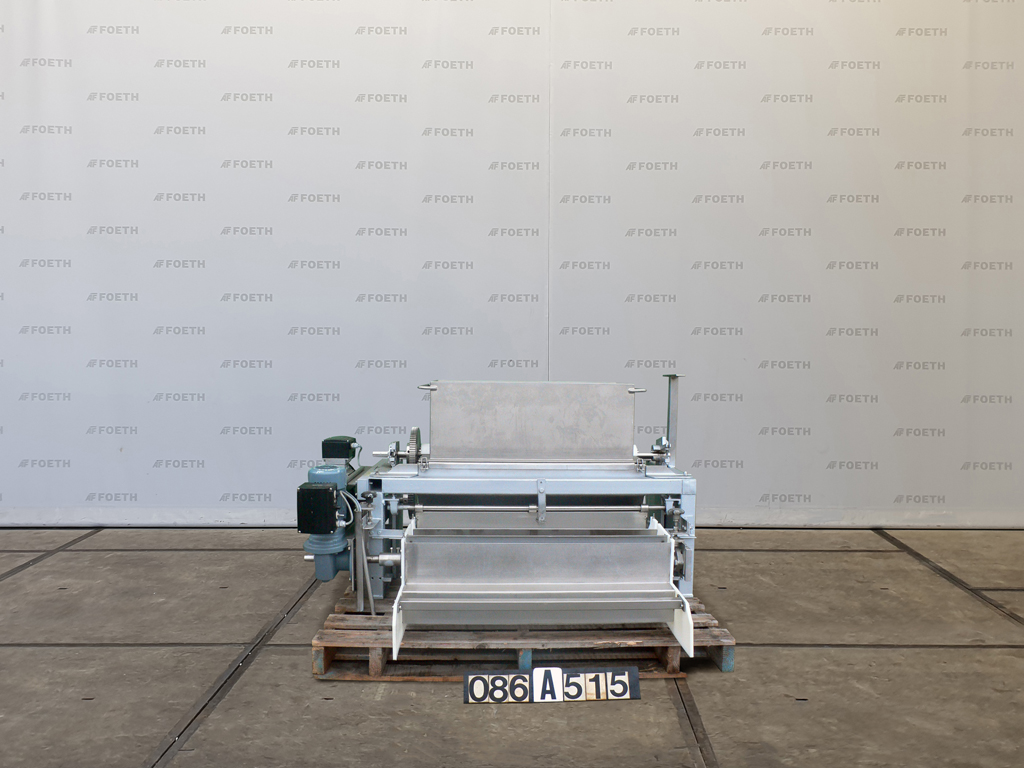

General SKU086A515 Makeunknown LocationBarneveld Main Features MaterialStainless steel Motor0.75 KW Width800 mm Specified Features - Sieve granulator Granulating sieve/Granulator (1x) Rotor sizesdia. 360x800mm Inlet380x810mm Motor0,75 KW, 230/400 Volt MaterialStainless steel Information Floor space1,6x1,2 M Total height0,9 M Weight350 KGSieve granulators-Sieves > Sieve granulatorsBrand > - What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to inspect the machine in Barneveld, The Netherlands. Please visit us in Barneveld for many more machines!

General SKUR0854 MakeZürcher AG (CH) LocationBarneveld Type35 m2 Pressure Working pressure shell6 Bar Working pressure tubes10 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface35 m2 Specified Features - Shell and tube heat exchanger MaterialStainless steel 1.4404 Heat exchangercheck Horizontalcheck Heating surface35 m2 Tube capacity164 ltr U-typecheck Number of tubes:122 Tube diameter16mm Tube lengthca 5400mm Wall thickness tubes1,0mm Max. temperature-30/200 degr.C Shell capacity206 ltr Shell diameter406mm Shell length3312mm Wall thickness shell4mm Max. temperature-30/200 degr. C Shell connectionsDN65 (2x), DN15 (1x) Cover connectionsDN100 (1x), dia. 100mm (1x) Information No.1886 Year of construction2002 Mounted on legscheck Floorspace3,7x0,6 M Total height1,3 M Weight750 KGPowdered foodsGeneric medicinesShell ...

General SKU357X1335 LocationBarneveld CEcheck MakeNetzsch-Condux Main Features Motor3.7 KW Inlet diameter180 mm Specified Features - Jet Mill Motor1,5 kW (380 volt, 12.000 rpm) With variable speed drivecheck Information TypeCGS 16/V-DA DSF / CFS 8/HD S No.7043 Year of construction1998 Mounted on framecheck With switchgearcheck (as is) Floor space4 x 1,4 m Total height4,5 m Weight3300 kg Extra SpecificationsTechnical specs (CGS 16/V-DA DSF — :opposed jet mill): Throughput: ca. 10 kg/h Classifier wheel outer diameter: 120 mm Dip tube diameter: 45 mm Max classifier speed: 12,000 min⁻¹ Max gas temperature: 60 °C Drive power: 1.5 kW Drive speed range: 3,000–12,000 min⁻¹ Inlet diameter: Dip tube diameter 45 mm Technical specs (CFS 8/HD-S — :fine classifier): Min speed: 600 min⁻¹ Max speed: 12,000 min⁻¹ Max operating temperature (T_max): 60  ...

General SKU087F445 MakeUnimix Haagen & Rinau Bremen No.865 3814 Year of construction1988 LocationBarneveld Pressure Working pressure2 Bar Vacuum possiblecheck Working pressure jacket6 Bar Main Features MaterialStainless steel Volume5.5 Ltr. Specified Features - Processing vessel MaterialStainless steel Closed stirring vessel(1x) Capacity5,5 Ltr Vessel sizesdia. 245x165mm (conical vessel) With covercheck With jacket(3 Ltr), With electric heating Max. temperature133/150 Degr. C. (vessel/jacket) With anchor stirrerscraper stirrer (motor 370 Watt) With homogenisercheck Motor900 Watt, 220 Volt (1 Ph) Information With switchcheck Floorspace0,8x0,5 M Total height1,0 M Weight200 KG Technical specs Extra informationconical vesselProcessing vesselsDiscountUnimix H&RProcessing vessels > Processing vesselsDiscountBrand > Unimix H&R What you can expect from Foeth: -- Ma ...

General SKU239T286 LocationBarneveld CEcheck Main Features Motor18.5 KW Length5000 mm Inlet diameter390 mm Specified Features - Horizontal screw conveyor MaterialStainless steel Horizontal conveyor screwcheck Trough-typecheck Diameter700 mm Length5000 mm Shaft diameterdia. 200 mm Pitch500 mm Inletdia. 390 mm Outlet650x400 mm Motor18,5 kW Screw speed33 rpm Height between in- and outlet1500 mm With coverscheck Information MakeGuttridge Mach.No.0580194-7-1 Year of construction2013 Floorspace7,3x1,7 m Total height1,40 m Weight3000 kg Extra SpecificationsSynatel level control, type digimatic, Schmersal sensors Technical specs Extra informationScrew blade thickness 6 mmPowdered foodsGeneric medicinesOintmentsTea, herbs & coffeeFine chemicalsStarchOther chemicalRubberBiotechnologyAgrochemicalsSpicesPlastic & polymersCatalysts & fillersFeed additivesPaper & otherS ...

General SKU098N558 MakeLödige TypeFKM-8000D No.4546 (vessel no. 404) Year of construction1968 LocationBarneveld Pressure Working pressure2 Bar Vacuum possiblecheck Main Features MaterialStainless steel Volume8000 Ltr. Motor33 KW Specified Features - Powder turbo mixer Paddle dryer(1x) Capacity8000 l Trough sizesdia. 1580 x 4000 mm Inletdia. 500mm + dia. 400mm + dia. 200mm Outletdia. 150 mm With jacket(550 l) Max. temperature215°C Motor33 kW, 500 Volt Speed mixing shaft± 23 rpm Powder turbo mixers MaterialStainless steel 1.4541 (321) Information Floorspace6,8 x 1,9 m Total height2,6 m Extra SpecificationsTop connections dia. 500 mm + dia. 400 mm + dia. 200 mm Powdered foodsGeneric medicinesOintmentsFine chemicalsStarchOther chemicalBiotechnologyAgrochemicalsCatalysts & fillersFeed additivesDiscountOther pharmaceuticsCosmeticsSugarPowder turbo mixersAnimal  ...

General SKU088X452 MakeWerner & Pfleiderer TypeUK-14-X (fixed trough) No.89802 Year of constructionunknown LocationBarneveld Main Features MaterialMild steel/Stainless steel Volume200 Ltr. Motor5.5 KW Specified Features - Z-blade mixer Z-blade mixer(1x) Capacity200 Ltr (useful) Trough sizes745x690x570mm With covercheck With jacketcheck Single gearedcheck With adjustable packing glandscheck Motor5,5 KW, 380 Volt (Ex) Bottom outletdia. 75mm (2x) MaterialMild steel, Stainless steel Information Floorspacewithout motor 2,2x1,0 M Total height1,6 M ATEX compatiblecheckPowdered foodsStarchZ-blade mixersOther chemicalRubberPlastic & polymersCatalysts & fillersFeed additivesPaper & otherDiscountDetergent & surf.Other pharmaceuticsCosmeticsSugarLubricants & oleoAnimal feedOther feedSolid pharmaceuticsDyes & pigmentsMinerals & inorganicPaints & coatingsOils & fatWerner & Pf ...

General SKU002H003 MakeMolteni Milano TypeTM 5 - SV No.26-5 Year of construction1979 LocationBarneveld Main Features MaterialStainless steel Volume5 Ltr. Motor0.95 KW Specified Features - Dissolver Dissolvercheck Shaft length200 mm Disc diameter80 mm Motor0,80/0,95 kW, 380 Volt (Ex) With variable speed drivecheck Speed mixing shaft± 400-2400 rpm: without mixing pan With mechanical liftingcheck MaterialStainless steel 1.4301 (304) Information With switchcheck Floorspace0,8 x 0,6 m Total height1,0 m Weight140 kg ATEX compatiblecheck Extra SpecificationsRECONDITIONEDOintmentsDissolversFine chemicalsReconditionedOther chemicalCatalysts & fillersSolventsDetergent & surf.Other pharmaceuticsLubricants & oleoOther feedDyes & pigmentsMinerals & inorganicPaints & coatingsOils & fatMolteniIndustries > Pharmaceutical > OintmentsMixers > DissolversIndustries > Chemical > F ...

General SKU222M099 Makeunknown (manufacturer tag is missing) LocationBarneveld Main Features Motor4 KW Length2900 mm Inlet diameter340 mm Specified Features - Vertical screw conveyor MaterialStainless steel Vertical conveyor screws Horizontal conveyor screwConveying and metering screw (1x) Diameterscrew 1= dia. 340mm, screw 2= dia. 150mm Lengthscrew 1= 2900mm, screw 2= 1350mm Between inlet and outlet± 2200mm Inletdia. 210mm Outletdia. 320mm Motor4,0 KW, 220/380 Volt + 0,75 KW, 400 Volt Information Floorspace4,0x0,5 M Total height1,6 M Weight480 KGPowdered foodsGeneric medicinesOintmentsTea, herbs & coffeeFine chemicalsStarchOther chemicalRubberBiotechnologyAgrochemicalsSpicesPlastic & polymersCatalysts & fillersVertical screw conveyorsFeed additivesPaper & otherSolventsDetergent & surf.Other pharmaceuticsCosmeticsOrganicsE-waste & metalFood additivesSugarLubricants ...

General SKU060C271 MakeHoeksma & Velt Leeuwarden No.907-407 Year of construction1989 LocationBarneveld Pressure Working pressure0.5 Bar Vacuum possiblecheck Working pressure jacket4 Bar Main Features MaterialStainless steel Volume1400 Ltr. Motor4 KW Specified Features - Stainless Steel Reactor Reactor(1x) Capacity1400 Ltr Vessel sizesdia. 800x2750mm Dished bottomcheck Dished top sidecheck Top connections6x dia. 25mm + dia. 80mm Outletdia. 25mm With jacketcheck Max. temperature120 Degr. C. With propellor stirrer(3x Turbine stirrer on one shaft) Motor4,0 KW, 380/660 Volt (Ex) Stainless Steel Reactors MaterialStainless steel 1.4401 (316) Information Floorspace1,2x1,2 M Total height5,0 M Weight1100 KG ATEX compatiblecheckGeneric medicinesOintmentsFine chemicalsOther chemicalRubberAgrochemicalsPlastic & polymersCatalysts & fillersSolventsDiscountDetergent & su ...

General SKUR0366 LocationBarneveld MakeBuss SMS TypeKondensator Pressure Working pressure shell0.5 Bar Vacuum possible shellcheck Working pressure tubes6 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface41.5 m2 Specified Features - Shell and tube heat exchanger MaterialStainless steel 1.4541 (321) Heat exchangercheck Horizontalcheck Heating surface41,5 m2 Tube capacity175 ltr. U-typecheck Number of tubes:40 Tube diameter20x1,5mm Tube length16500mm Wall thickness tubes1,5 Max. temperature100 degr. C Shell capacity700 ltr. Shell diameterdia. 500mm Shell length4660mm Max. temperature200 degr. C Shell connectionsdia. 400mm (2x) Cover connectionsdia. 100mm (2x) Information No.22.11.6351/4 Year of construction1994 Mounted on legscheck Floorspace5,2x0,7 M Total height1,1 M Weight1200 KgPowdered foodsGeneric medicinesSh ...

General SKU355W954 MakeWilhelm Niemann TypeKDV 790 No.871382 Year of construction1987 LocationBarneveld Main Features MaterialStainless steel Volume1000 Ltr. Motor58 KW Specified Features - Dissolver MaterialHard chrome, Mild steel, Stainless steel Dissolvercheck Shaft length800 mm Disc diameter550 mm Between shaft and frame800 mm With covercheck Motor58 kW (380 V, 1485 rpm (Ex)) Speed mixing shaft200-1000 rpm With pans2 Capacity1000l Pan sizes1250x980mm and 1030x930 mm Outlet60 mm With hydraulic liftingcheck Motor1,1kW, 380V (EX) Information With switchcheck Floorspace3,0x1,8 m Total height2,2 m Weight2800 kg ATEX compatiblecheckDissolversFine chemicalsOther chemicalCatalysts & fillersSolventsDetergent & surf.Lubricants & oleoDyes & pigmentsMinerals & inorganicPaints & coatingsWilhelm NiemannMixers > DissolversIndustries > Chemical > Fine chemicalsIndustr ...

General SKU339U843 MakeAPV LocationBarneveld CEcheck TypeAPV 2000 Pressure Working pressure2000 Bar Main Features Capacity11 Ltr./Hr. Motor3 KW Pressure2000 Bar Specified Features - Piston homogeniser MaterialCeramic, Stainless steel 1.4404 (316L), Stainless steel 1.4462 (Duplex2205) Piston homogenisercheck Capacity11 ltr/hour Twin stagecheck Number of pistons:1 Piston diameter10 mm InletDia: 20mm Outletcheck Motor220-240/380-415 volt, 3 kW Information No.5-07-754 Year of construction2005 Mounted on wheelsOn mobile desk With switchcheck Floorspace0,96x0,85 m Total height2,0 m Weight130 kg Extra SpecificationsWith Lista 3-drawers cabinet with tooling, 2x Premex indicators, 2x Multifix speed controllers The machine is equipped with 2 small reactors with a Premex stirring device. There are no nameplates on the reactors. Net volume per reactor is approximately  ...

General SKU227T227 MakeNautamix TypeSerie A842351 No.16341 LocationBarneveld Main Features MaterialStainless steel Volume3000 Ltr. Motor5.5 KW Specified Features - Conical mixer Conical mixercheck Capacity3000 Ltr. Largest cone diameter2200 mm Cone height3600 mm Manholecheck With stainless steel armcheck Motorcheck Cantilevered screwcheck dia. 300x3200 mm MaterialStainless steel Information Total height3,8 mPowdered foodsGeneric medicinesFine chemicalsStarchOther chemicalPlastic & polymersFeed additivesOther pharmaceuticsCosmeticsSugarAnimal feedConical mixersOther feedConfectionerySolid pharmaceuticsDyes & pigmentsMinerals & inorganicPaints & coatingsNautamixIndustries > Food & Feed > Powdered foodsIndustries > Pharmaceutical > Generic medicinesIndustries > Chemical > Fine chemicalsIndustries > Food & Feed > StarchIndustries > Chemical > Other chemicalIndustries >  ...

General SKU355W955 MakeWilhelm Niemann LocationBarneveld TypeKDV 491 V Main Features MaterialStainless steel Volume1000 Ltr. Motor36 KW Specified Features - Dissolver Dissolvercheck Shaft length600 mm Disc diameter500 mm Between shaft and frame700 mm With covercheck Motor36 kW, (380 volt, 1450 rpm, (Ex)) With pans2 Capacity1000 l Pan sizesdia. 1220x980 mm and 1100x950 mm OutletDia. 60 mm With hydraulic liftingcheck Motor1,1kW, 380V, 2840rpm(EX) MaterialHard chrome, Mild steel, Stainless steel Information No.78779 Year of constructionunknown With switchcheck Floorspace3,0x1,8 m Total height2,2 m Weight2800kg ATEX compatiblecheckDissolversFine chemicalsOther chemicalCatalysts & fillersSolventsDetergent & surf.Lubricants & oleoDyes & pigmentsMinerals & inorganicPaints & coatingsWilhelm NiemannMixers > DissolversIndustries > Chemical > Fine chemicalsIndustries  ...

General SKU323S574 MakeConstructiebedrijf Verkouille LocationBarneveld TypeASME VIII DIV1 Pressure Working pressure4 Bar Vacuum possiblecheck Working pressure jacket6 Bar Main Features MaterialStainless steel Volume3000 Ltr. Motor7.5 KW Specified Features - Stainless Steel Reactor MaterialStainless steel 1.4404 (316L) Stainless Steel Reactors Reactorcheck Capacity3000 Ltr. Dished bottomcheck Dished top sidecheck Manholedia. 450 mm Top connectionsDN40, DN50, DN100 OutletDN80 Half coil jacketedcheck Max. temperature-20/160 °C With paddle stirrercheck Motor7,5/4 kW 380 Volt (Ex) Speed mixing shaft197 rpm Information No.A0201 Year of construction2006 Floorspace1,6x1,7 m Total height4,65 mGeneric medicinesOintmentsFine chemicalsOther chemicalRubberAgrochemicalsPlastic & polymersCatalysts & fillersSolventsDetergent & surf.Other pharmaceuticsCosmeticsOrganicsLu ...

General SKU235K162 LocationBarneveld MakeAZO GmbH + Co. Osterburken TypeTrogschnecke TFS-315 G B A21 Main Features Motor2.2 KW Length2000 mm Inlet diameter315 mm Specified Features - Horizontal screw conveyor MaterialStainless steel Horizontal conveyor screw(1x) Trough-typecheck Diameter315mm Length2000mm Between inlet and outlet± 1450mm Shaft diameter90mm Pitch145/290mm Inletdia. 250mm Outlet2x dia. 300mm Motor2,2 KW, 230/400 Volt Screw speed± 76 Rpm With coverscheck Information Mach.No.408691 Year of construction2004 Floorspace2,9x0,5 M Total height0,6 M Weight260 KGPowdered foodsGeneric medicinesOintmentsTea, herbs & coffeeFine chemicalsStarchOther chemicalRubberBiotechnologyAgrochemicalsSpicesPlastic & polymersCatalysts & fillersFeed additivesPaper & otherSolventsDetergent & surf.Other pharmaceuticsCosmeticsOrganicsE-waste & metalFood additivesSugarLubr ...

General SKU362W1148 LocationBarneveld Main Features Motor1.1 KW Length3500 mm Inlet diameter150 mm Specified Features - Vertical screw conveyor MaterialStainless steel 1.4401 (316), Stainless steel 1.4571 (316Ti) Vertical conveyor screwcheck Diameter150 mm Length3500 mm Between inlet and outlet2300 mm Shaft diameter55 mm Pitch90 mm InletDia. 150 mm Outlet200x180 mm Motor1,1 kW, 220-240/380-415 volt, 1400 rpm Screw speed64 rpm With coverscheck Information MakeUnknown Year of constructionunknown Floorspace4,30x0,70 m Total height0,50 m Weight200 kgPowdered foodsGeneric medicinesOintmentsTea, herbs & coffeeFine chemicalsStarchOther chemicalRubberBiotechnologyAgrochemicalsSpicesPlastic & polymersCatalysts & fillersVertical screw conveyorsFeed additivesPaper & otherSolventsDetergent & surf.Other pharmaceuticsCosmeticsOrganicsE-waste & metalFood additivesSugarLubrican ...

General SKU212U184 LocationBarneveld Main Features Motor5.6 KW Length2870 mm Inlet diameter350 mm Specified Features - Horizontal screw conveyor MaterialStainless steel 1.4301 (304) Horizontal conveyor screwcheck Tube-typecheck Diameter390 mm Length2870 mm Between inlet and outlet2400 mm Shaft diameter160 mm Pitch155 mm Inlet350 mm Outlet350 mm Motor5,6 kW 380 Volt (Ex) Screw speed120 rpm Information Makeunknown: missing type plate Floorspace4,4x0,7 m Total height0,7 m Weight820 kg ATEX compatiblecheckPowdered foodsGeneric medicinesOintmentsTea, herbs & coffeeFine chemicalsStarchOther chemicalRubberBiotechnologyAgrochemicalsSpicesPlastic & polymersCatalysts & fillersFeed additivesPaper & otherSolventsDetergent & surf.Other pharmaceuticsCosmeticsOrganicsE-waste & metalFood additivesSugarLubricants & oleoDairyAnimal feedOther feedConfectionerySolid pharmaceuticsBe ...

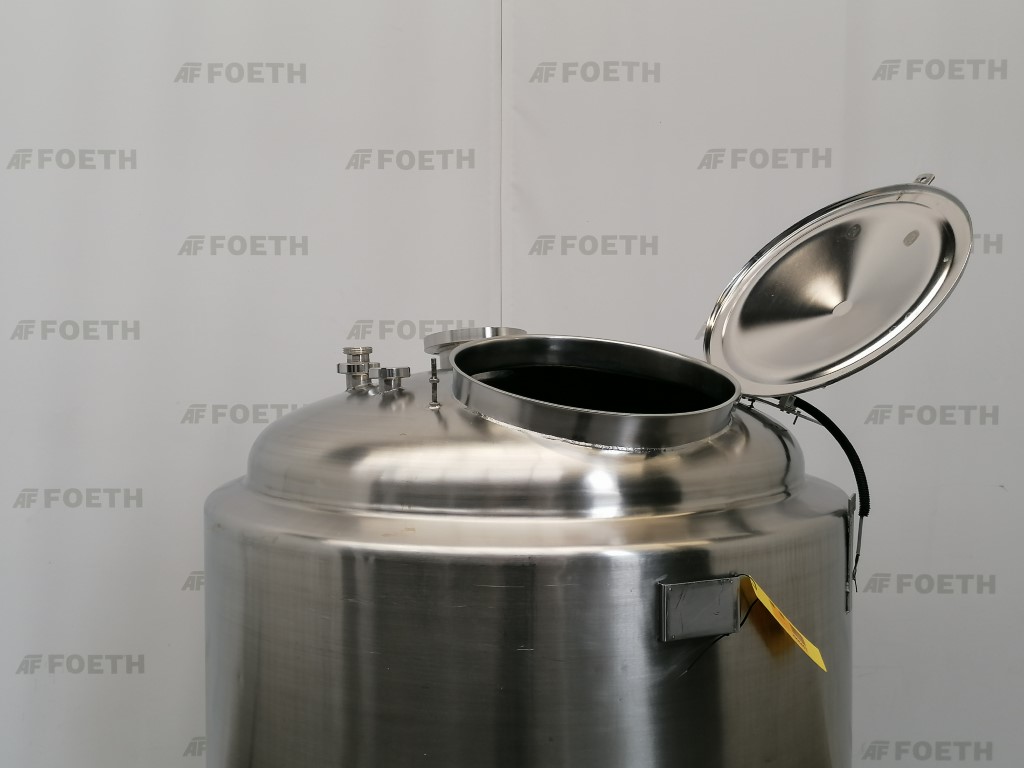

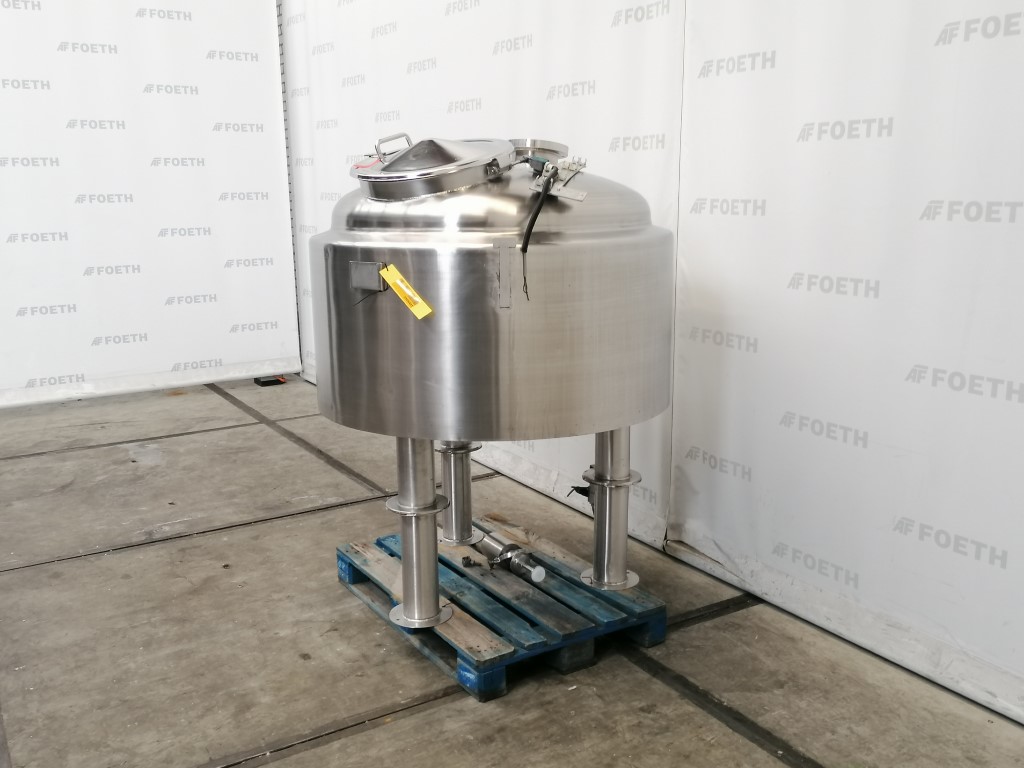

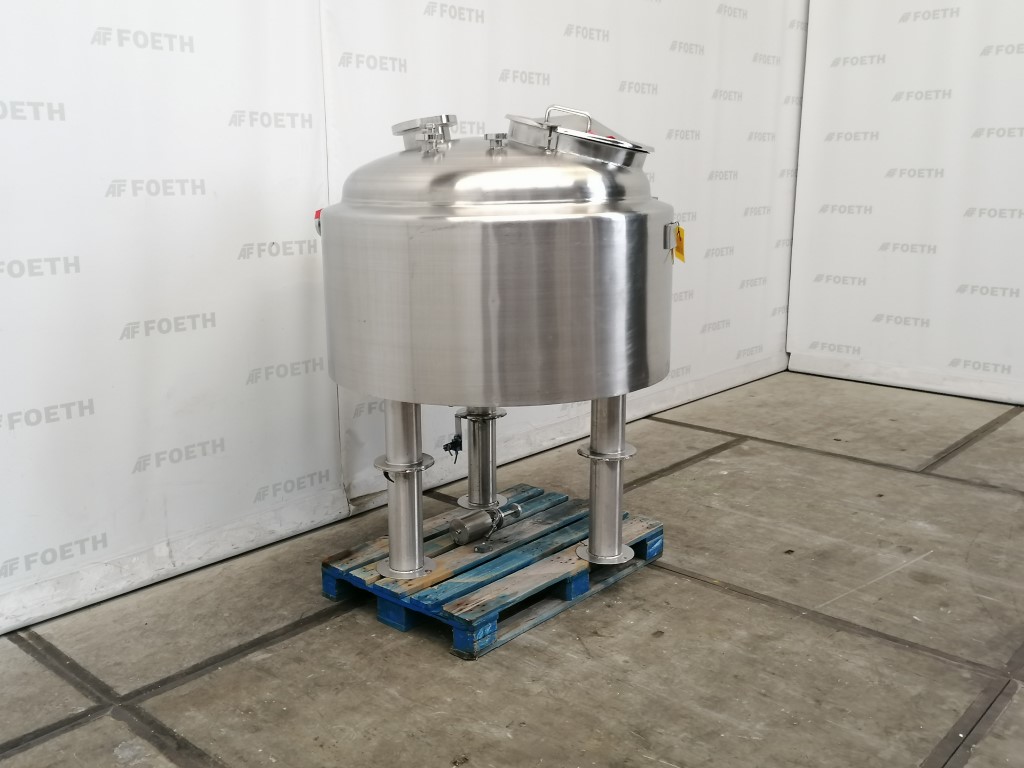

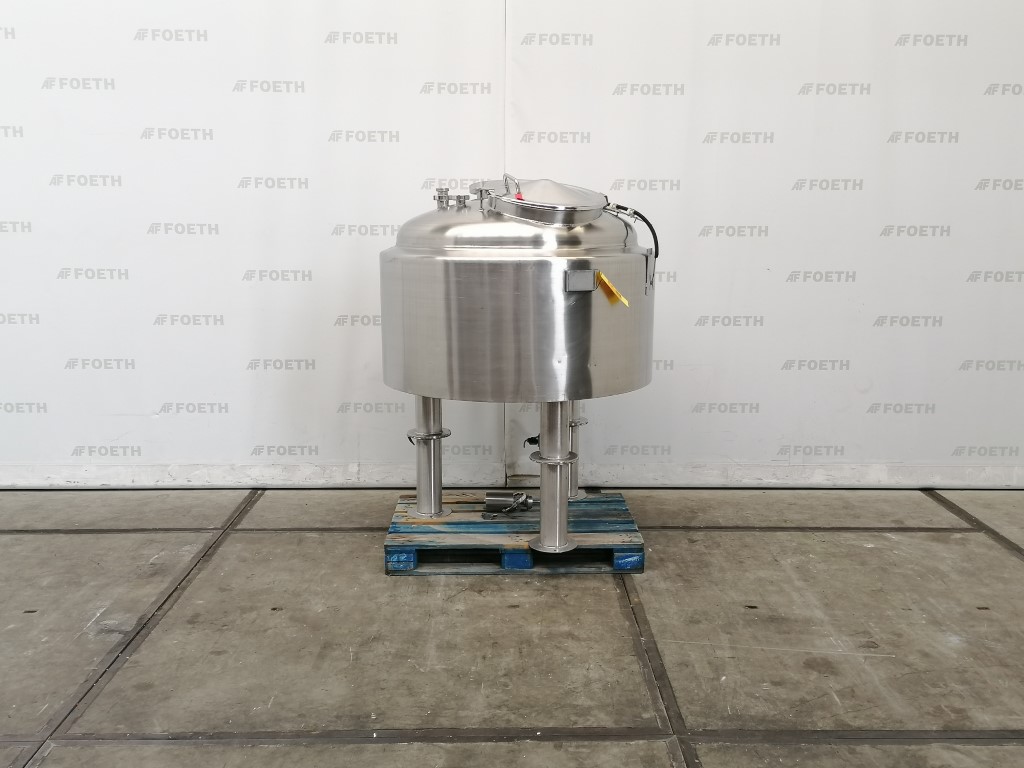

General SKU290S401 Makeunknown, manufacturer plate is missing Mounted on legscheck Main Features MaterialStainless steel Volume500 Ltr. Specified Features - Vertical tank MaterialStainless steel 1.4301 (304) Closed vertical tankcheck Capacityca. 500 ltr Vessel sizesdia. 1100x650mm Dished topcheck Dished bottomcheck Manholedia. 500mm Top connectionsdia. 32mm(1x), dia. 40mm (1x), dia. 170mm (1x) Outletdia. 50mm With jacketcheck Information LocationBarneveld Floorspace1,4x1,4 M Total height1,8 M Weight400 kgVertical tanks-Tanks > Vertical tanksBrand > - What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to inspect the machine in Barneveld, The Netherlands. Please visit us in Barneveld for many more machines!

General SKU327X695 MakeQVF Glasstechnik TypeR409/454 No.M702-723865 Mounted on legscheck in frame Main Features MaterialGlass Volume150 Ltr. Specified Features - Vertical tank Closed vertical tankcheck 2x Capacity2x 150 l. Vessel sizesø 700 x 800 mm Top connectionsDN25, DN40 OutletDN25 MaterialBorosilicate Glass 3.3 Information LocationBarneveld Floorspace1,90 x 1,00 m Total height2,20 m Weight500 kg CEcheck Extra SpecificationsQVF Glass Receiver System – 2 × 150 L Receiver Flasks with Coil Heat Exchanger (Condenser/Cooler)Vertical tanksNew arrivalsQVF GlasstechnikTanks > Vertical tanksNew arrivalsBrand > QVF Glasstechnik What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to inspect the machine in Barneveld, The Netherlands. Please visit u ...

General SKU345S750 MakeNantong sunshine graphite equipment technology LocationBarneveld CEcheck TypeHeat exchanger Pressure Vacuum possiblecheck Working pressure shell6 Bar Vacuum possible shellcheck Working pressure tubes3.2 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Graphite Tube (Material)Graphite Surface1.95 m2 Specified Features - Shell and tube heat exchanger MaterialGraphite Heat exchangercheck Verticalcheck Heating surface1.95m² Tube capacity4,6Ltr. Tube diameter±10mm Tube length±700mm and ±200mm Max. temperature-30/200°C Shell capacity3,3Ltr. Shell length710mm Max. temperature-30/200°C Shell connectionsDia: 45mm (2x) Cover connectionsDia: 80 (2x) Information No.2016458 Year of construction2016.6 Floorspace0,45x0,4m Total height2,15m Weight250kgPowdered foodsGeneric medicinesShell and tube heat exchangersOintmentsTea,  ...

General SKU205P135 LocationBarneveld MakeMorton Machine, Motherwell Scotland No.22628 Pressure Working pressure jacket1.7 Bar Main Features MaterialStainless steel Volume2000 Ltr. Motor55 KW Specified Features - Powder turbo mixer MaterialStainless steel Powder turbo mixercheck Capacity2000 Ltr Trough sizes2950 x 950 mm InletDia.300 mm Top connections(2x)Dia.80 mm Inspection hatch600 x 460 mm en inlaat Outlet300 x 250 mm With jacketcheck With adjustable packing glandscheck Motor55 KW, 415 Volt (ex) Speed mixing shaft+/- 75 Rpm Information Year of construction1979 Mounted on framecheck Floorspace4900 x 2500 mm Total height1600 mm Weight3300kg ATEX compatiblecheck Extra Specificationsvessel provided with 4 connections for lumpbreakersPowdered foodsGeneric medicinesTea, herbs & coffeeStarchOther chemicalSpicesCatalysts & fillersFeed additivesOther pharmaceuti ...

General SKU215X093 MakeCMA LocationBarneveld CEcheck TypeMAT Main Features MaterialStainless steel Volume125 Ltr. Motor5 KW Specified Features - Tumbler mixer Tumbler mixercheck Capacity150 kg With motor1,1 kW, 400 volt, Speed mixer11 rpm MaterialStainless steel 1.4306 (304L), Stainless steel 1.4435 (316L) Information No.211 Year of construction2008 With switchcheck (as is) With switchgearcheck (as is) Total height3,50 m Weight1000 kg Extra Specifications- Tumbler mixer with sieve granulator attached - 4 containers with lid - sieve granulator with 4 sieves (nibbler) - control panel and e-panel (as is) Tumbler mixersNew arrivalsCMA QuimpeMixers > Tumbler mixersNew arrivalsBrand > CMA Quimpe What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to ...

General SKU212U086 MakeAlfa Laval LocationBarneveld CEcheck Type3H-C-1T Pressure Vacuum possiblecheck Working pressure shell10 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface98 m2 Specified Features - Shell and tube heat exchanger MaterialStainless steel 1.4404 Heat exchangerspiral Horizontalcheck Heating surface98 m² Tube capacity705 Ltr. Number of tubes:1 Wall thickness tubes2 mm Max. temperature0/100 °C Shell capacity1255 Ltr. Wall thickness shell2 mm Max. temperature0/100 °C Shell connectionsDN250, DN100 Cover connectionsDN100 (2x) Capacity830.8 kW Information No.21965 Year of construction2002 Mounted on legscheck Floorspace1,85x1,3 m Total height1,85 m Weight4100 kgPowdered foodsGeneric medicinesShell and tube heat exch ...

General SKU202P126 LocationBarneveld MakeHosokawa Nauta BV Haarlem TypeMBXU-20 RVW Pressure Working pressure0 Bar Vacuum possiblecheck Working pressure jacket0.4 Bar Main Features MaterialStainless steel Volume2000 Ltr. Motor15 KW Specified Features - Conical dryer Conical dryercheck Capacity2000 Ltr Largest cone diameter1980mm Cone height3000mm Dished topcheck ManholeDN500 Stainless steel armcheck Motorarm 0,75 KW, 380 Volt Motorschroef 15,0 KW, 380 Volt Bottom bearing cross couplingcheck With jacket(8 m2) Max. temperature100 degr.C. Bottom outlet(1x) dia.150mm (1x) dia.75mm MaterialStainless steel 1.4301 (304) Information Mach.No.M18666 Year of construction1973 Floorspace2,1x2,0 M Total height4,85 M Weight3000 KGPowdered foodsFine chemicalsStarchOther chemicalBiotechnologyConical dryersCatalysts & fillersFeed additivesPaper & otherOther pharmaceuticsSu ...

General SKU070A367 LocationBarneveld MakeR.V.H. Machinefabriek Born No.04336 / 179179 Pressure Working pressure3 Bar Vacuum possiblecheck Working pressure jacket4 Bar Main Features MaterialStainless steel Volume6200 Ltr. Motor11 KW Specified Features - Stainless Steel Reactor MaterialStainless steel 1.4571 (316Ti) Stainless Steel Reactors Reactor(1x) Capacity6200 Ltr Vessel sizesdia. 1900x1640mm Conical bottomcheck Dished top sidecheck Manhole/hand hole dia. 240mm Top connectionsdia.250mm+6xdia.40mm+2xdia.50mm+2xdia.80mm Outletdia. 125mm With jacket(3x 70 Ltr) Max. temperature-20/+155 Degr. C. With gate type stirrermake Ekato, type EM-100 Motor11,0 KW, 380 Volt (Ex) Speed mixing shaft± 45 Rpm Information Year of construction1990 Floorspace2,4x2,4 M Total height4,7 M ATEX compatiblecheckGeneric medicinesOintmentsFine chemicalsOther chemicalRubberAgrochem ...
