Tokarki sterowane numerycznie (CNC) MORI SEIKI NL3000/3000

Manufacturer MORI SEIKI
Model NL3000/3000
Year 2.008
CNC MORI SEIKI MSX-850III
Capabilities and advances
Max. turning on bed 995 mm.
Max. turning on transverse carriage 825 mm.
Maximum turnable diameter 420 mm
Maximum turnable length 3,123 mm.
Distance between points 3,200 mm.
X-axis travels 280
Z-axis travel 3,170 mm.
Fast Forward X-Axis, Z 30.0000 mm/min
Head
Nose head JIS A2-8
Maximum head speed 3,000 rpm
Rod pitch head 105 mm.
Axle diameter in the front bearing 160 mm.
Main motor power 28 kW
Maximum torque 3,365 Nm

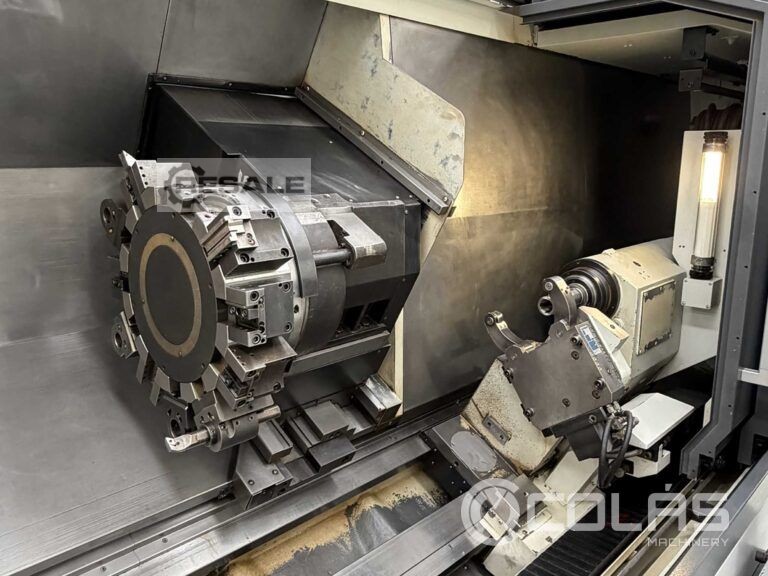

Turret
No. Turret 12 Positions
Maximum square tool size 25 mm
Bored bar diameter 50 mm.
Turret indexing time 0.3 s
Counterpoint
Tailstock travel 3,164 mm
Tailstock shank diameter 150 mm
Tailstock shaft course 150 mm
MT5 tailstock cone
Equipment
3 Claws Hydraulic Plate Ø 400 mm INCLUDED
Chainring type SCHUNK THW 400-120
Quick Change System of Claws on Plate INCLUDED
SHW hydraulic steady rest type SLU-3.2-ZS INCLUDED
Window capacity 50-200 mm.
CNC Longitudinal Movement Bezel (A-Axis) INCLUDED
Automatic Tool Sizer INCLUDED
Longitudinal Chip Evacuator INCLUDED
Portable steering wheel INCLUDED
High Pressure Pump 30 bar + External tank INCLUDED
Cooling tank capacity 540 l
Others
Dimensions (Lengthxwidthxheight) 8.147 x 2.58 x 2.390 mm.,
Machine weight 13,500 kg
Total Installed Power 54 kVA
