MORI SEIKI NZ 2000 T3Y2 CNC Turning- and Milling Center

standard turning dia.:200
turning length:max. 810 mm
control:MSX-701 MAPPS IV
greates pass round over bed:800 mm
Max. distance between centres:1130 mm
max. turning diameter:320 mm
max. workpiecediameter:300 mm
bar material dia.:65 mm
Traverse X-Axis 1:210
Traverse X-Axis 2:210 mm
Traverse X-Axis 3:210 mm
Traverse Y-Axis 1:110 (+65/-45) mm
Traverse Y-Axis 2:110 (+45,/-65) mm
Traverse Z-Axis 1:300 mm
Traverse Z-Axis 3:300 mm
Traverse Z-Axis 2:810 mm
Traverse B-Axis:870 mm
turning speed range - spindle:5.000 1/min
Number of spindle speed ranges:2 .
spindle nose:JIS A2-6
spindle bore:73 mm
spindle bearing diameter:120 mm
C-Axis:0,001 °
turning speed range - spindle:5.000 1/min
spindle nose:JIS A2-6
spindle bore:73 mm
bar material dia. max:65/52 mm
spindle bearing diameter:120 mm
C-Axis:0,001 °
Number of Turrets:3 .
Number of tool stations:16 x 3=48 pos
Schank height for square tool:20 mm
Diameter of boring bar:32 mm
turret changing time (4-stations):0,18 sec
Number of driven tools:16 x 3=48 pos
max. spindle speed driven tools:6.000 U/min.
Rotary tool machining ability:M16 / Ø16 .
rapid traverse X-axis:30 m/min
rapid traverse Y-axis:20 m/min
rapid traverse Z-axis:50 m/min
drive capacity - spindle motor:25 / 22 kW
power capacity - driven tools:7,5 / 5,5 kW
total power requirement:92,7 kVA
weight of the machine ca.:9,4 t
dimensions of the machine ca.:4,0 x 2,8 x 2,4 m
Spindle 1 Chuck:SMW KNCS-N 210 / 52 mm
Spindle 2 Collet Chuck:Hainbuch Spanntop nova Kombi Axfix 65
CNC Turning- and Milling Center

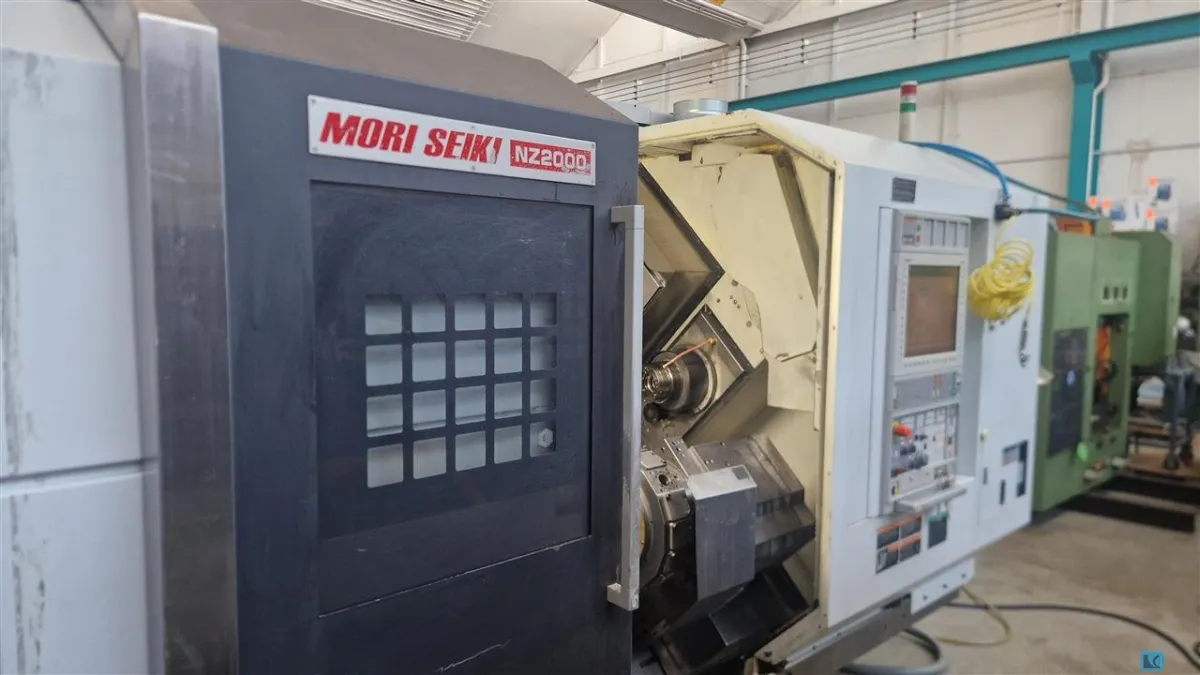

MORI SEIKI NZ 2000 T3Y2
The NZ2000 T3Y has 2 spindles and 3 turrets, and 2 turrets have the Y-axis function and built-in milling motors. This not only allows synchronized machining using 3 turrets, but also achieves heavy-duty cutting and high-speed machining using rotary tools thanks to the built-in motor turrets.
The robot cell has been diemanteled, it is now a stand alone machine.
A bar feeder can be added.
