NeoDen IN6 Piec reflowowy

Manufacturer: NeoDen

Model: IN6

Year of Manufacture:

Type of Machine : Reflow Oven

Key Technical Specifications

- Power supply: 110/220 VAC, 1-phase (household power compatible)

- Rated power: 2000 W maximum

- Heating zones: 6 total (3 upper / 3 lower)

- Heating type: aluminum alloy heating plate with nichrome wire

- Cooling zones: 1, with bottom cooling fans at offload section

- Conveyor speed: 5 to 30 cm/min (2 to 12 inch/min)

- Maximum PCB height: 26 mm

- Soldering width: 250 mm

- Process chamber length: 680 mm (26.8 inch)

- Temperature range: room temperature up to 300 degrees C

- Temperature control accuracy: +/- 0.2 degrees C

- PCB temperature distribution deviation: +/- 1 degree C

- Heat-up time: 20 to 30 minutes

- Operation direction: left to right

- Machine dimensions: 1020 x 507 x 350 mm (L x W x H)

- Packing size: 112 x 62 x 56 cm

- Net weight: 49 kg

- Gross weight: 66 kg

- Certification: TUV CE approve

Standard Accessories Included

- User Manual

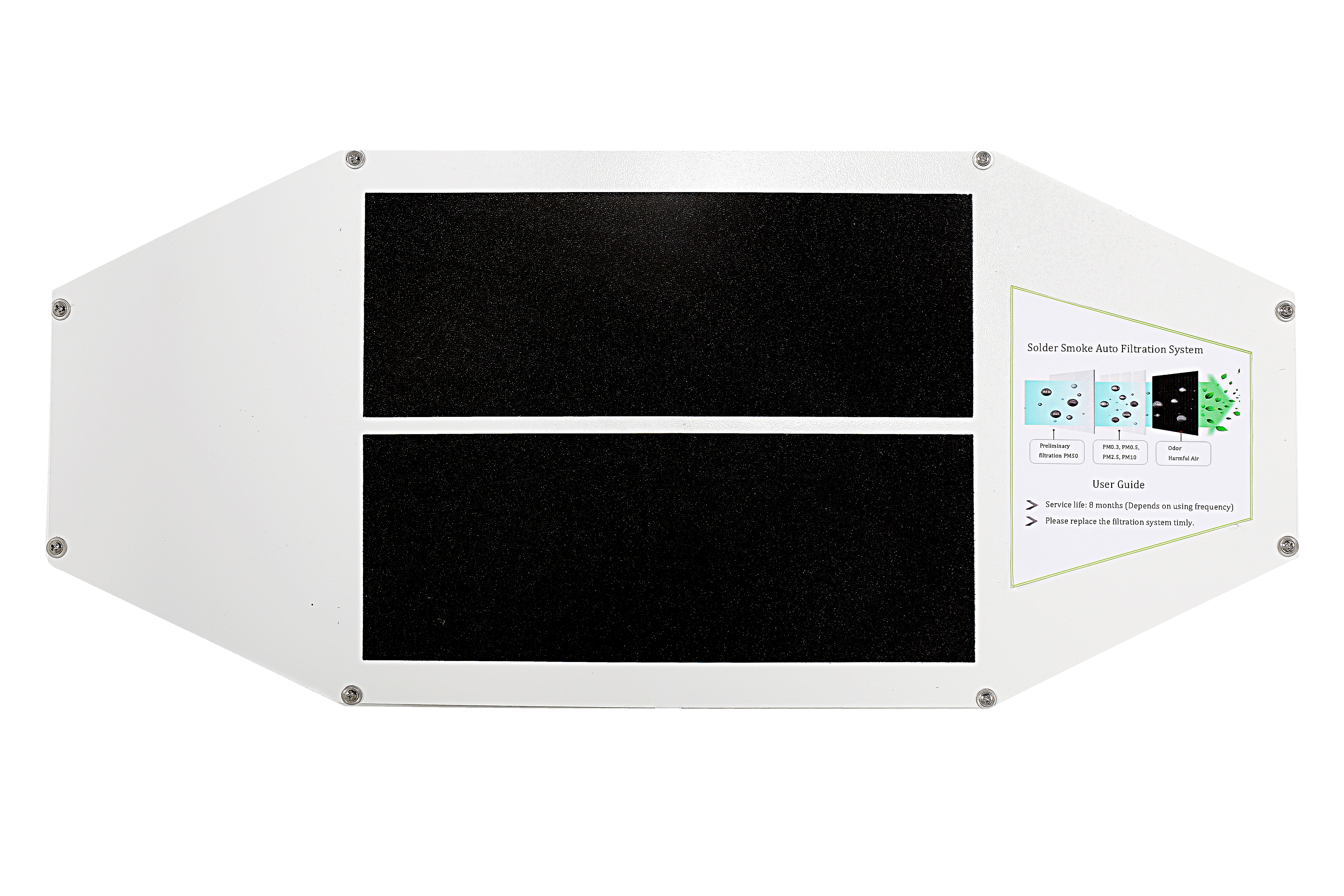

- Smoke filtering system replacement set

- ESD tray

- Power cord (5 m)

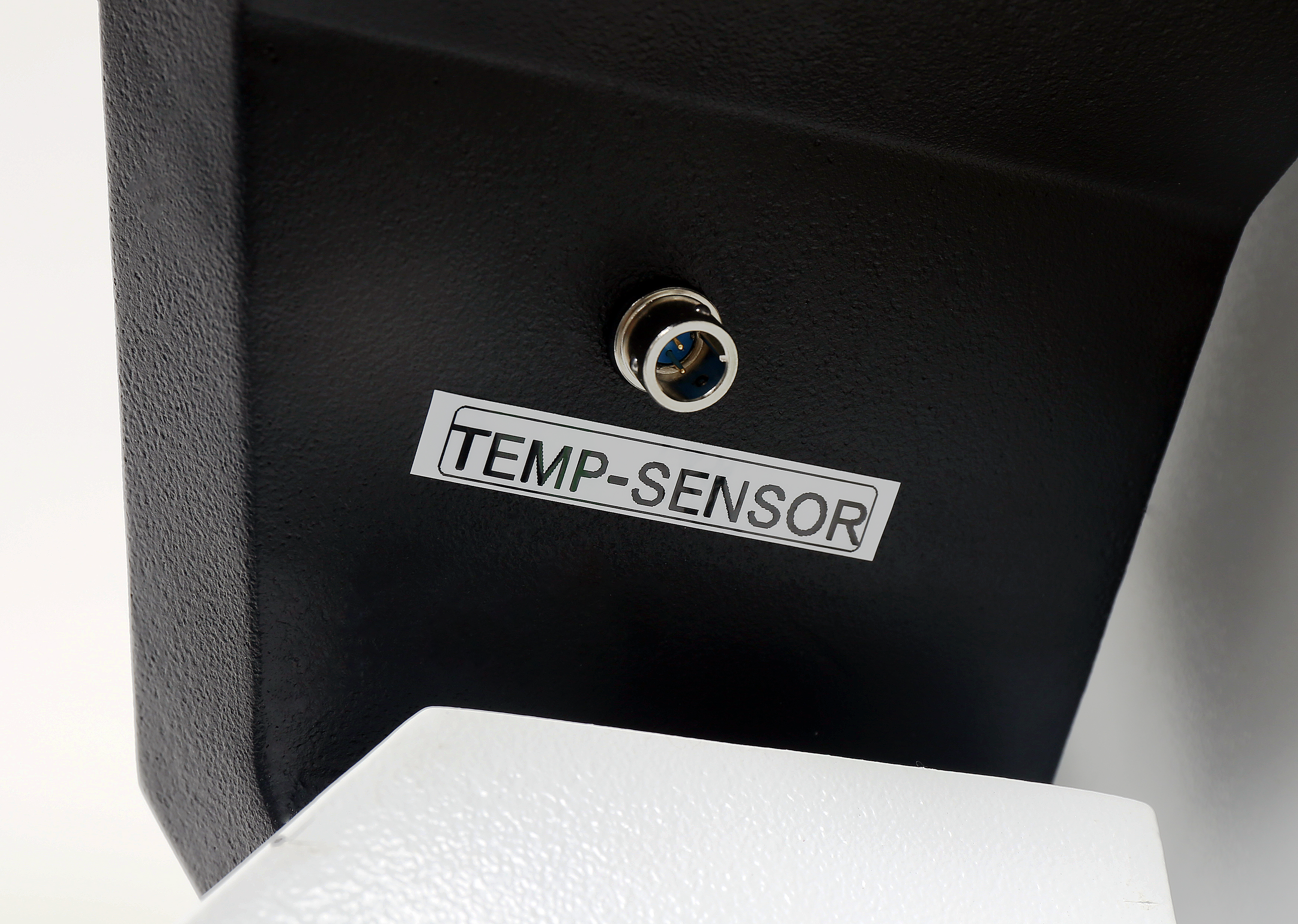

- Temperature sensor
