9 CASTEL używana maszyna na sprzedaż

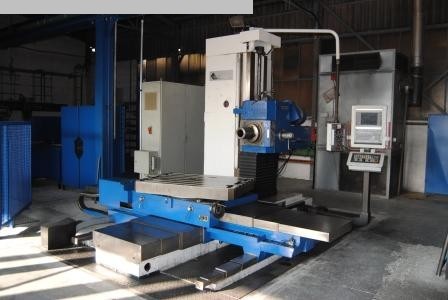

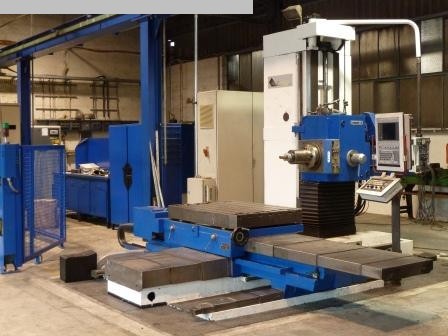

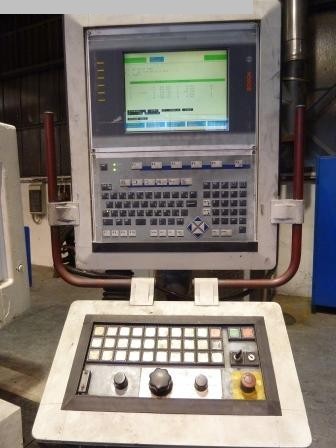

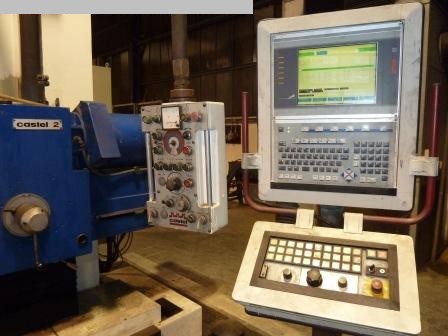

spindle diameter: 100 mm travel -x axis: 2000 mm travel -y axis: 1200 mm travel -z axis: 1000 mm spindle stroke - max.: 500 mm table surface area: 1250 x 1250 mm table rotating: 360 ° max. table load: 8000 kg spindle taper ISO: 50 spindle turning speed range: 30 - 1300 U/min feeds: 2 - 1000 mm/min rapid traverse: 6 m/min drive capacity - spindle motor: 14 kW coolant: voltage: 380 V control: Bosch1-OSA One direction thrust bearing: total power requirement: 15,0 kW weight of the machine ca.: t dimensions of the machine ca.: 4,20 x 3,00 x 3,00 m - Factory No.: 0149 Refurbished 2000 Machine can be used conventionally The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacit ...

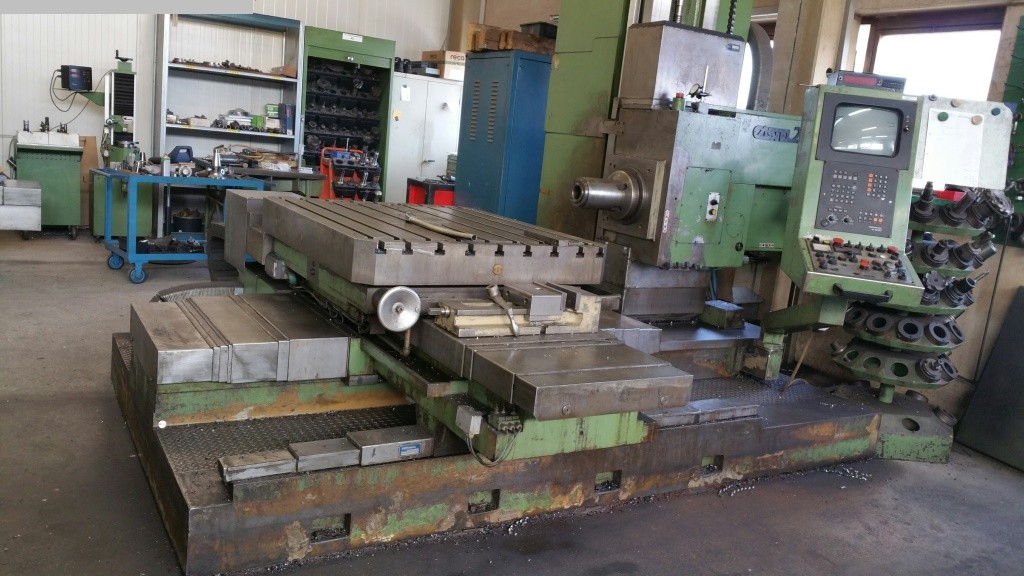

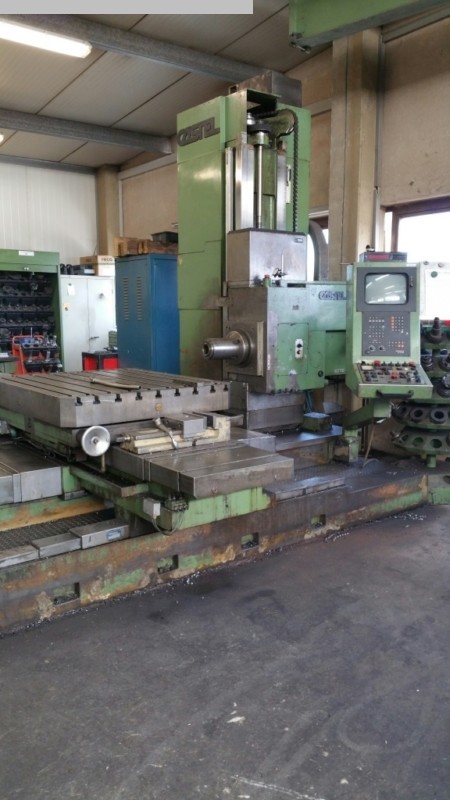

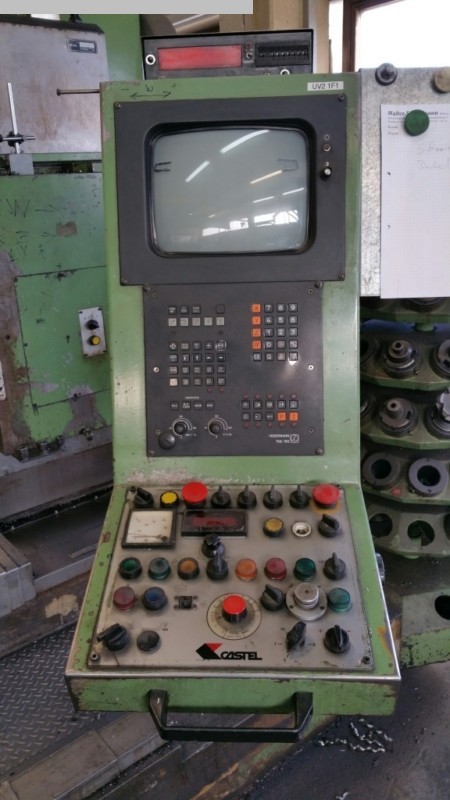

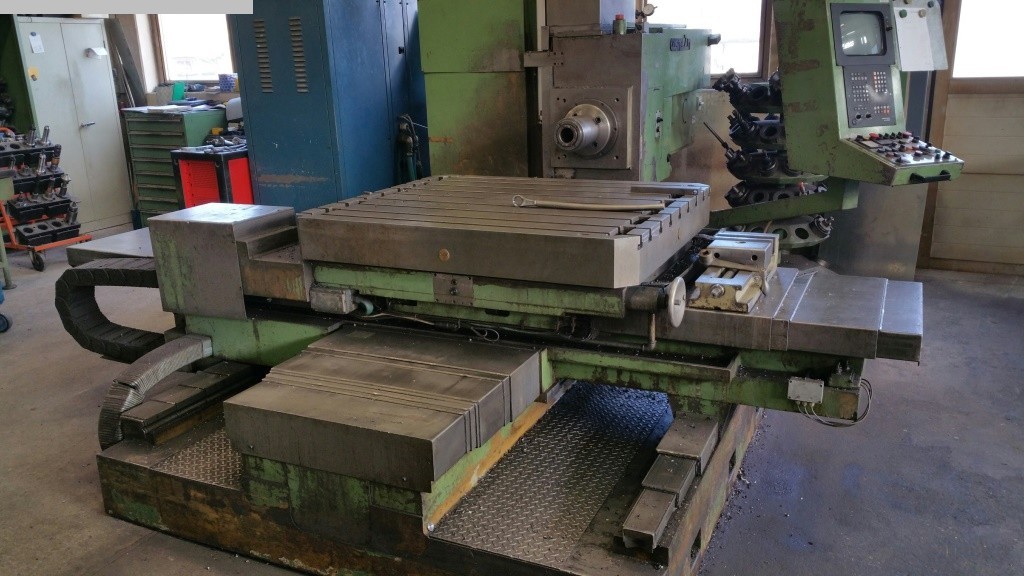

spindle diameter: 100 mm x-travel: 2000 mm y-travel: 1200 mm z-travel: 1000 mm w-axis: 500 mm control: Heidenhain type: TNC 155 turning speeds: 20-2000 U/min spindle taper ISO: 50 table surface area: 1100x1300 mm angular milling head: Feed: 0-5000 mm/min Rapid movement: 8000 mm/min workpiece weight: 3000 kg spindle motor: 15 kW total power requirement: 27 kW weight of the machine ca.: 14 t dimensions of the machine ca.: 5,3x2,9x3,1 m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers ...

Balancing valve, shut-off valve, ball valve, ball valve -Manufacturer: Castel, ball valve, unused, original packaging -Type: 6590/M12 -Connections: 12 mm ODS -Cardboard dimensions: 130/85/H40 mm -Weight: 0.3 kg.

Line regulating valve, shut-off valve, ball shut-off valve, ball valve, ball valve, pressure relief valve. Shut-off valve -Manufacturer: Castel, collector valve/valve membrane, unused in original packaging -Type: 6110/22 -Price: per piece -Number: 5 piece -Dimension box: 100/50/H40 mm -Weight: 0.1 kg/piece

Connectors, plugs, terminal plugs, coil plugs, Fast-On connectors, cable connectors, wired connectors, magnetic coils -Manufacturer: Castel, magnetic coil cable connector wired connector -Type: 9900/X66 -Connector: Fast-On connector -Number: 9 cable connectors available -Price: per piece -Packaging dimensions: 140/120/H35 mm -Weight: 0.1 kg/pc

bore capacity in steel (diameter): 110 mm x-travel: 2.100 mm y-travel: 1.500 mm z-travel: 1.000 mm w-travel: 500 control: HEIDENHAIN TNC 430 connected load: kVA Working Spindle: - boring quill diameter: 110 mm spindle taper: DIN 69871 ISO 50 spindle power: 22 kW transmission ratio: 2 turning speed range: 2.000 U/min clamping table: - max. workpiece weight: 4.000 kg surface area: 1.100 x 1.300 mm feeds: feed range X-, Y-, Z- axis: 0 – 10.000 mm/min feed range W-axis: 0 - 10.000 mm/min rapid motion - x-axis: 10.000 mm/min rapid feed Y, Z, W-axis: 10.000 mm/min Control: total power requirement: 22 kW weight of the machine ca.: 23.000 kg dimensions of the machine ca.: 7,1 x 6,5 x 3,7 m Equipment. • CNC-control HEIDENHAIN 430 • support bearing • manual milling head • coolant tank with pump The data for this ad was created with ModulMWS - the software solution of LogoTech oH ...

spindle diameter: 110 mm x-travel: 2.100 mm y-travel: 1.500 mm z-travel: 1.000 mm w-travel: 500 control: HEIDENHAIN TNC 430 connected load: kVA Working Spindle: - boring quill diameter: 110 mm spindle taper: DIN 69871 ISO 50 spindle power: 22 kW transmission ratio: 2 turning speed range: 2.000 U/min clamping table: - max. workpiece weight: 4.000 kg surface area: 1.100 x 1.300 mm feeds: feed range X-, Y-, Z- axis: 0 – 10.000 mm/min feed range W-axis: 0 - 10.000 mm/min rapid motion - x-axis: 10.000 mm/min rapid feed Y, Z, W-axis: 10.000 mm/min total power requirement: 22 kW weight of the machine ca.: 23.000 t dimensions of the machine ca.: 7,1 x 6,5 x 3,7 m Equipment. • CNC-control HEIDENHAIN 430 • support bearing • manual milling head • coolant tank with pump The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

frezarka wiercicielska, rok 1990, CNC 4045D - v1.12.8. Używana maszyna w dobrym stanie. Więcej informacji i ceny na IndustrialBuyer.

frezarka wiercicielska, rok 1990, CNC 4045R. Używana maszyna w dobrym stanie. Więcej informacji i ceny na IndustrialBuyer.
