4 CKD BLANSKO używana maszyna na sprzedaż

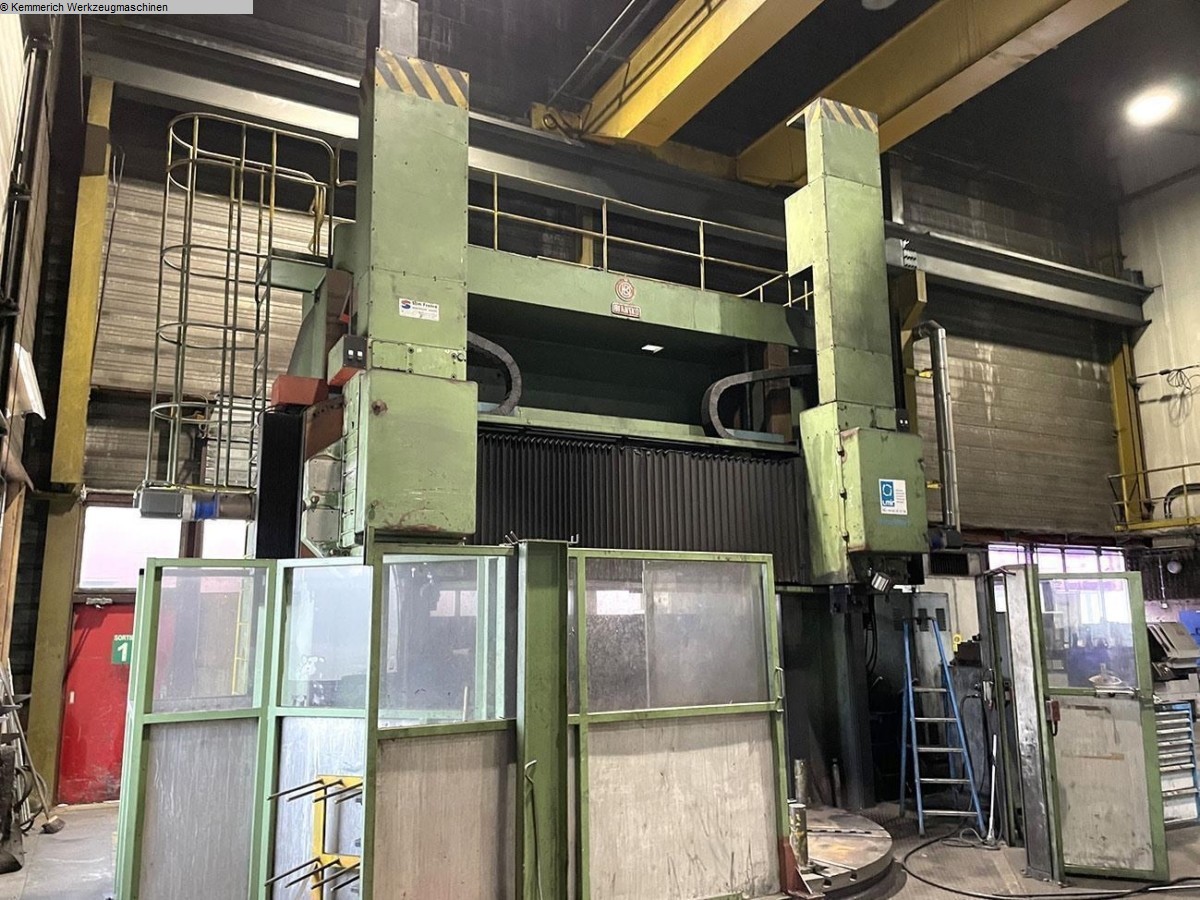

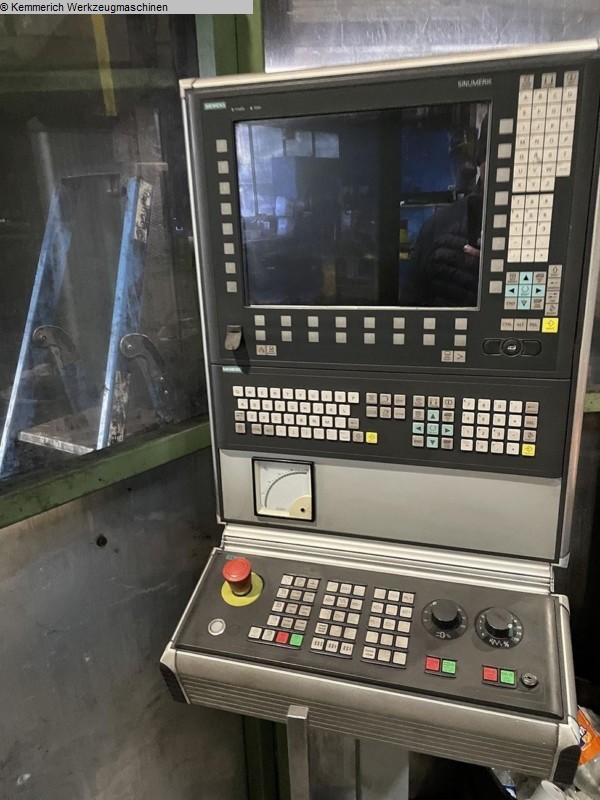

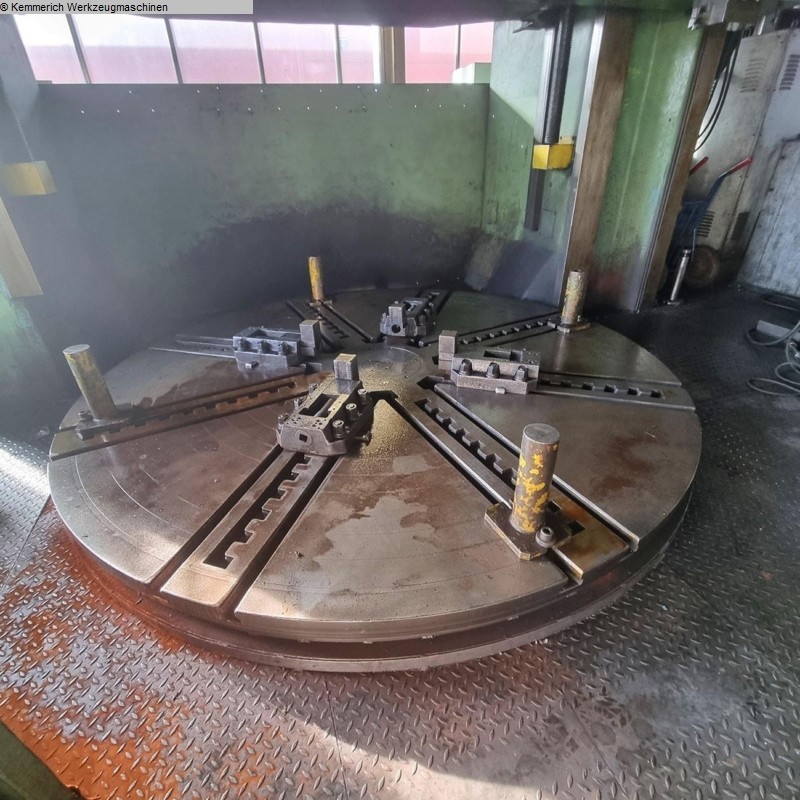

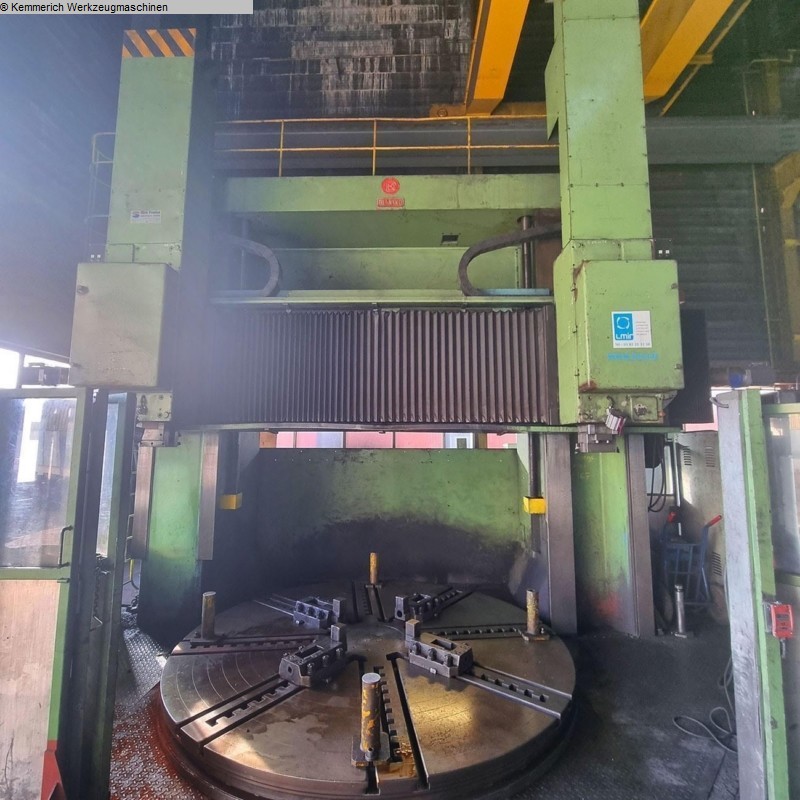

faceplate diameter: 3200 mm swing diameter: 3500 mm turning height: 2550 mm workpiece weight: 50 t faceplate speeds from - to: 0,8 - 80 U/min main drive motor: 120 kW cross rail adjustment: 2100 mm Control: Siemens 840D total power requirement: 195 kVA weight of the machine ca.: 65 t overhauled/modernized in 2017: - CNC control Siemens Sinumerik 840 D, - 4-jaw faceplate, - 2 ram supports on the cross beam -- horizontal movement of tool head no. 1: 1400 mm -- vertical movement of tool head no. 1: 1500 mm -- horizontal movement of the tool head No. 2: 1980 mm -- vertical movement of the tool head No. 2: 1350 mm -- Swivel angle of the tool head: -/+ 30°. - Hydrostatic table The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

faceplate diameter: 4770 mm swing diameter: 5300 mm turning height: 4130 mm faceplate turning speed range -stepless-: 0,4 - 45 U/min feeds infinitely variable: 0,1 - 4000 mm/min table load: 100 t main drive motor: 80 kW Control: Siemens 840D vertical Stroke: 3200 mm cross travel: 3600 mm ram adjustment: 2000 mm ram swivable +/-: 30 z-travel: 1950 mm total power requirement: - kW weight of the machine ca.: 125 t dimensions of the machine ca.: 15 x 9 x 13 m equipped with: - CNC control Siemens 840D - 2 Rams on Crossbeam - Pickup magazine with 8 tool holder positions - Automatic clamping of the tool holder in the ram - 1x straight boring head - 1x 90° angle head (not in the pickup magazine) - 1x set of jaws The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Producent: ČKD Blansko Model: SK 25 A Rok: 1960 Warunek: używany Numer agonalny: 9539 Maksymalna średnica toczenia: 2500 mm Średnica płytki zaciskowej: 2400 mm Maksymalna masa obrabianego elementu: 14000 kg Maksymalna wysokość obrabianego elementu: 1600 mm Masa: 47000 kg

marka: CKD BLANSKO Modelu: SKHK 50 średnica płaskowyżu: 4770 mm maksymalna średnica: 5200 mm skok suwaka: 2000 mm maksymalna wysokość: 3000 mm ładowność: 50 ton. Obroty plateau: 1 zakres: 0,4-12 / 2 zakres: 1,6-50
