16 GLEASON używana maszyna na sprzedaż

Max. odległość stożka: 230 mm Ilość zębów: 5-150 Średnica otworu stożkowego na dużym końcu: 100 mm Stożek: 1:19,7 Głębokość stożka: 150 mm Średnica otworu przez wrzeciono: 78 mm Średnica końcówki wrzeciona: 140 mm Max. przesunięcie powyżej środka: 114 mm Max. przesunięcie poniżej środka: 114 mm Max. odległość od środka maszyny do czubka wrzeciona: 343 mm Min. odległość od środka maszyny do końcówki wrzeciona: 63 mm Prędkości obrotowe noża: 17-115 obr./min Posuw (s/ostrze): 9-80 s Powierzchnia: 1900x2900 mm Waga netto: 10750 kg

CHANGE GEARS

max. wheel diameter:275 mm gear width: mm max. module: weight of the machine ca.:9,4 t dimensions of the machine ca.:3,7 x 3 x 2,82 m min. number of teeth:5 max. number of teeth:2000 range of tooth size:20 mm max. gear width (internal machining):58 mm X-axis:325 mm y-axis:350 mm Z-axis:475 mm Bevel gear milling machine Gleason Pfauter including Promot Automation

max. wheel diameter:275 mm gear width:58 mm max. module:8 min. module:0,5 weight of the machine ca.:10 t max. number of teeth:200 min. number of teeth:5

max. wheel diameter: 406,4 mm gear width: 66 mm max. module: ca. 12,5 min. module: Control: Zyklengesteuert total power requirement: 21 kW weight of the machine ca.: 12,5 t dimensions of the machine ca.: 3,3 x 2,5 m The GLEASON 641 G-PLETE bevel gear generating machine is a proven and robust solution for the production of spiral bevel gears, hypoid gears, and Zerol bevel gears usingthe well-established Gleason generating method. Designed for reliable and repeatable machining processes, this machine is ideally suited for small to medium batch production in industrial gear manufacturing. The 641 supports both roughing and finishing operations in a single setup (completing process), ensuring consistent gear quality while reducing handling time. Its mechanical generating system with variable roll ratio and plunge feedmechanism allows precise control of the tooth geometry, making it a depend ...

max. wheel diameter: 762 mm gear width: 116,84 mm max. module: min. module: total power requirement: 145 kW weight of the machine ca.: 27 t dimensions of the machine ca.: 5,5 x 5,3 x 3,4 m With the GLEASON Phoenix® 800HG bevel gear grinding machine, manufacturers of spiral, hypoid, and other bevel gears for large components can significantly increase their productivity. The machine enables faster grinding processes while maintaining the highest accuracy and excellent repeatability. Its extremely robust machine design forms the basis for stable machining processes, even for large workpiece diameters of up to 762 mm. Combined with a powerful FANUC CNC control system, the 800HG offers maximum flexibility for a wide range of gear geometries—from spiral and hypoid bevel gears to special forms. Thanks to its well-thought-out machine concept, the Phoenix® 800HG allows for reduced setup ti ...

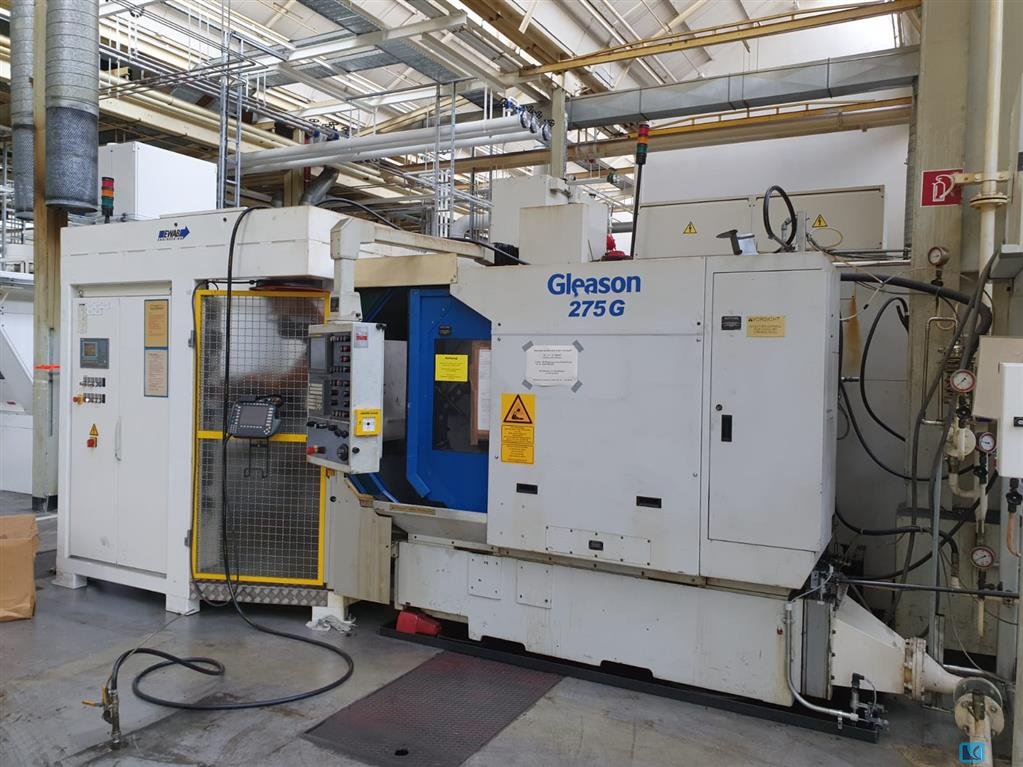

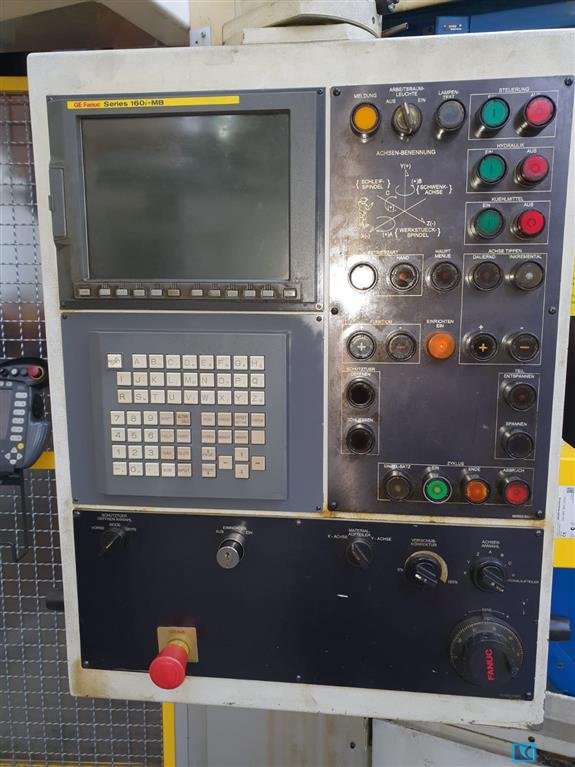

ratio of transmission: 10:1 min. number of teeth: 3 max. number of teeth: 200 range of tooth size: 20 mm diameter of tools min: 69,85 mm tooth width max.: 58 mm diameter of tools max.: 230 mm x-axis: 325 mm y-axis: 350 mm z-axis: 470 mm work piece table - Ø: 212,71 mm b-axis: + 90,1 / - 1 ° Control: 160 i - MB FANUC total power requirement: 75 kW weight of the machine ca.: 10.000 Kg dimensions of the machine ca.: 6,10 x 4,40 x 3,30 m WAGURI With EWAB robot cell (KUKA robot) without coolant filter system Fire extinguishing system without CO2 bottles Cooling oil return with various pumps / collecting basins Threading device A1/B2 axes with measuring probe Clamping device for a pinion shaft External spindle oil cooler Extraction system pinion shaft The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

ratio of transmission: 10:1 min. number of teeth: 3 max. number of teeth: 200 range of tooth size: 20 mm tooth width max.: 58 mm diameter of tools min: 69,85 mm diameter of tools max.: 230 mm x-axis: 325 mm y-axis: 350 mm z-axis: 470 mm work piece table - Ø: 212,71 mm b-axis: + 90,1 / - 1 ° Control: SIN 840 D SIEMENS total power requirement: 75 kW weight of the machine ca.: 10.000 Kg dimensions of the machine ca.: 6,10 x 4,40 x 3,30 m WAGURI with EWAB load cell built in 2012 (Linear loader) no coolant filter system available The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

weight of the machine ca.: 7.800 kg dimensions of the machine ca.: 3.380 x 3950 x 3015 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

ratio of transmission: 10:1 min. number of teeth: 3 max. number of teeth: 200 range of tooth size: 20 mm tooth width max.: 58 mm spindle speeds (infinitely variable): 6000 U/min work piece spindle speed: 1200 U/min diameter of tools max.: 230 mm diameter of tools min: 69,85 mm x-axis: 325 mm y-axis: 350 mm z-axis: 470 mm b-axis: + 90,1 / - 1 ° work piece table - Ø: 212,71 mm Control: SIN 840 D SIEMENS total power requirement: 75 kW weight of the machine ca.: 10.000 Kg dimensions of the machine ca.: 6,10 x 4,40 x 3,30 m Internal probe Renishaw LP2 (axis X2,Y2) Hoffmann coolant filter system HSF 100SE/K (built in 2008) Tank capacity 2500L VT oil mist filter system The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Dostępna jest maszyna do testowania walcowania kół zębatych stożkowych Gleason. Średnica obrabianego przedmiotu: 330mm, Max. odległość od środka: 203mm, Zakres odległości końcówki wrzeciona zabieraka: 100mm-250mm, Max. zakres przesunięcia góra/dół: 203mm/50mm, Otwór wrzeciona zabieraka: 99mm, Stożek wrzeciona zabieraka na metr: 15.5mm/m, Otwór przeciwwrzeciona: 58mm, Stożek przeciwwrzeciona na metr: 12.7mm/m, Prędkość wrzeciona: 1500rpm, Zakres kąta testowego: 0-180, Powtarzalność wrzeciona napędowego: +/- 0,004mm, bicie: +/-0,003mm, wymiary maszyny X/Y: ok. 1550mm/2050mm, waga: ok. 2400kg. Możliwa jest wizja lokalna.

ratio of transmission: 10:1 min. number of teeth: 3 max. number of teeth: 200 range of tooth size: 20 mm tooth width max.: 58 mm spindle speeds (infinitely variable): 6000 U/min work piece spindle speed: 1200 U/min diameter of tools max.: 230 mm diameter of tools min: 69,85 mm x-axis: 325 mm y-axis: 350 mm z-axis: 470 mm b-axis: + 90,1 / - 1 ° work piece table - Ø: 212,71 mm Control: SIN 840 D SIEMENS total power requirement: 75 kW weight of the machine ca.: 10.000 Kg dimensions of the machine ca.: 6,10 x 4,40 x 3,30 m coolant filtering unit Hoffmann HSF 100 V The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 1010 mm gear width: 0 mm max. module: min. module: total power requirement: 15 kW weight of the machine ca.: 9,5 t dimensions of the machine ca.: m Max. depth of tooth 10 mm Max. workpiece Ø (for clearance) 1,010 mm Max. external Ø of coupling 610 mm Sliding base withdraw 216 mm Max. distance from grinding wheel to workpiece nose 90 - 430 mm Max. weight of workpiece, including clamp 500 kg No. of teeth 32 to 150 Grinding wheel Ø, approx 152 - 320 mm Grinding wheel speeds, infinitely variable 0 - 3,600 rpm Work spindle bore 60 mm Total electrical load, approx. 15 kW - 380 V - 50 Hz Weight, approx. 9,500 kg Accessories / Special Features Automatic roughing and finishing process via pre-settable counter and built-in feed cam. Counter for number of teeth. Counter for number of dressing cycles. 2 built-on dressing units with three dressing diamonds for radiu ...

max. wheel diameter: 215 mm gear width: 40,65 mm max. module: total power requirement: 20 kW weight of the machine ca.: 10 t Max. external Ø of workpiece 215 mm Tooth profile, height x width 16 x 40.65 mm No. of teeth 5 - 200 Max. tooth ratio 1 : 10 Grinding wheel Ø 51 - 190 mm Grinding wheel speeds 1,000 - 6,000 rpm X Axis (horizontal) 152 mm Y Axis (vertical) 178 mm Z Axis (slide base plate) 304 mm Distance from middle of machine to middle of workspindle 115 mm Axial speed 125 mm/sec Workpiece speeds 0 - 30 rpm Workspindle bore, conical 3 29/32 inch Total electrical load 20 kW - 380 V - 50 Hz Weight, approx. 10,000 kg Accessories / Special Features FANUC CNC Control, Model 150 MB, for 7 axes, with monitor and direct input. Automatic calculation of all workpiece and grinding parameters. Extensive coolant equipment with filter system, band filter, etc. Driv ...

Na sprzedaż używana głowica frezająca Gleason Genesis 130 H

Maksymalna średnica robocza 660,4 mm Moduł max 16,9 Szerokość robocza 106,7 mm Min. max nie. Liczba zębów 20 - 75 Masa maszyny 17700 kg Wyposażone Krążki indeksujące Głowice tnące Miernik Urządzenie do ustawiania ostrzy
