4 JAEGGI BERN używana maszyna na sprzedaż

General SKUR0830 MakeJaeggi Bern (CH) LocationBarneveld Type35 m² Pressure Working pressure shell6 Bar Working pressure tubes10 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface35 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface35 m² Tube capacity164 l. U-typecheck Number of tubes:120 Tube diameter16 mm Tube length6000 mm Wall thickness tubes1 mm Max. temperature200°C Shell capacity206 l Shell diameter406 mm Shell length3000 mm Wall thickness shell4 mm Max. temperature200°C Shell connectionsdia. 65 mm (2x) dia 15 mm (1x) Cover connectionsdia. 100 mm (2x) MaterialStainless steel 1.4435 (316L) General No.1894 Year of construction1990 Floorspace3.7 x 0.7 m Total height1.3 m Weight750 kgOils & fatConsumer wastePaints & coatingsPowdered foodsGeneric medicine ...

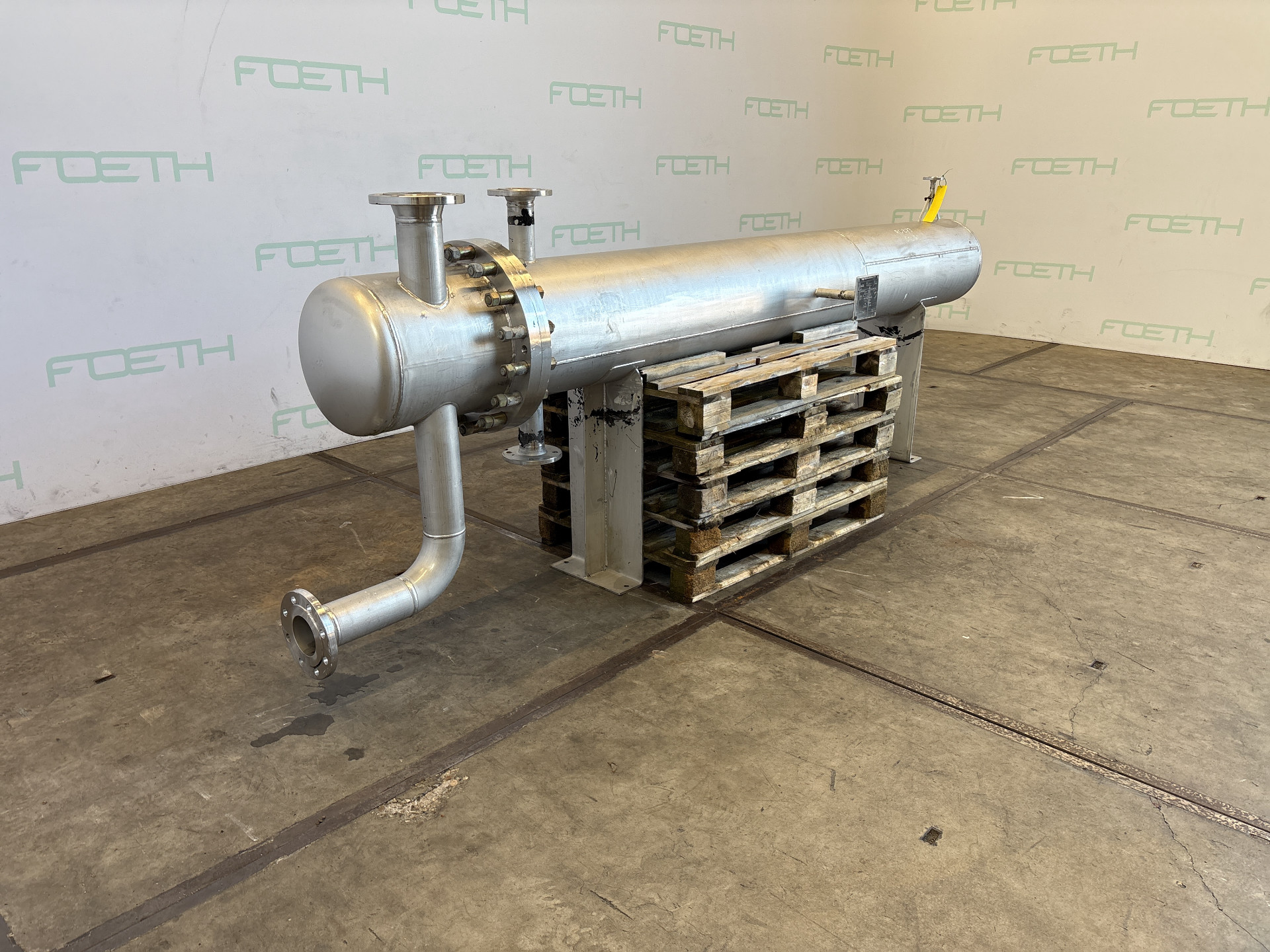

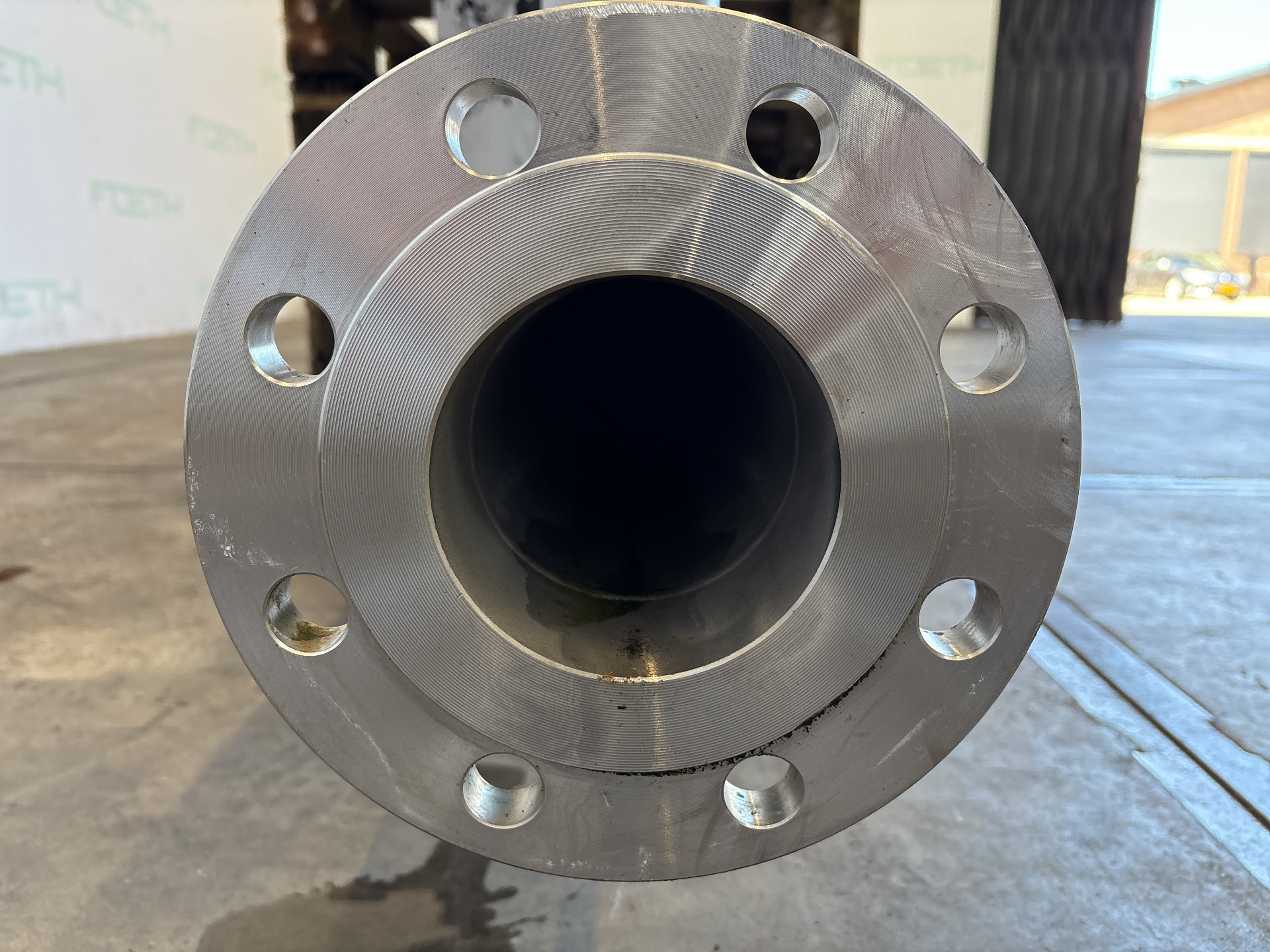

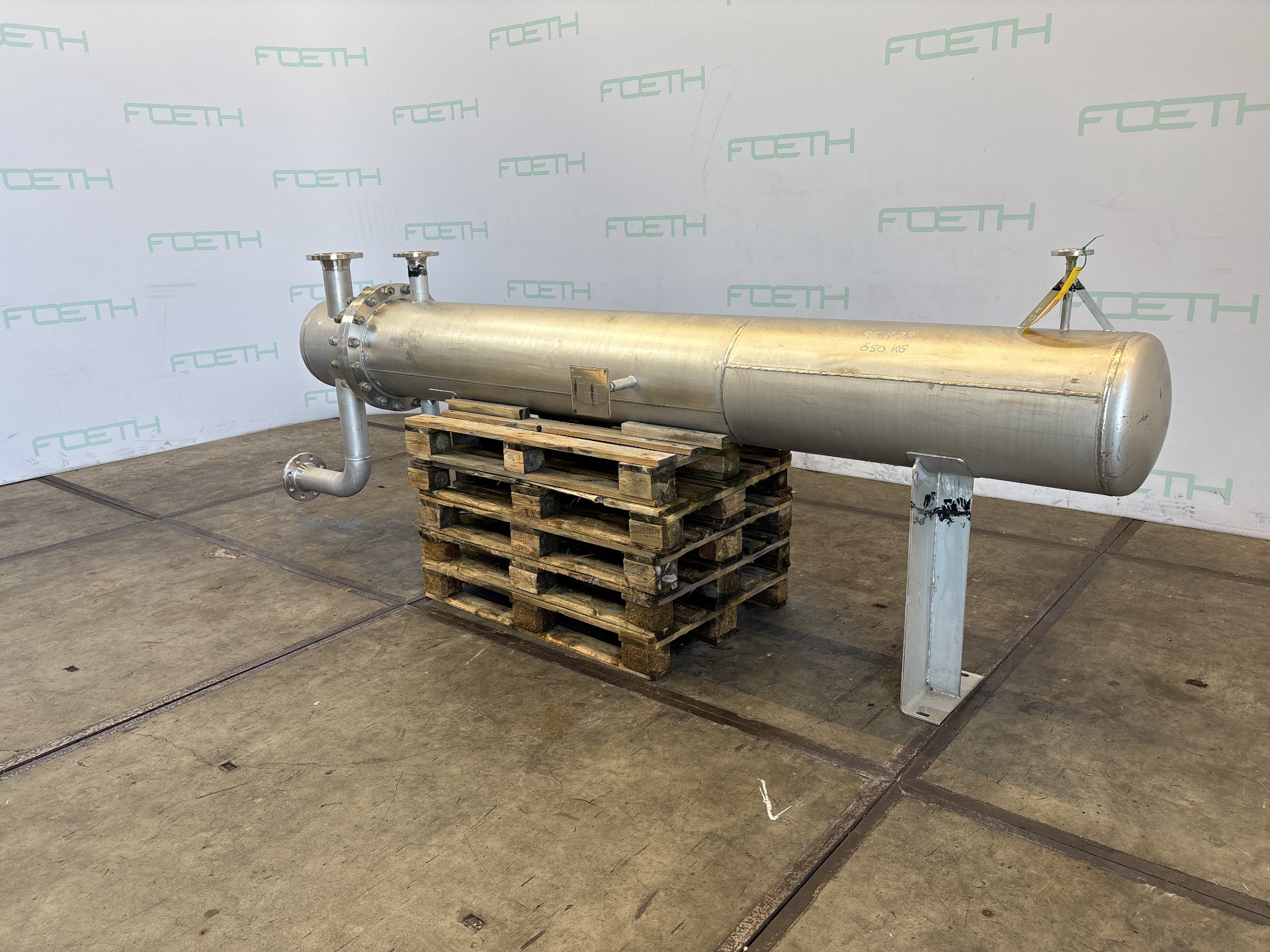

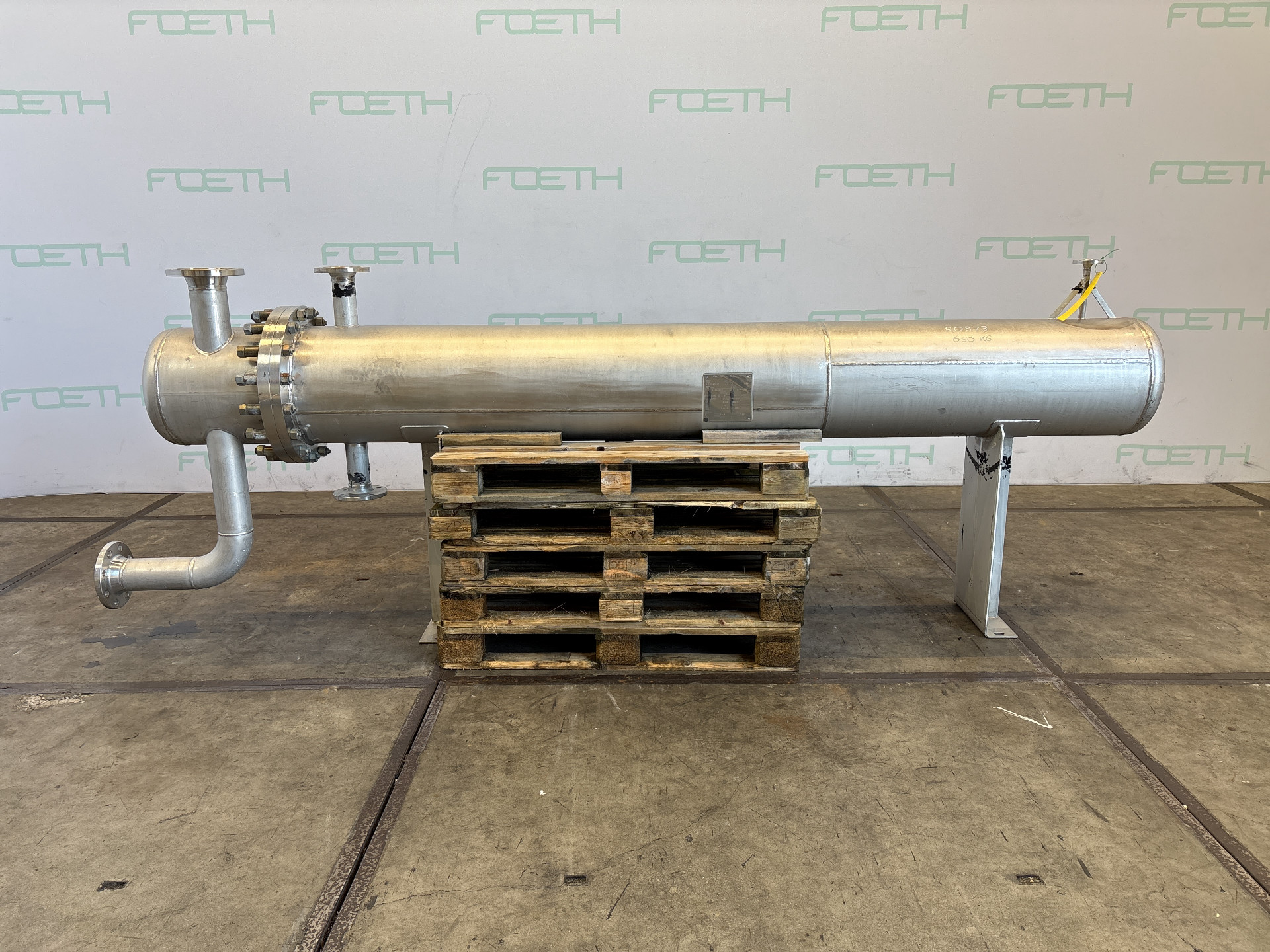

General SKUR0873 MakeJaeggi Guentner AG (CH) LocationBarneveld Type36,2 m2 Pressure Working pressure shell6 Bar Working pressure tubes10 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface36.2 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface36.2 m2 Tube capacity164 l U-typecheck Number of tubes:120 Tube diameter16 mm Tube length3300 mm Wall thickness tubes1 mm Max. temperature200°C Shell capacity206 l Shell diameter407 mm Shell length2964 mm Wall thickness shell4 mm Max. temperature200°C Shell connectionsDN656 (2x), DN15 (1x) Cover connectionsDN100 (2x) MaterialStainless steel 1.4435 (316L) General No.2613 Year of construction1996 Mounted on legscheck Floorspace3,7 x 0,6 m Total height1,3 m Weight650 kgOils & fatConsumer wastePaints & coatingsPowdered food ...

General SKUR0800 LocationBarneveld Pressure Working pressure2 Bar Vacuum possiblecheck Working pressure vapour evaporator7 Bar Main Features Surface10 m2 Specified Features - Falling film evaporator Falling film evaporatorcheck Heating surface+/- 10m2 Tube capacity225 ltr Number of tubes:24 Tube diameter50mm Tube length2490mm Shell capacity349 ltr Max. temperature200 MaterialStainless steel 1.4435 (316L) General MakeJaeggi Bern (CH) Mach.No.1437 Year of construction1985 Extra Specifications:topcover is missing:Oils & fatFine chemicalsOther chemicalFalling film evaporatorsFeed additivesSolventsFood additivesLubricants & oleoAnimal feedBeveragesAPIJaeggi BernIndustries > Food & Feed > Oils & fatIndustries > Chemical > Fine chemicalsIndustries > Chemical > Other chemicalColumns > Falling film evaporatorsIndustries > Food & Feed > Feed additivesIndustries > Chemical > ...

General SKUR0803 LocationBarneveld MakeJaeggi Güntner (CH) Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell7 Bar Vacuum possible shellcheck Working pressure tubes9 Bar Tubular vacuum possiblecheck Working pressure vapour evaporator13 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface22 m2 Specified Features - Falling film evaporator Falling film evaporatorcheck Capacity460 kW Number of stages:1 Heating surface22 M2 Tube capacity500 ltr. Number of tubes:112 Tube diameter44,5x2mm Tube length1480mm Shell capacity280 Ltr. Max. temperature200 degr. C Falling film evaporators Heat exchangercheck Verticalcheck Heating surface23 m2 Tube capacity500 ltr Number of tubes:112 Max. temperature-20/200 degr. C Shell capacity280 ltr Shell diameter700mm Shell length2100mm Max. temperature-20/200 d ...
