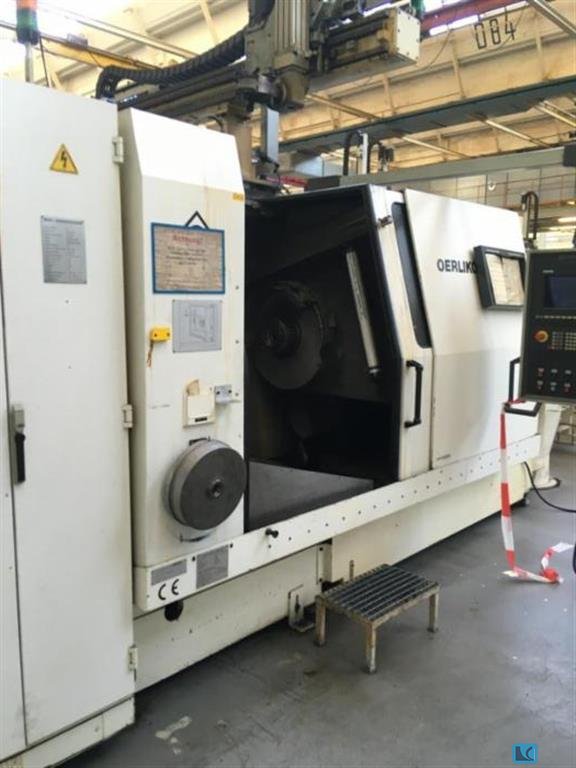

2 OERLIKON c28 maszyny używane

max. wheel diameter:275 mm gear width:55 mm max. module:6,5 min. module:1,5 Face Hobbing-Continious Process Continuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surface C28 can do both, wheel + pinion. However, a C28 must be ?prepared? for the individual part procedure. I.e. direct measuring system + part gear brake, w ...

max. wheel diameter:275 mm gear width:55 mm max. module:6,5 min. module:1,5 Face Hobbing-Continious Process Continuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surface C28 can do both, wheel + pinion. However, a C28 must be ?prepared? for the individual part procedure. I.e. direct measuring system + part gear brake, w&n ...
