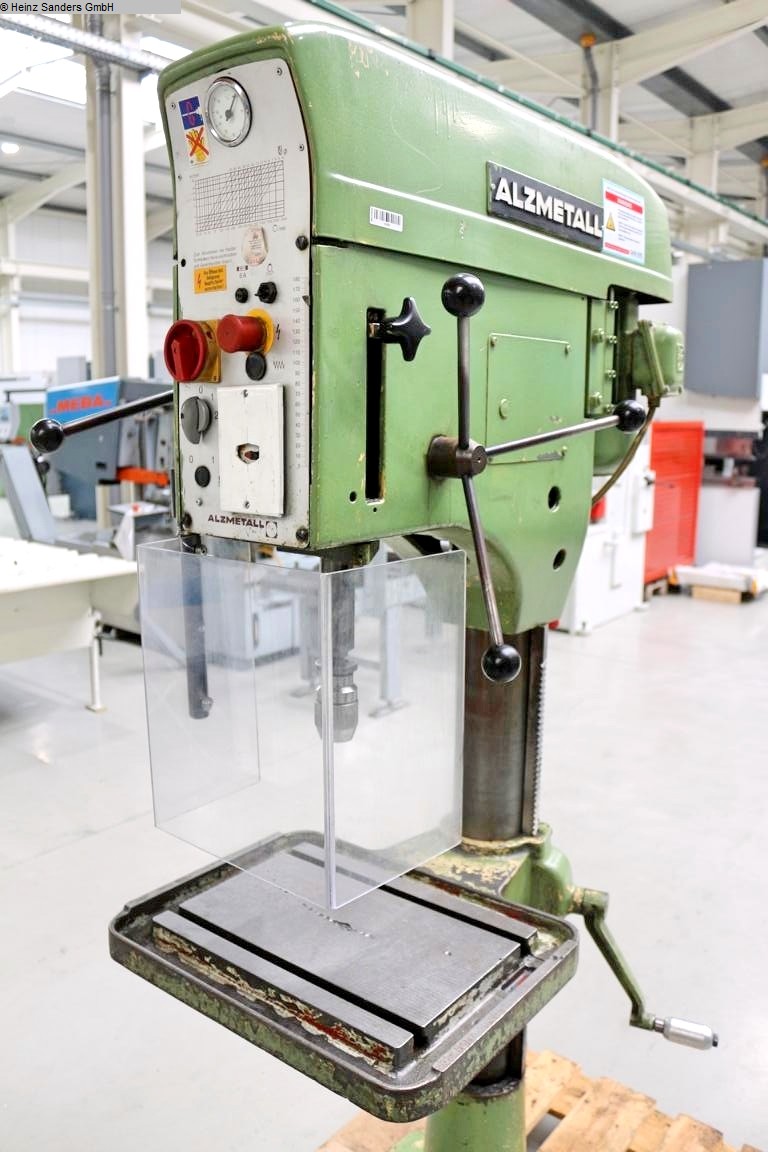

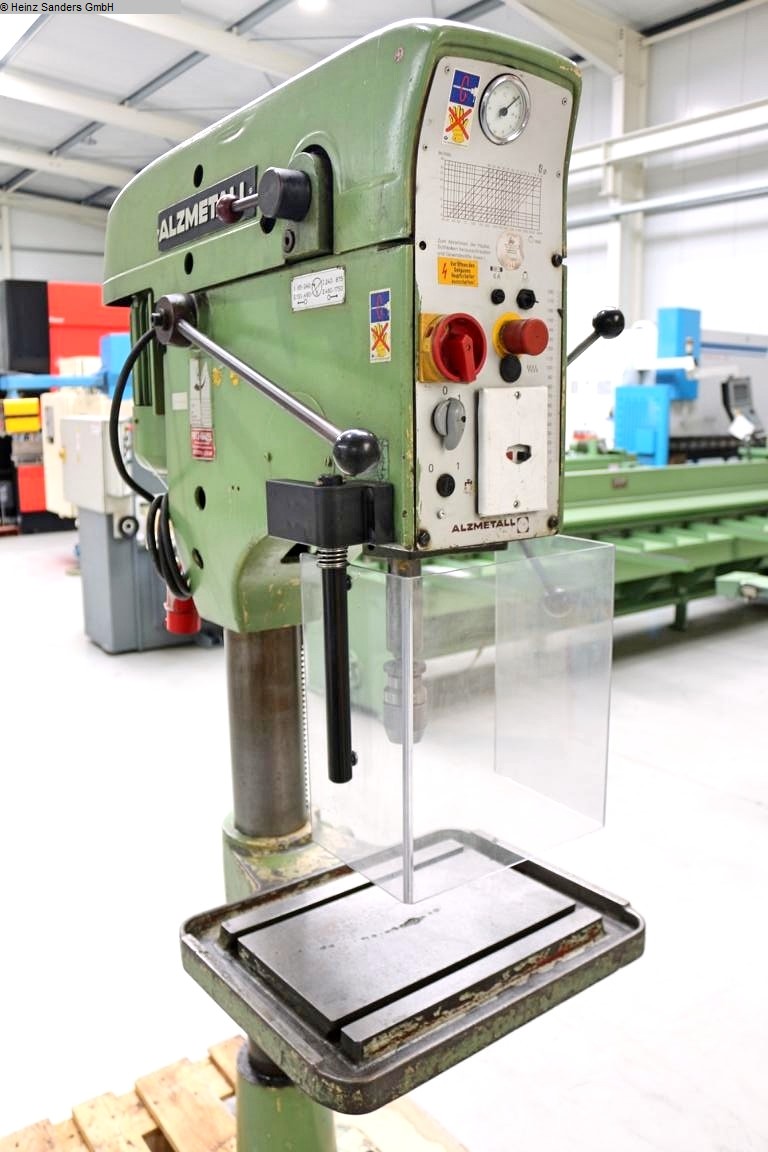

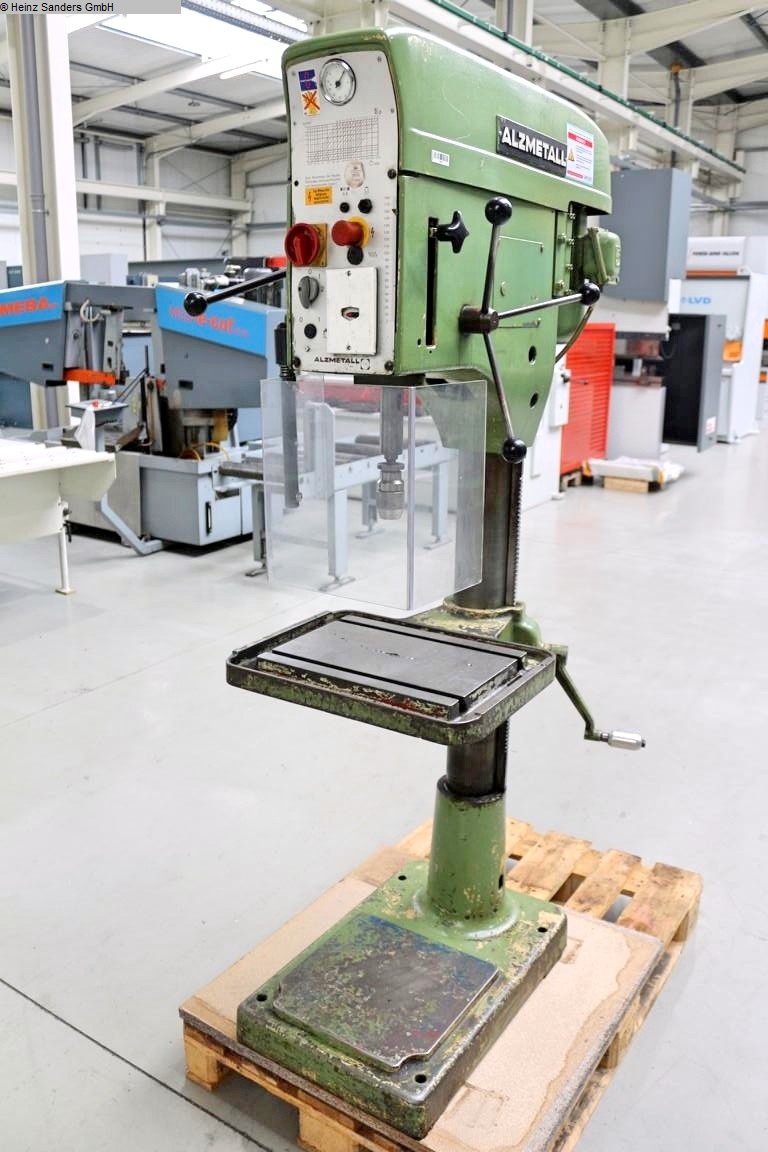

ALZMETALL AB 35 ESV
maszyny do obróbki metalu / wiertarkofrezarki i centra obróbcze / wiertarki kolumnie
bore capacity in steel (diameter): 35.0 / 40.0 mmthroat: 300 mmbore stroke: 180 mmturning speeds: 65 - 1750 U/mintable-size: 515 x 400 mmcolumn diameter: 155 mmspindle taper MT: 4 MKengine output: 0.9 / 1.3 kWweight: 450 kgrange L-W-H: 800 x 650 x 1850 mmFeatures:- Heavy-duty column drill press- ...
Producent: ALZMETALL
Model:AB 35 ESV
Numer pozycji: 170336028
Ilość: 1
Data: 17.10.2026
Rok produkcji: 1982
Lokalizacja: 48683 Ahaus
Cena:
Maszyna w magazynie:Tak
Seller-item-No.:1125-9103781
bore capacity in steel (diameter): 35.0 / 40.0 mm
throat: 300 mm
bore stroke: 180 mm
turning speeds: 65 - 1750 U/min
table-size: 515 x 400 mm
column diameter: 155 mm
spindle taper MT: 4 MK
engine output: 0.9 / 1.3 kW
weight: 450 kg
range L-W-H: 800 x 650 x 1850 mm
Features:
- Heavy-duty column drill press
- Drive: VARIO V-belt
Stepless speed adjustment

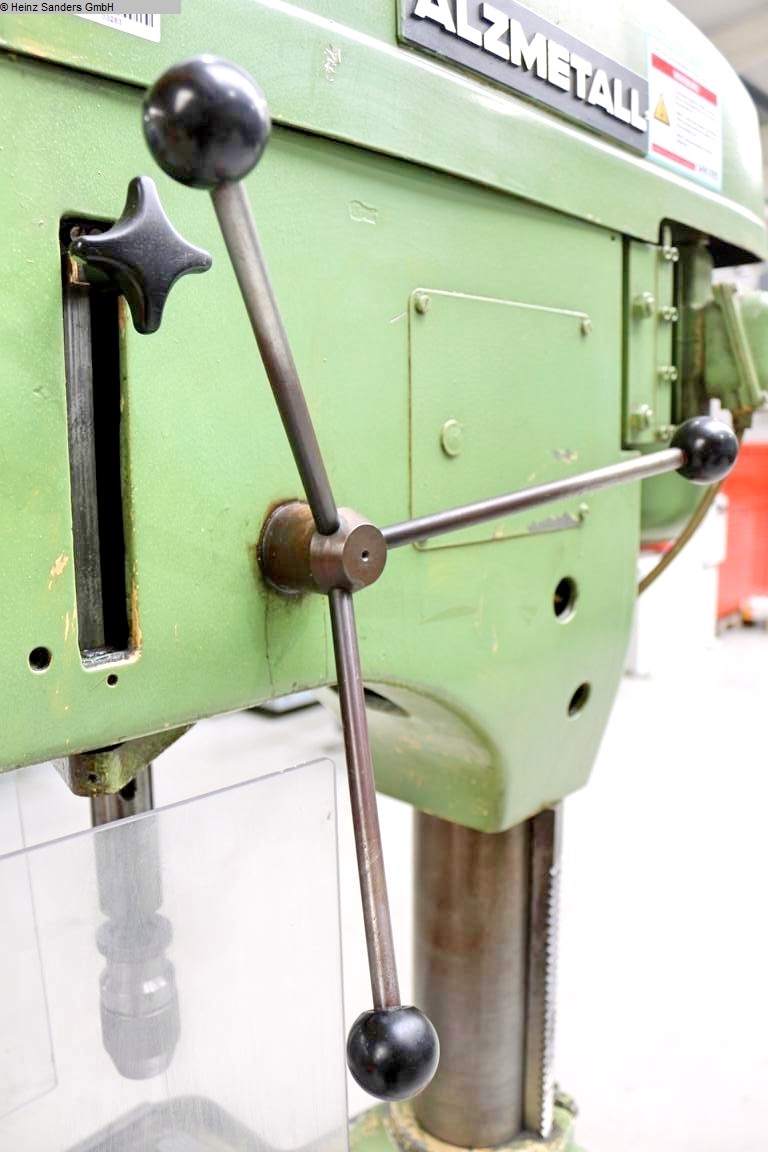

- Manual spindle feed
- Reversible motor
- Clockwise rotation of the drill spindle
- Adjustable fixed depth stop

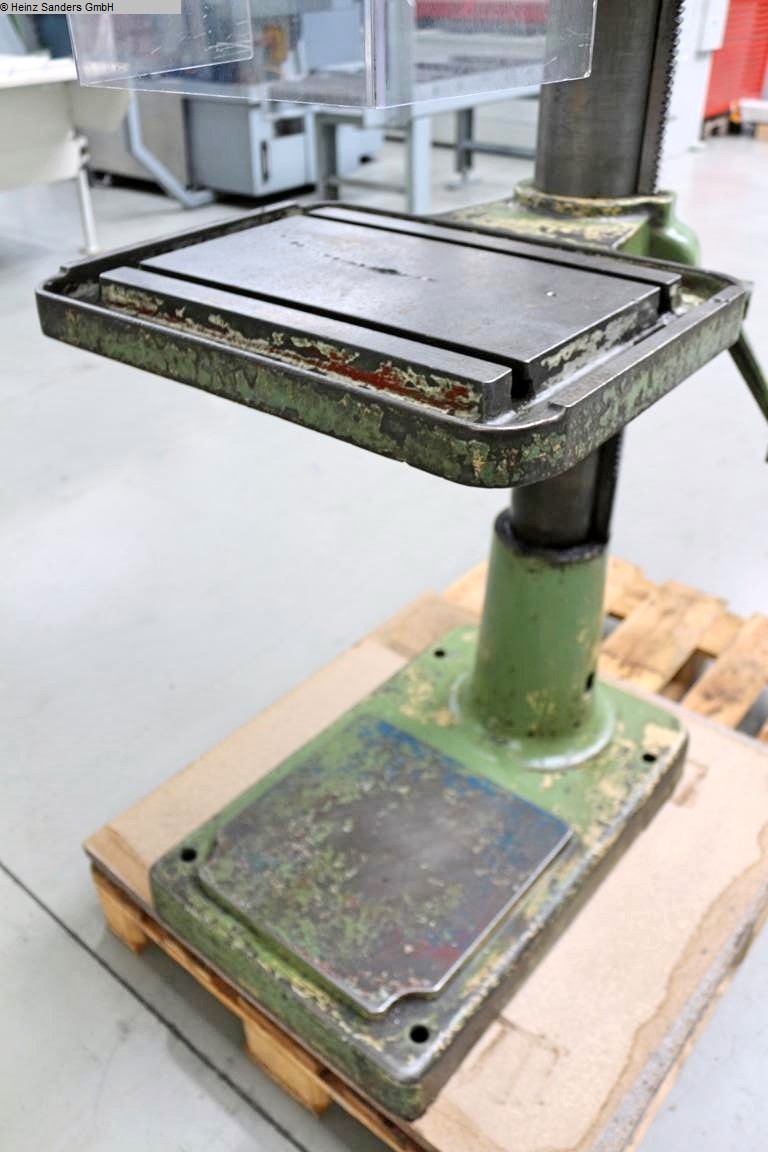

- Machine table with 2 T-slots
Height-adjustable via hand crank
- Machine light

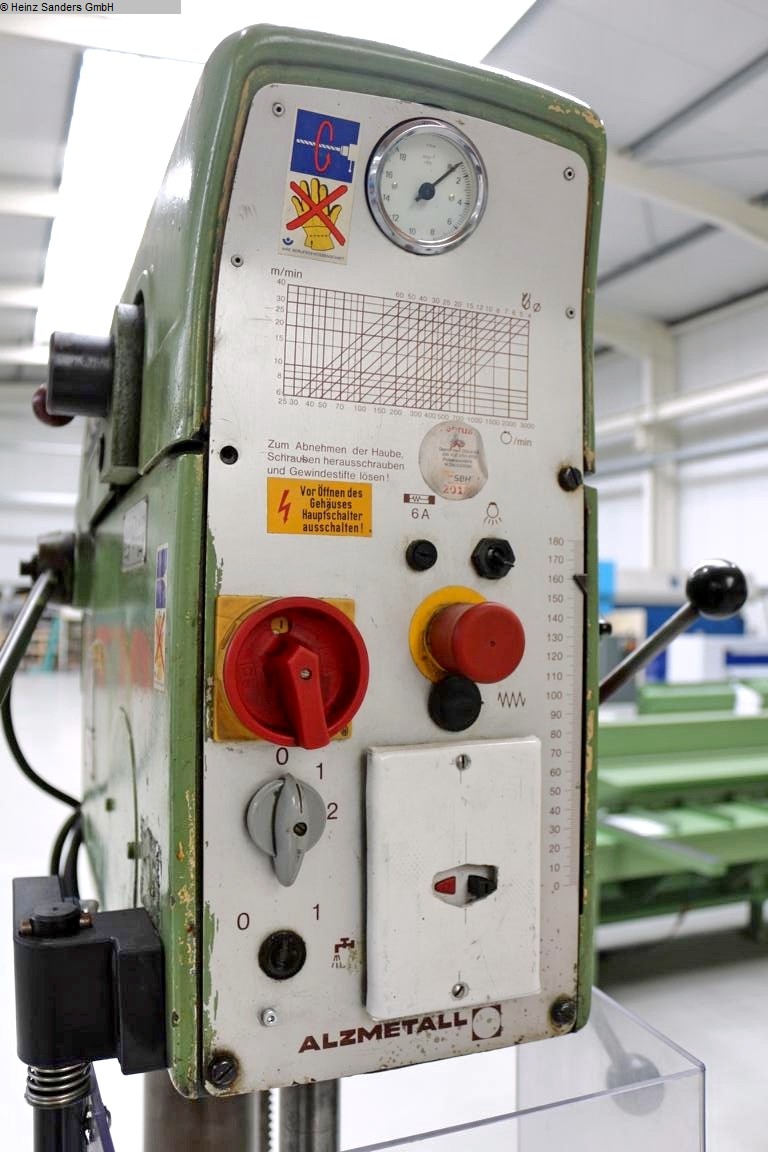

- Emergency stop button on the front
- User manual (PDF)
