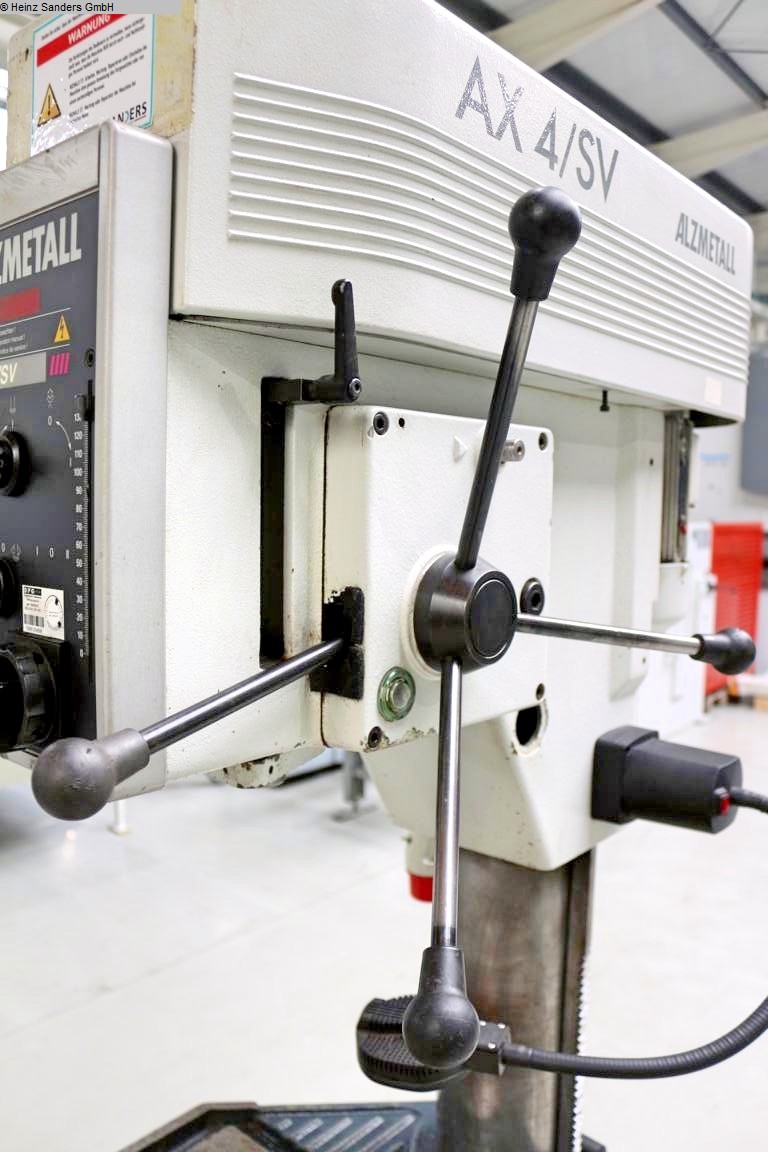

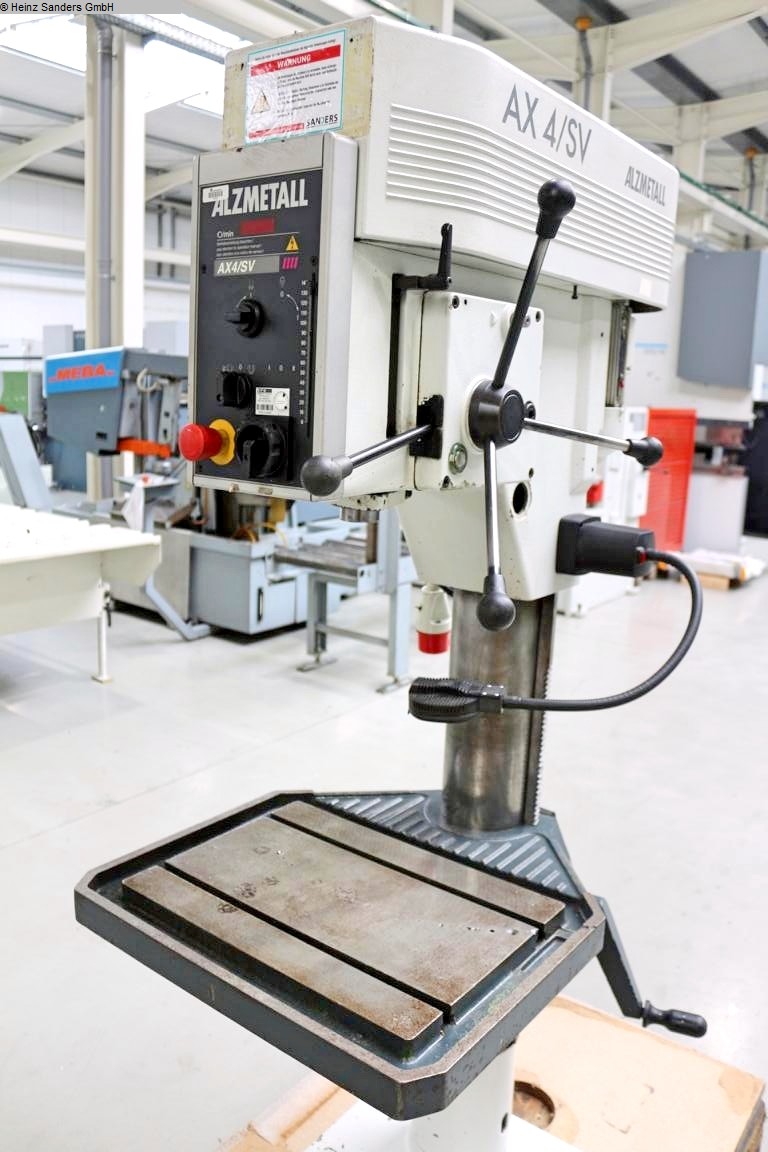

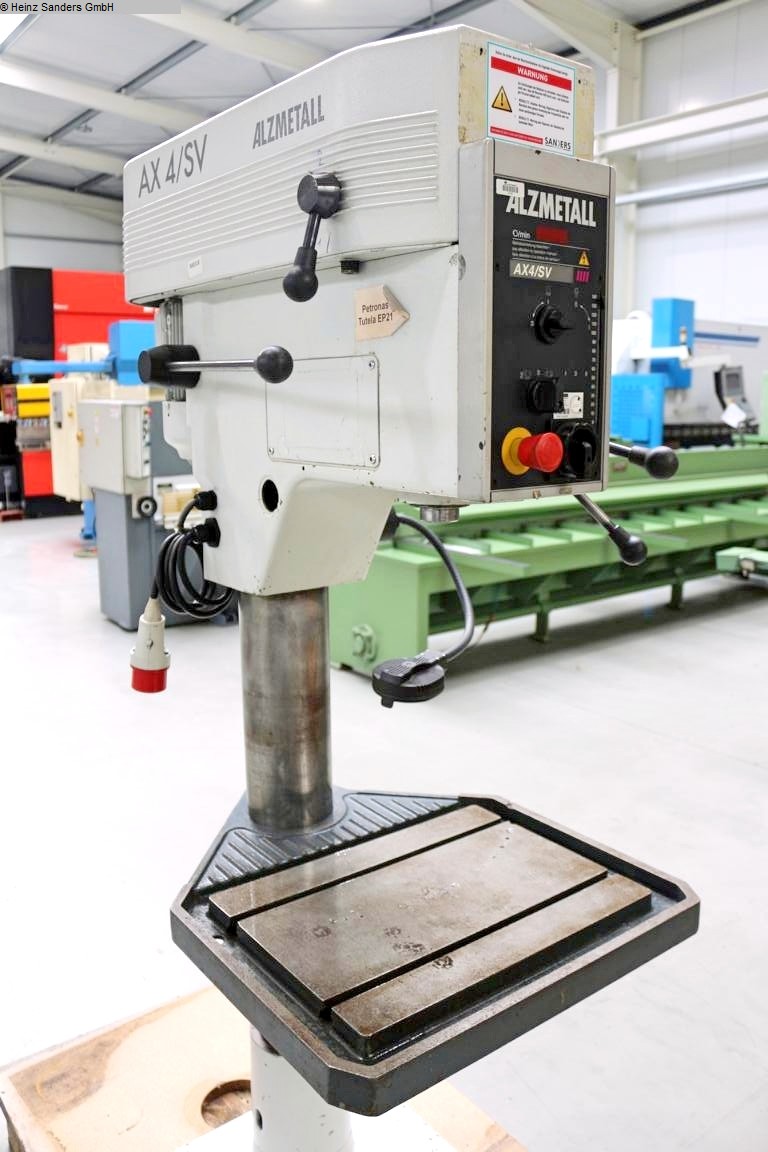

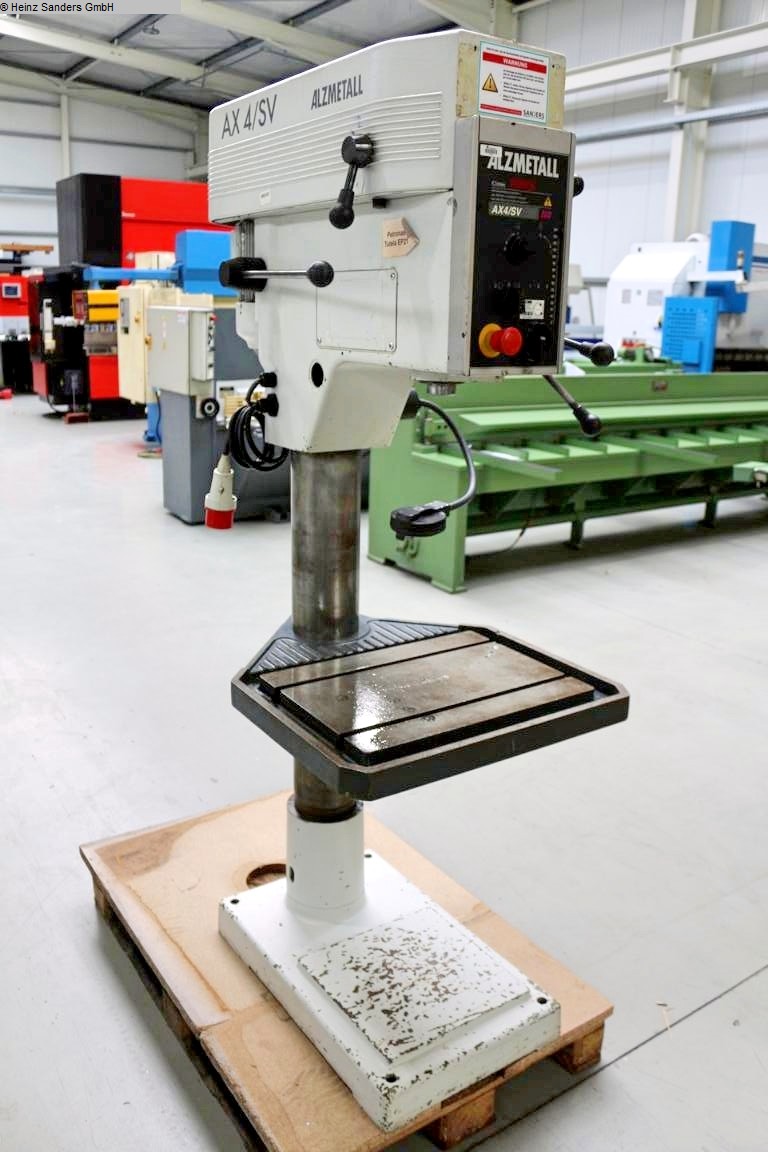

ALZMETALL AX 4 SV
maszyny do obróbki metalu / wiertarkofrezarki i centra obróbcze / wiertarki kolumnie
bore capacity in steel (diameter): 55.0 mmthroat: 300 mmbore stroke: 140 mmturning speeds: 70 - 2300 U/mintable:: 615 x 430 mmbore spindles - Morse Taper: 4 Kurzspindel MKcolumn diameter: 145 mmfeed: 0.10 + 0.30 mm/Udistance spindle /table: 150 / 735 mmweight: 380 kgheight of the machine: ca. 1.850 ...
Producent: ALZMETALL
Model:AX 4 SV
Numer pozycji: 170336030
Ilość: 1
Data: 17.10.2026
Rok produkcji: 2006
Lokalizacja: 48683 Ahaus
Cena:
Maszyna w magazynie:Tak
Seller-item-No.:1125-9103787
bore capacity in steel (diameter): 55.0 mm
throat: 300 mm
bore stroke: 140 mm
turning speeds: 70 - 2300 U/min
table:: 615 x 430 mm
bore spindles - Morse Taper: 4 Kurzspindel MK
column diameter: 145 mm
feed: 0.10 + 0.30 mm/U
distance spindle /table: 150 / 735 mm
weight: 380 kg
height of the machine: ca. 1.850 mm
Current list price: approx. 15,000 euros
Special price available upon request
Features:
- Robust INDUSTRIE column drill press
Drive: VARIO V-belt
- Automatic spindle feed
Feed mechanism: 0.1 + 0.3 mm/rev
Feed overload protection
- Stepless speed adjustment

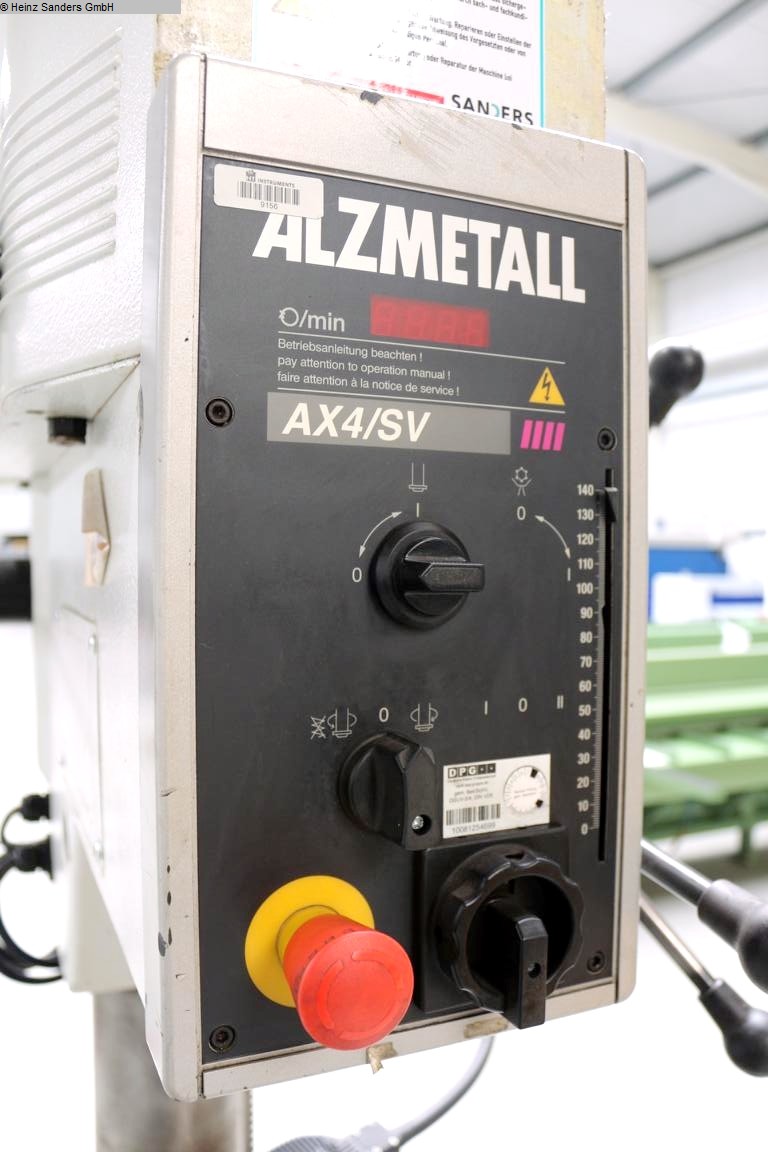

Includes digital speed display

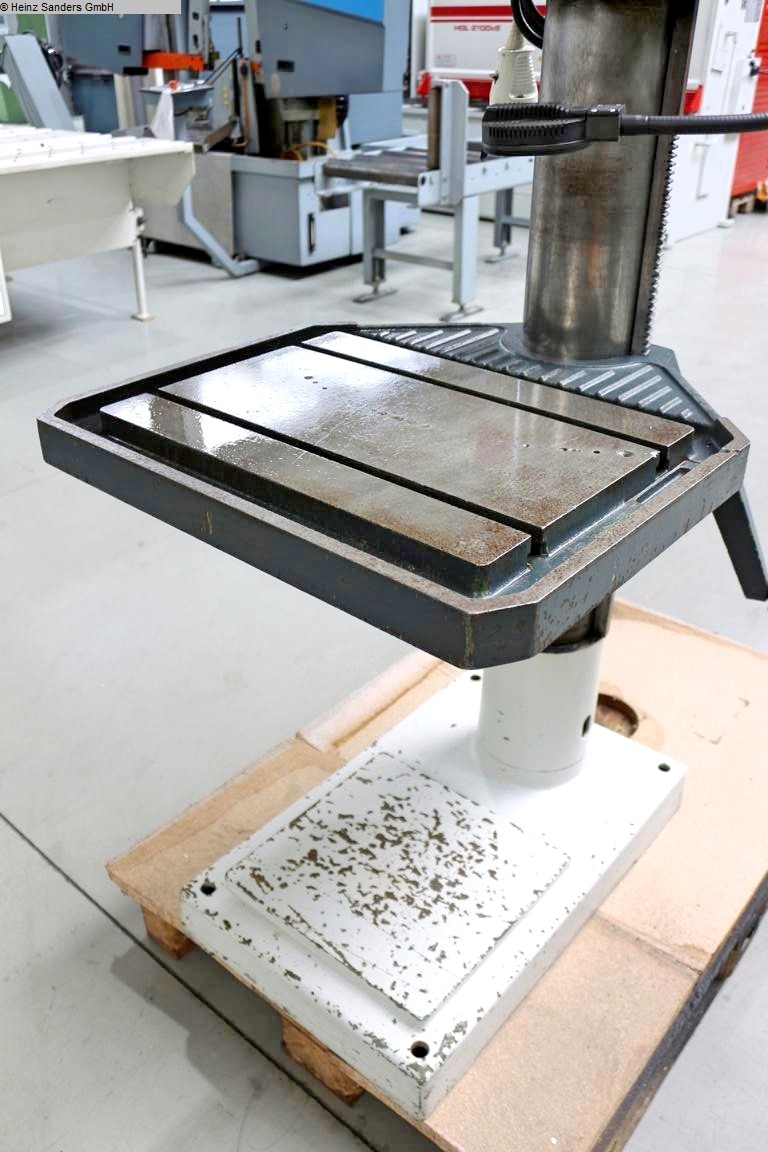

- Height-adjustable worktable with 2 T-slots
- Right/left rotation of the work spindle
- Emergency stop button on the front
- User manual (PDF)
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
throat: 300 mm
bore stroke: 140 mm
turning speeds: 70 - 2300 U/min
table:: 615 x 430 mm
bore spindles - Morse Taper: 4 Kurzspindel MK
column diameter: 145 mm
feed: 0.10 + 0.30 mm/U
distance spindle /table: 150 / 735 mm
weight: 380 kg
height of the machine: ca. 1.850 mm
Current list price: approx. 15,000 euros
Special price available upon request
Features:
- Robust INDUSTRIE column drill press
Drive: VARIO V-belt
- Automatic spindle feed
Feed mechanism: 0.1 + 0.3 mm/rev
Feed overload protection
- Stepless speed adjustment
Includes digital speed display
- Height-adjustable worktable with 2 T-slots
- Right/left rotation of the work spindle
- Emergency stop button on the front
- User manual (PDF)
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
