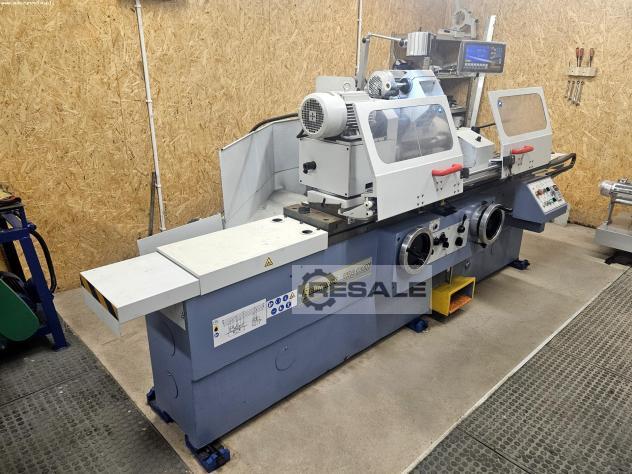

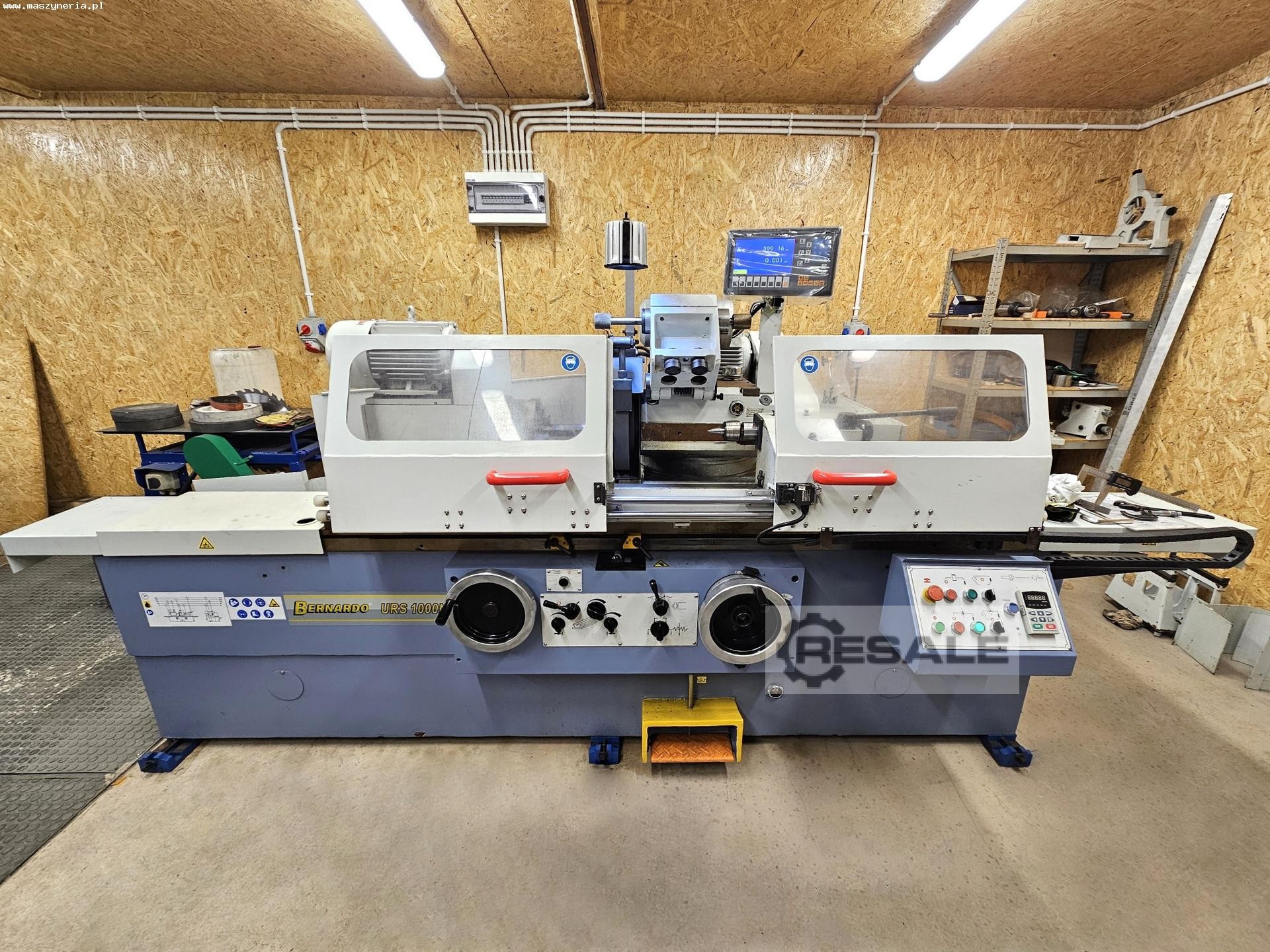

BERNARDO URS 1000 N universal grinding machine was built in 2021 in Austria by PWA Handelsgesellschaft m.b.H. It is an extremely versatile machine for precision grinding of both cylindrical and internal surfaces with a maximum length of 1000 mm. The best machining results during even the most intensive challenges are guaranteed by the precisely aligned work head with stable grinding wheel spindle. The grinding wheel spindle features adjustable sliding bearings consisting of three segments. It is adjusted hydraulically or manually according to the operator’s needs. Movement in the X and Y axes, in turn, takes place on precision, hand-grooved guides, ensuring high accuracy and smooth movements.

The BERNARDO URS 1000 N also stands out for its sturdy, heavily ribbed construction with large panels, which is resistant to temperature fluctuations and deformation. The work table can be tilted in the range from +3° to -7°, enabling the machining of cones in two directions. Its longitudinal travel is controlled manually via a handwheel or automatically via a hydraulic feed. The feed speed is steplessly adjustable with a programmable hold time at the end of each table movement. The offer also includes an extensive range of equipment, consisting of, among others, a hydraulic tailstock, grinding wheel dressing device and digital readout. The BERNARDO URS cylindrical and internal grinding machine weighs 3700 kg.

Technical specifications of the BERNARDO URS 1000 N cylindrical grinding machine
General data
- maximum external diameter of workpiece: 320 mm
- minimum external diameter of workpiece: 8 mm
- maximum internal grinding diameter (with steady rest): 100 mm
- minimum internal grinding diameter (with steady rest): 35 mm
- maximum internal grinding diameter (without steady rest): 100 mm
- minimum internal grinding diameter (without steady rest): 30 mm
- maximum internal grinding depth: 125 mm
- distance between centres (maximum grinding length): 1000 mm
- centres height: 180 mm
- maximum workpiece weight: 150 kg
- work table longitudinal travel: 1000 mm
- rapid traverse (hydraulic): 50 mm/min
- work table feed rate: 0.1-4 m/min
- working table tilting range: +3°/-7°

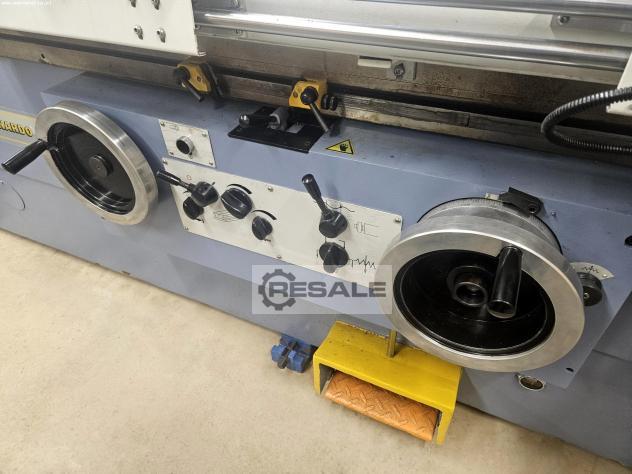

- work table manual travel per handwheel revolution: 6 mm
- power: 9 kW
- power supply: 400 V; 50 Hz
- dimensions (L x W x H): 3700 x 1900 x 1500 mm
- weight of the BERNARDO URS 1000N machine: 3700 kg

Main spindle
- maximum rotational speed: 220 rpm
- minimum rotational speed: 25 rpm

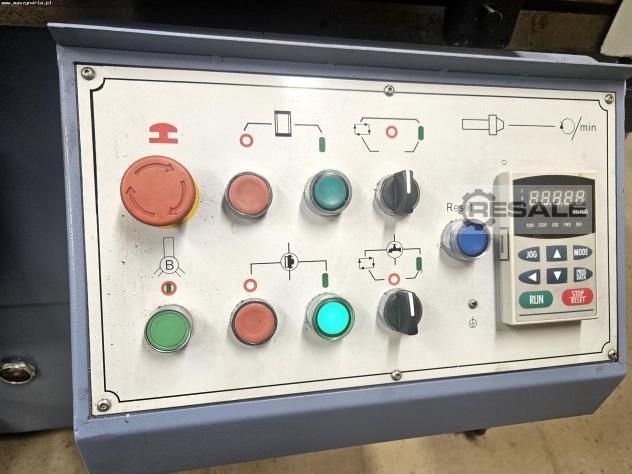

- rotational speed adjustment: stepless
- tilting range: 90°
- taper: MK4
- drive power: 1.5 kW

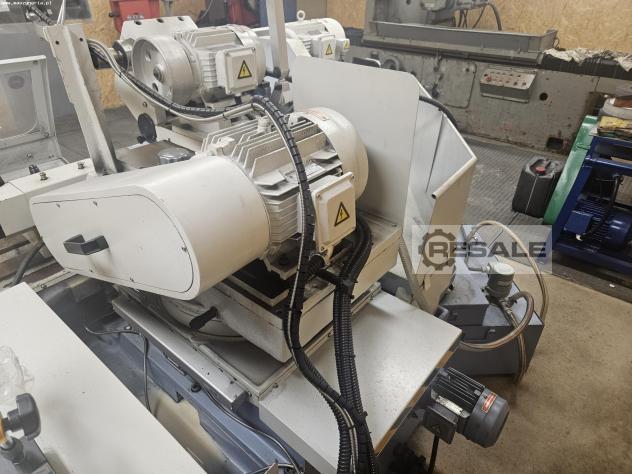

Grinding wheel spindle
- maximum grinding wheel dimensions (diameter x width x bore): 400 x 50 x 203 mm
- grinding wheel spindle rotational speed: 1670 rpm
- grinding wheel spindle rotational speed for internal grinding: 10000 rpm

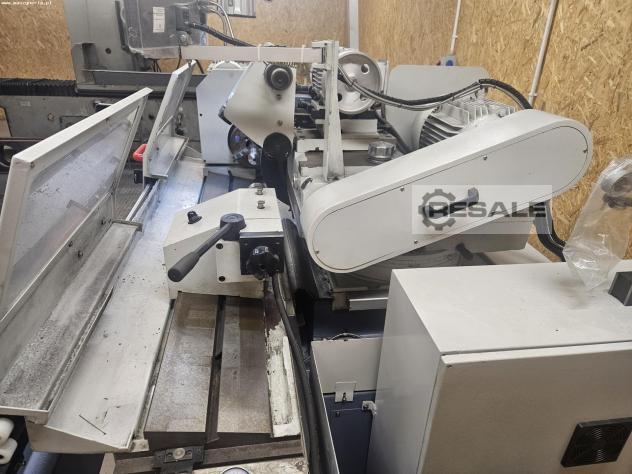

- work head tilting range: ± 30°
- grinding head travel: 180 mm
- scale division: 0.0025 mm
- grinding wheel spindle drive power: 5.5 kW
- grinding wheel spindle for internal grinding drive power: 1.1 kW

Hydraulic tailstock
- tailstock sleeve extension: 30 mm
- taper: MK4

Equipment of the BERNARDO internal grinding machine

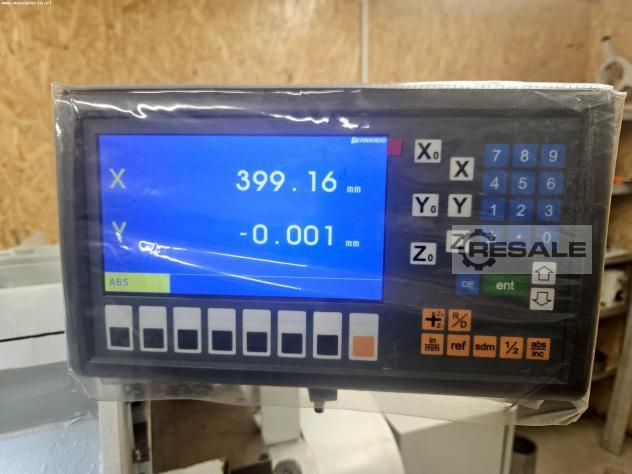

- digital readout
- hydraulic tailstock

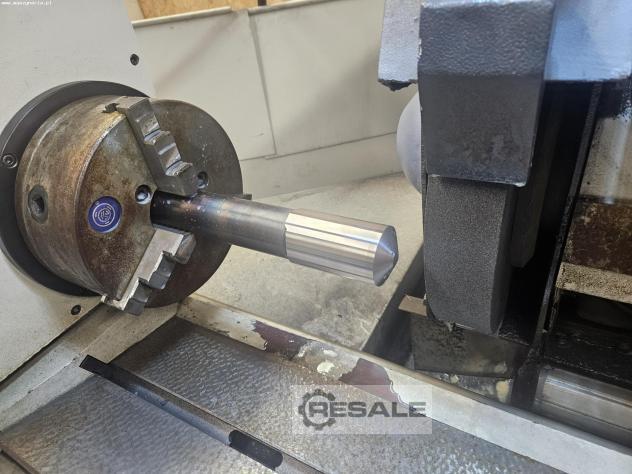

- 3-jaw chuck fi 200 mm
- device for internal grinding
- grinding wheel dressing device
- grinding wheel balancing stand
- measuring plate
- steady rest
- coolant system
- halogen lamp
- workspace covers

(The technical parameters given may differ slightly from reality. A verification with the actual capabilities of the offered machine is required.)
