Wiertarki CMA TRD 38 CNC 3000

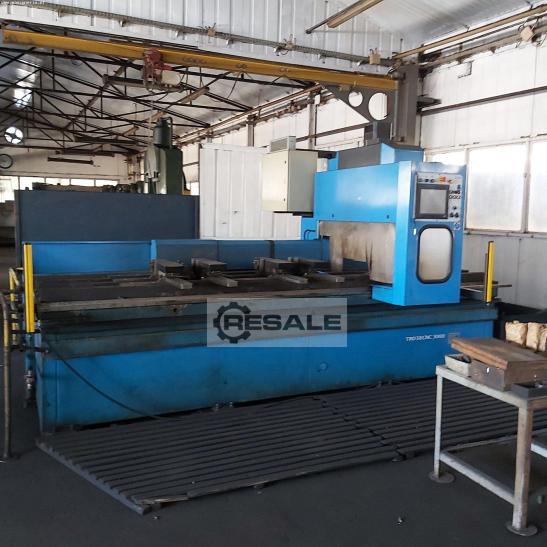

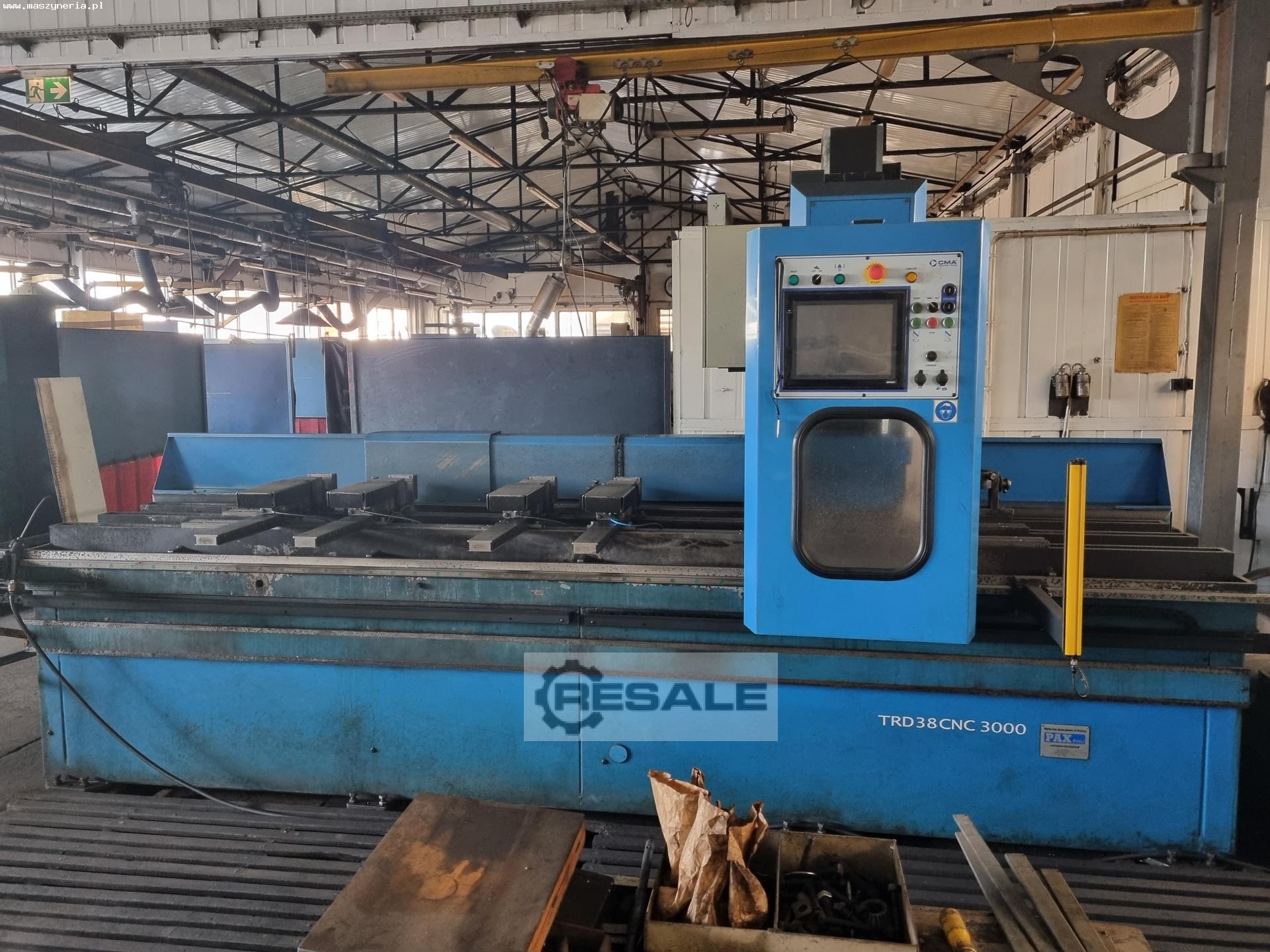

CMA TRD 38 CNC 3000 CNC drilling machine was built in 2015 in Spain by COMERCIAL DE MAQUINARIA ALZIRA S.L. The machine, designed for drilling precision holes and threading, is an excellent choice for companies specialising, among others, in the construction of machinery, the production of steel structures or the production of other industrial installations. The machine is characterised by, among others, a movable, precise work head and an extremely stable design, made of sections with thickened and reinforced walls.

The machining process is performed in three axes (X,Y,Z). In order to achieve excellent dynamic and repeatable feeds, movement in all axes takes place on hardened, high-quality linear guides. All running components are also continuously and fully automatically lubricated, ensuring uninterrupted machine operation for many years of use. The CMA TRD 38 CNC beam drilling machine is offered with, among others, an intelligent CNC controller and a drill sharpener. The total weight of the machine is 4300 kg.

Technical specifications of the CMA TRD 38 CNC 3000 CNC metal drilling machine
- CNC controller
- drilling capacity: 38 mm
- threading capacity: M24
- feed rate in the X/Y/Z axis: 30/25/4.8 m/min
- work table dimensions (L x W): 3000 x 725 mm
- M5651405 work table load capacity: M5651405 1000 kg/m2
- maximum spindle rotational speed: 2500 rpm
- spindle drive power: 22.5 kW
- lubrication system
- cooling system
- cooling pump power: 0.8 kW
- cooling pump maximum pressure: 4 bar
- cooling pump flow rate: 22-66 l/min
- power: 8.9 kW
- noise level: 58 dB
- power supply: 400 V
- weight of the CMA TRD 38 CNC 3000 machine: 4300 kg

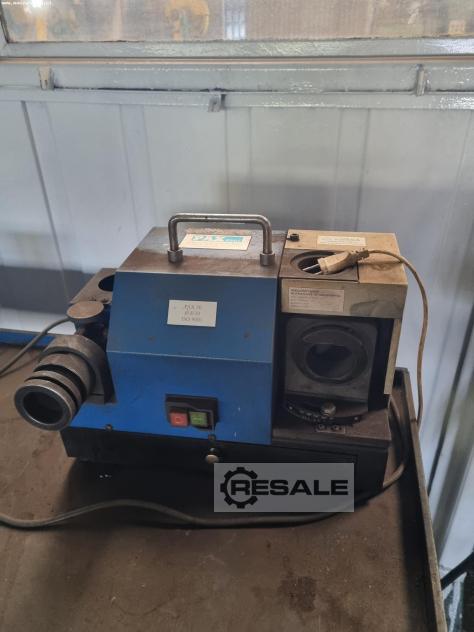

Technical specifications of the PAX 30 drill grinder
- maximum drill bit diameter: 25 mm
- drill bit material: HSS, cobalt, carbide
- chuck ER-40
- number of holders: 11
seller offer No. resale 167427326
