Prasy warsztatowe DURENDUS 100 T Werkstattpresse

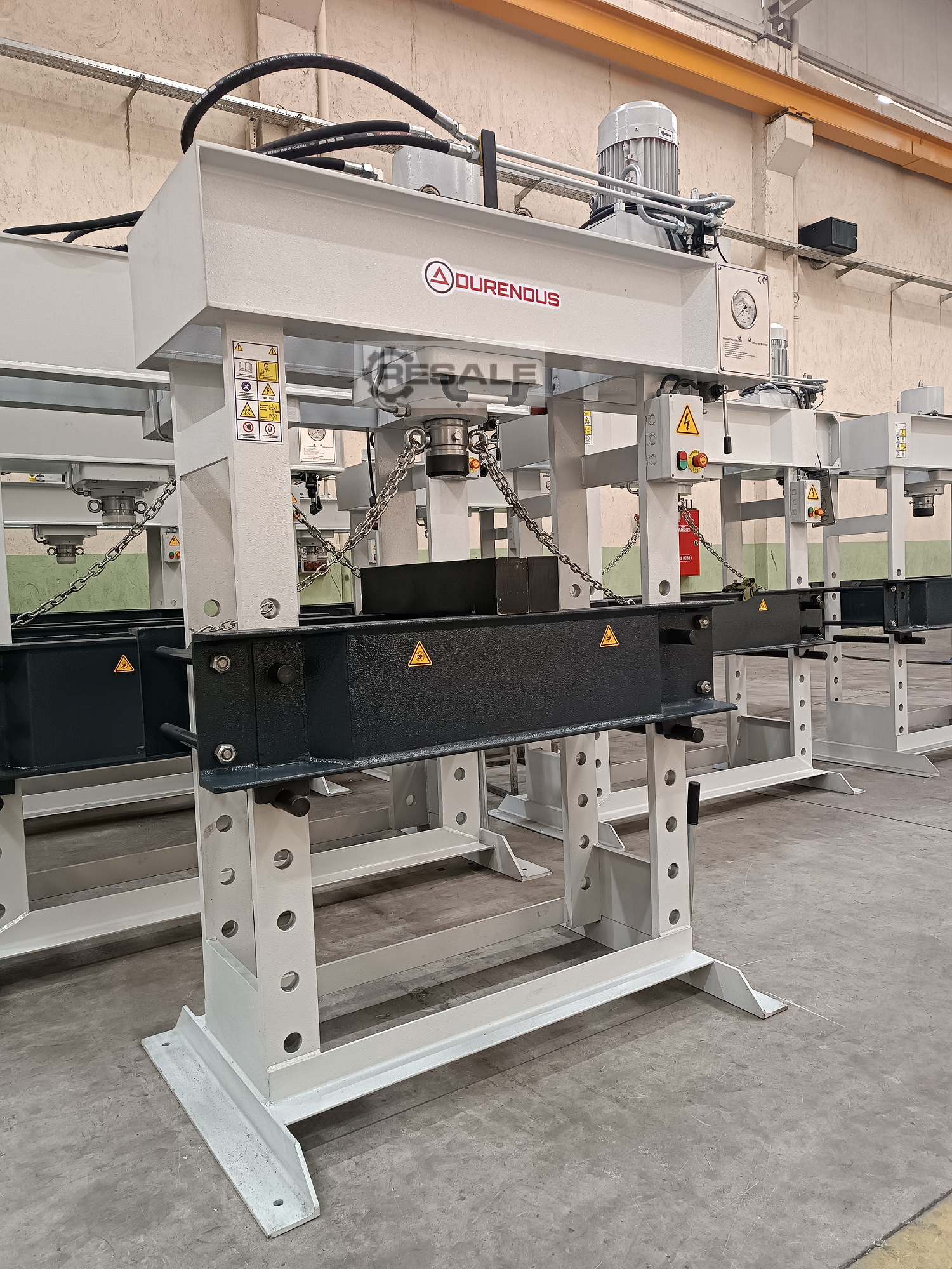

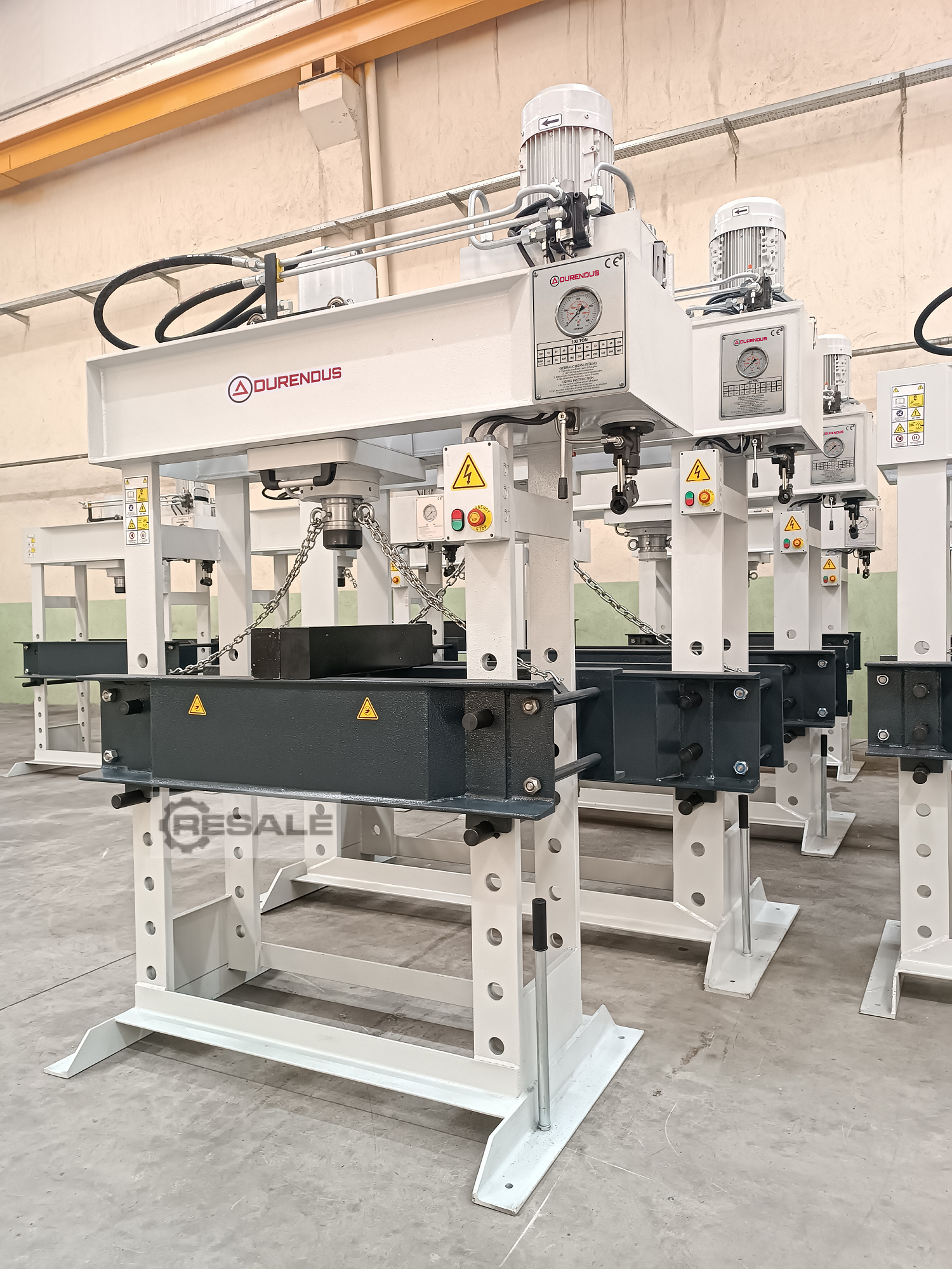

Pressure: 100 t DURENDUS 100 T Workshop Press – Single Column Press – 1,000 mm Clear Width, 400 mm Stroke

The machine shown here has already been built and delivered on behalf of a customer. We can manufacture this machine for you at very short notice – gladly taking individual options into account. It is a hydraulic workshop press for press-fitting, straightening and assembly work in the workshop and industrial sector.

Base price: 5.990 € net

Options (on request):
The options listed are based on completed customer projects and enable the machine to be specifically adapted to the respective application. The basic machine represents a functional basic design – in practice, in most cases it is expanded with additional equipment and configured accordingly for the specific project.

X-shaped T-slot table top 650 × 900 × 90 mm
Pressure adjustment
Lateral displacement of the press piston (700 mm)
Bending tool
Anti-rotation cylinder with manual travel path adjustment
V-profile trestle in combination with table top
LED lighting
Footswitch
Cooling



Technical data + information:

General information

Type: Workshop press
Press force: 100 t (optionally adjustable)
Total weight: approx. 900 kg
Overall dimensions (W × D × H): 1,600 × 900 × 2,550 mm

Workspace

Clear width: 1,000 mm
Open depth: 350 mm
Installation height: 250–900 mm (variable)

Table & Pestle

Usable width: 1,000 / 620 mm
Plunger stroke: 400 mm
Cylinder diameter: Ø 190 mm
Piston rod: Ø 115 mm
Height adjustment: via chain mechanism

Speeds

Idle speed: 8.5 mm/s
Return speed: 13.4 mm/s

Hydraulics & Drive

Pump capacity: 14.5 l/min
Motor power: 4 kW
Hydraulic tank: 29 l
Pressure accuracy: ±5 bar
Hydraulic system: DUPLOMATIC

Control & Operation

Hand lever operation
Manual fine-tuning via hand lever
Connection: 400 V / 50 Hz
Total connected load: approx. 4.5 kW

Equipment

Height-adjustable cross members with bolt lock
Chain mechanism for table adjustment
Pressure gauge for pressure indication
Emergency stop switch
CE Certification
Two-layer painting according to RAL



Press-fit, press-fit, assembly work, straightening work, workshop applications, maintenance

Workshop Press, Hydraulic Press, Single Column Press, C-Frame Press, Assembly Press, Straightening Press, Industrial Press

Are you looking for a hydraulic press tailored to your application? Contact us for an individual offer. Our hydraulic presses are manufactured in accordance with German Machinery Directives, as well as European Machinery Directives (Directive 2006/42/EC), EC standards and EU safety regulations. Furthermore, our presses exceed the Canadian and European safety requirements, as they comply in all points with the Brazilian National Safety Directive No. 12, which is based on it. Our great strength is special machine construction and press automation. We sell tailor-made hydraulic presses at surprisingly low prices. For the hydraulics of the presses, components from leading European manufacturers are mainly installed.
