Wiertarki udarowe GRASS Multiflex

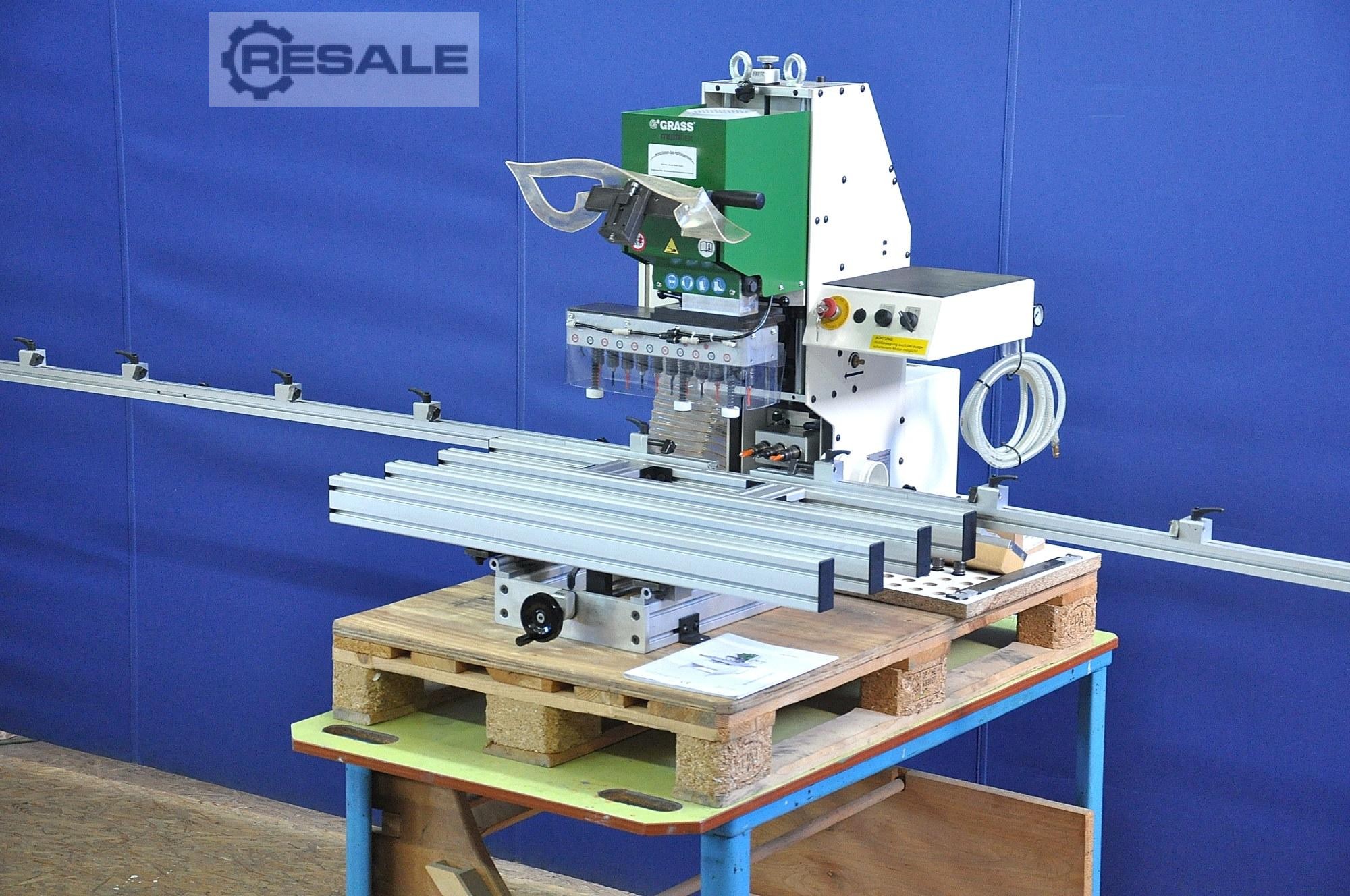

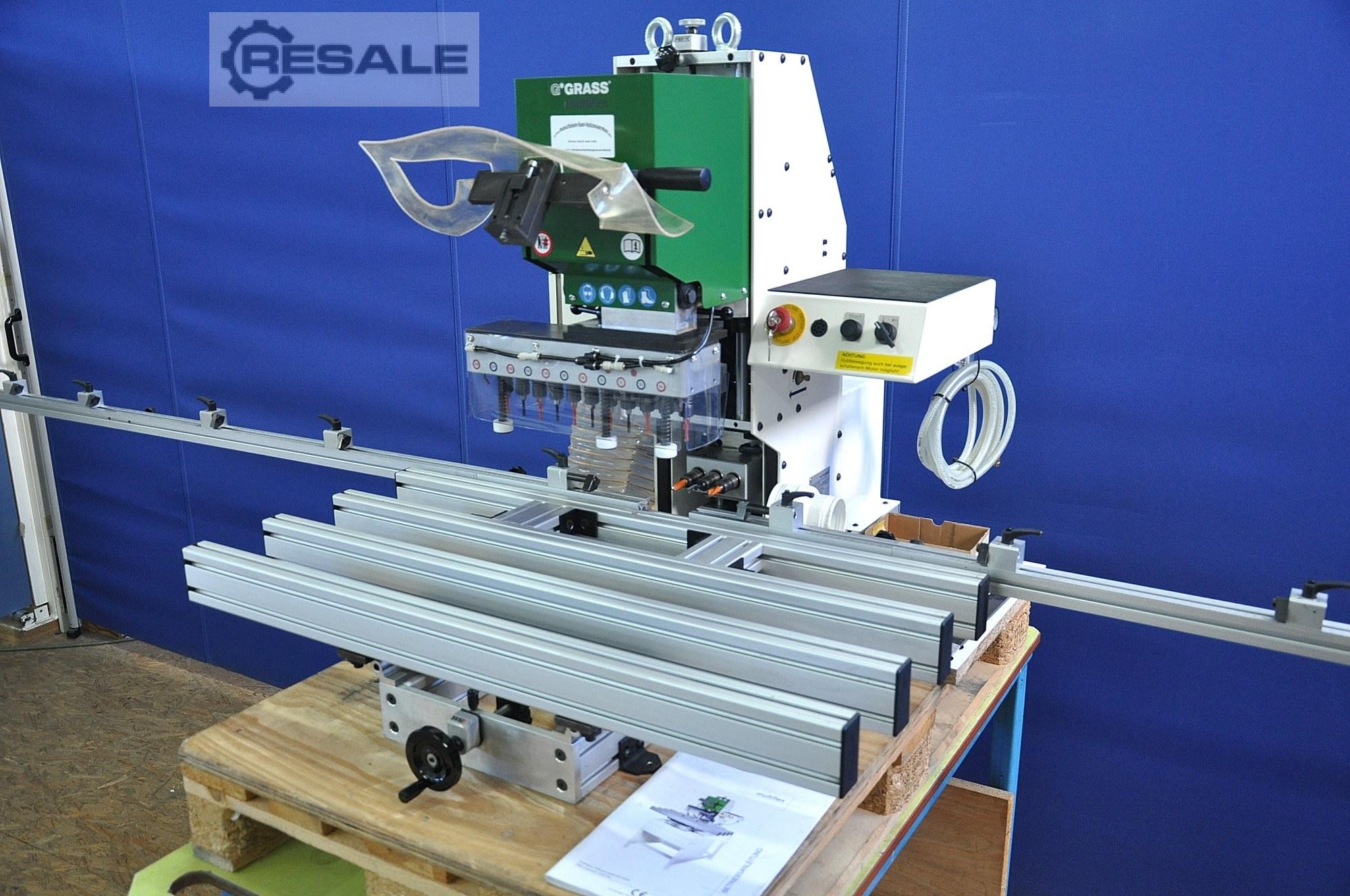

Fitting drill, drilling and press-fit machine for many types of furniture fittings, as well as for drilling the row of holes.
Also suitable for dowel constructions, as horizontal drilling unit is also available

Drive motor 1.8 kW vertical and 1.8 kW horizontal

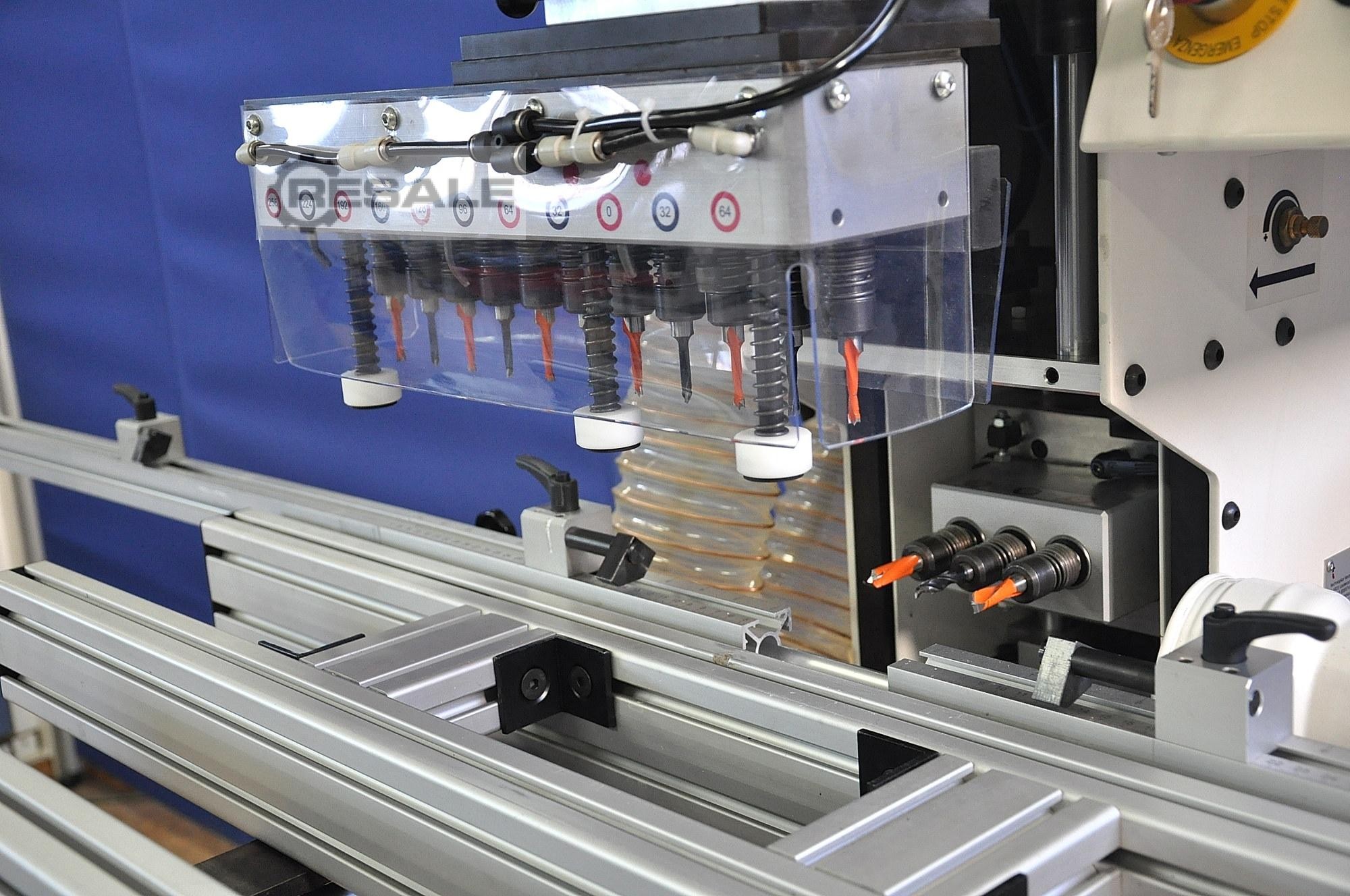

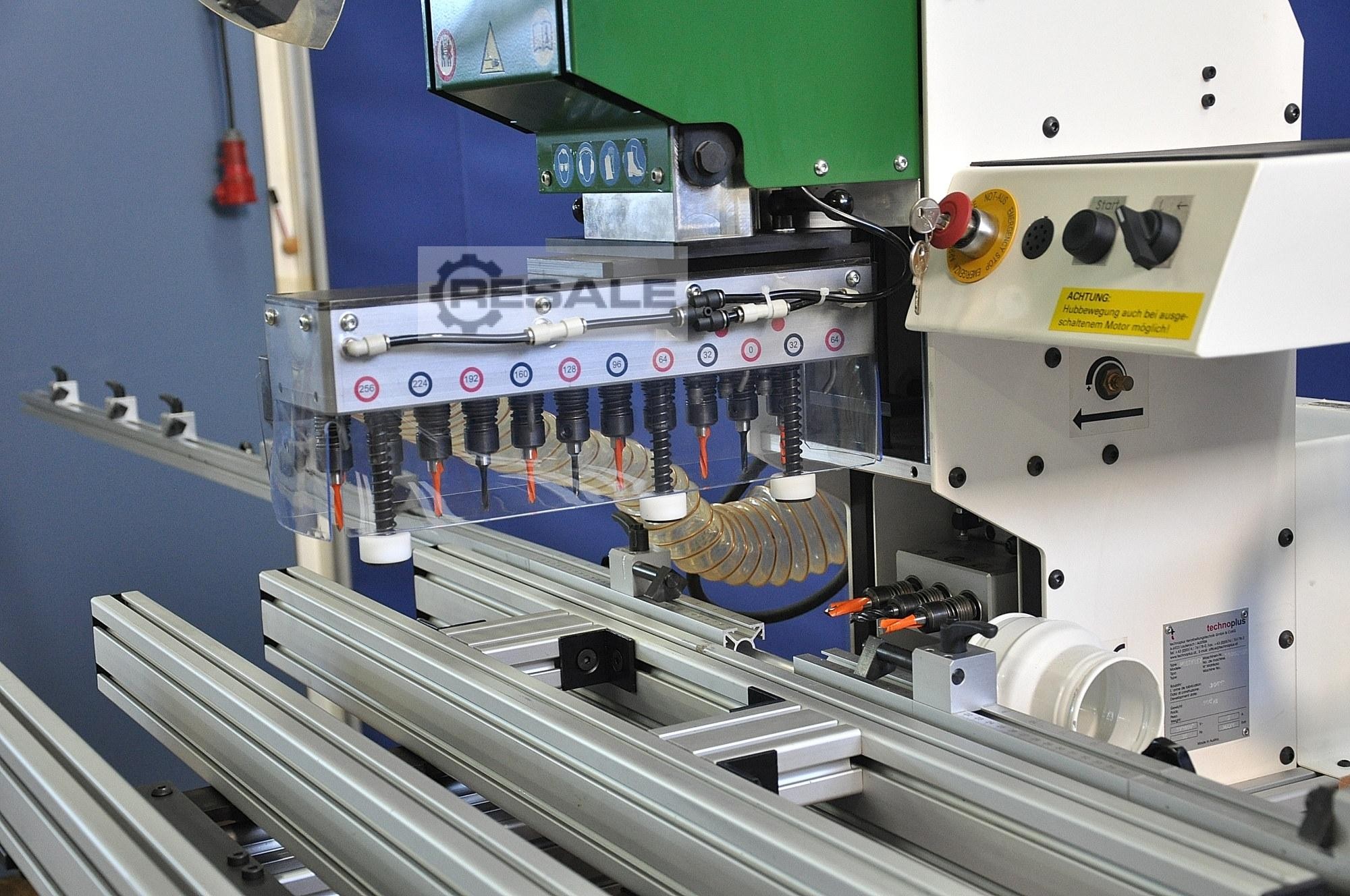

Universal drill head with 11 drilling spindles grid 32mm, as well as three spindles for cup belts, drilling pattern 52 / 5.5mm, e.g. for Hettich
Drill head can be rotated by 90 degrees, making it possible to drill drawer rails
Horizontal Drill Head 3 Spindles Pitch 32mm

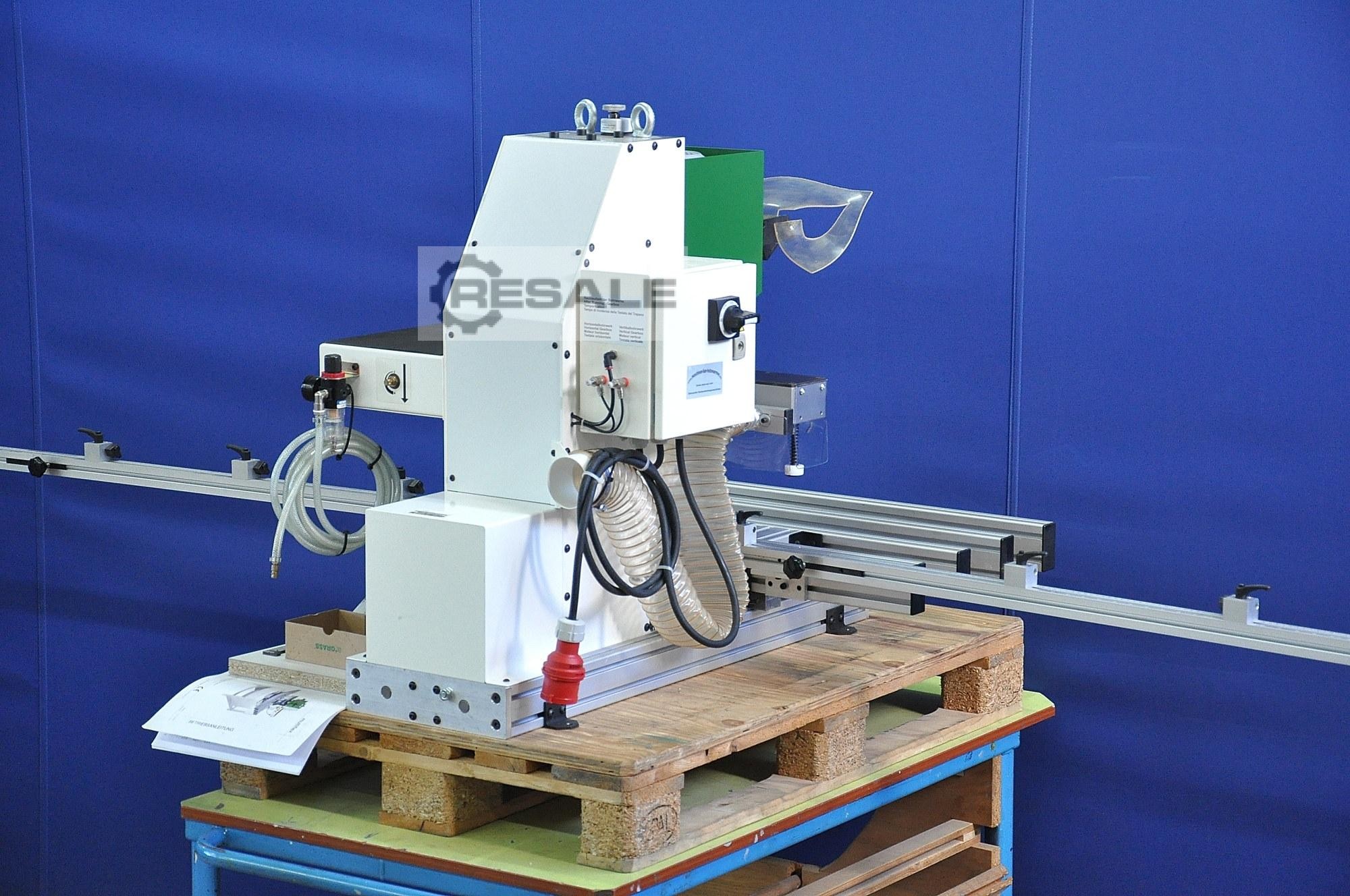

Suction connection 80mm

Used drills:
11 x 5mm, 3 x 8mm, 2 x 10mm, 1 x 35mm
normal drills with 10mm shank are used
17 Quick-change chuck
Setting

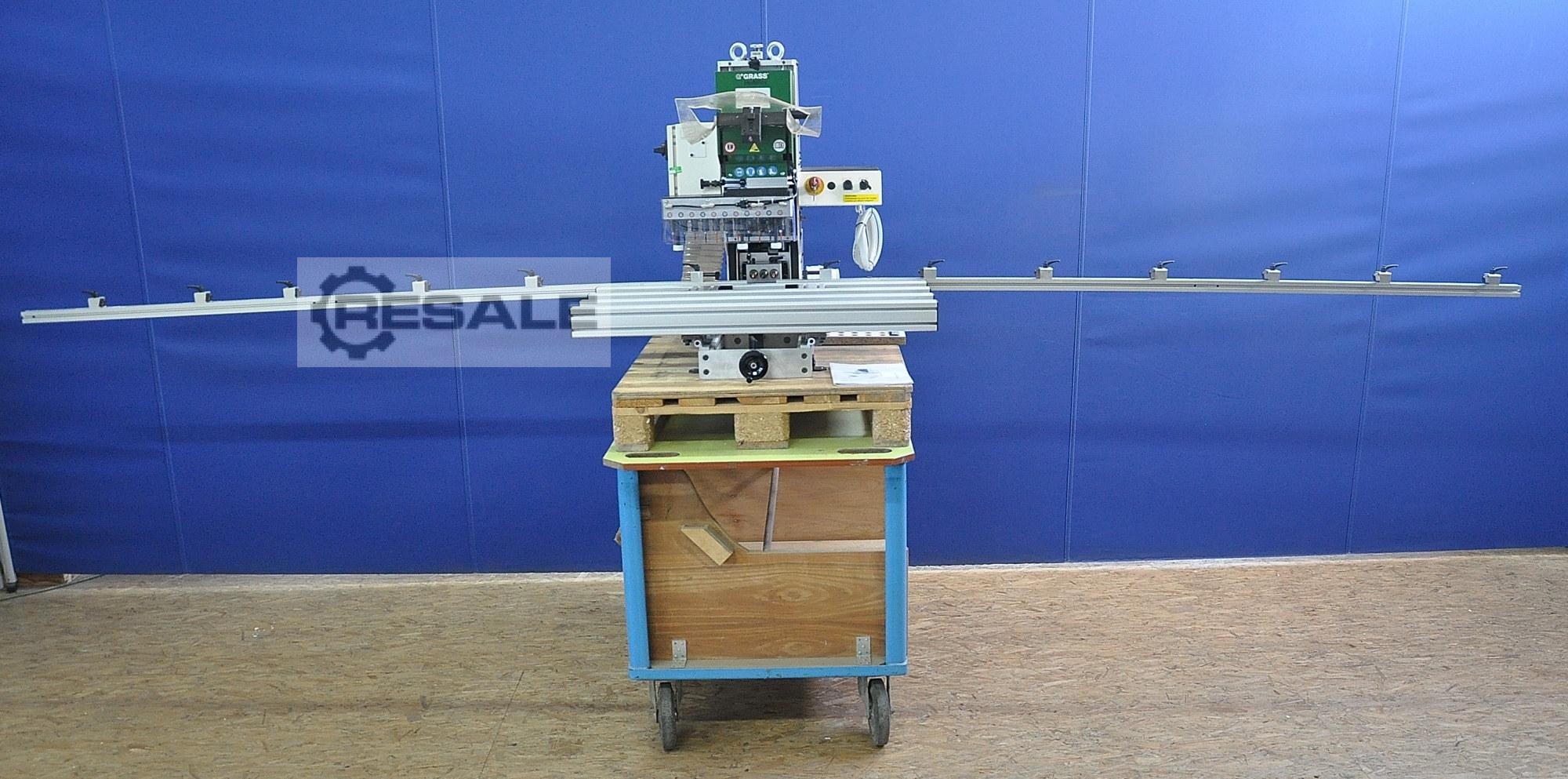

4 rails à 1000mm + center rail 720mm, total length 4720mm
13 tabs for T6311082 rail

Instruction T6311082 manual
CE mark
Original paint

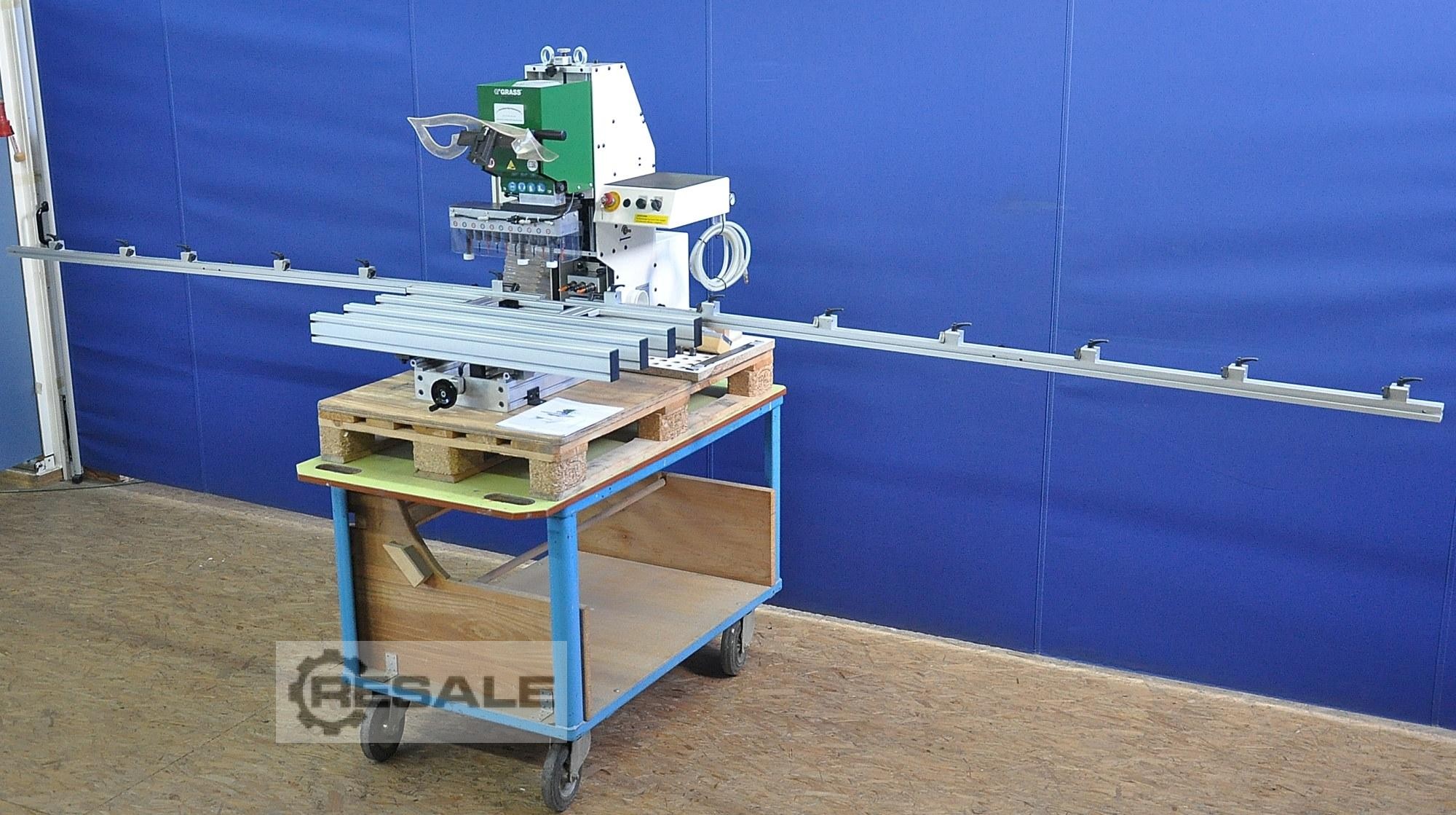

without the car pictured

Dimensions approx. 4720 x 1200 x 950mm (LxWxH), weight approx. 200kg.

The machine can be demonstrated on site by appointment. We offer
only machines that are ready for demonstration in our warehouse, see "other offers of this year".
provider".
seller offer No. resale 168817914
