Systemy okienne OKOMA UF 1S und UF 2 EG
maszyny do obróbki drewna / maszyny do produkcji okien / Systemy okienne
Tenoning spindle: 1 0Number of milling agregates: 2 St.Spindle diameter: 40,50 mmItem 1: Okoma UF1 S Angle Combination Unit and Item 2: UF2 EG Rebating Machine, incl. Item 3: Tooling Set for IV78 Timber Windows, IV78 Timber Entrance Doors, and IV78 Timber-Aluminum Windows (Gutmann system) with ...
Producent: OKOMA
Model:UF 1S und UF 2 EG
Typ maszyny: Systemy okienne
Numer pozycji: 169813021
Ilość: 1
Data: 06.07.2026
Rok produkcji:
Lokalizacja: Deutschland
Cena: 9,000 EUR
Maszyna w magazynie:Tak
Seller-item-No.:1305-7010
Tenoning spindle: 1 0
Number of milling agregates: 2 St.
Spindle diameter: 40,50 mm
Item 1: Okoma UF1 S Angle Combination Unit and
Item 2: UF2 EG Rebating Machine,
incl. Item 3: Tooling Set for IV78 Timber Windows, IV78 Timber Entrance Doors,
and IV78 Timber-Aluminum Windows (Gutmann system) with straight and
angled sash profiles
For sale on behalf of a customer
-------------------------------------------------------Manufacturers Technical Description:

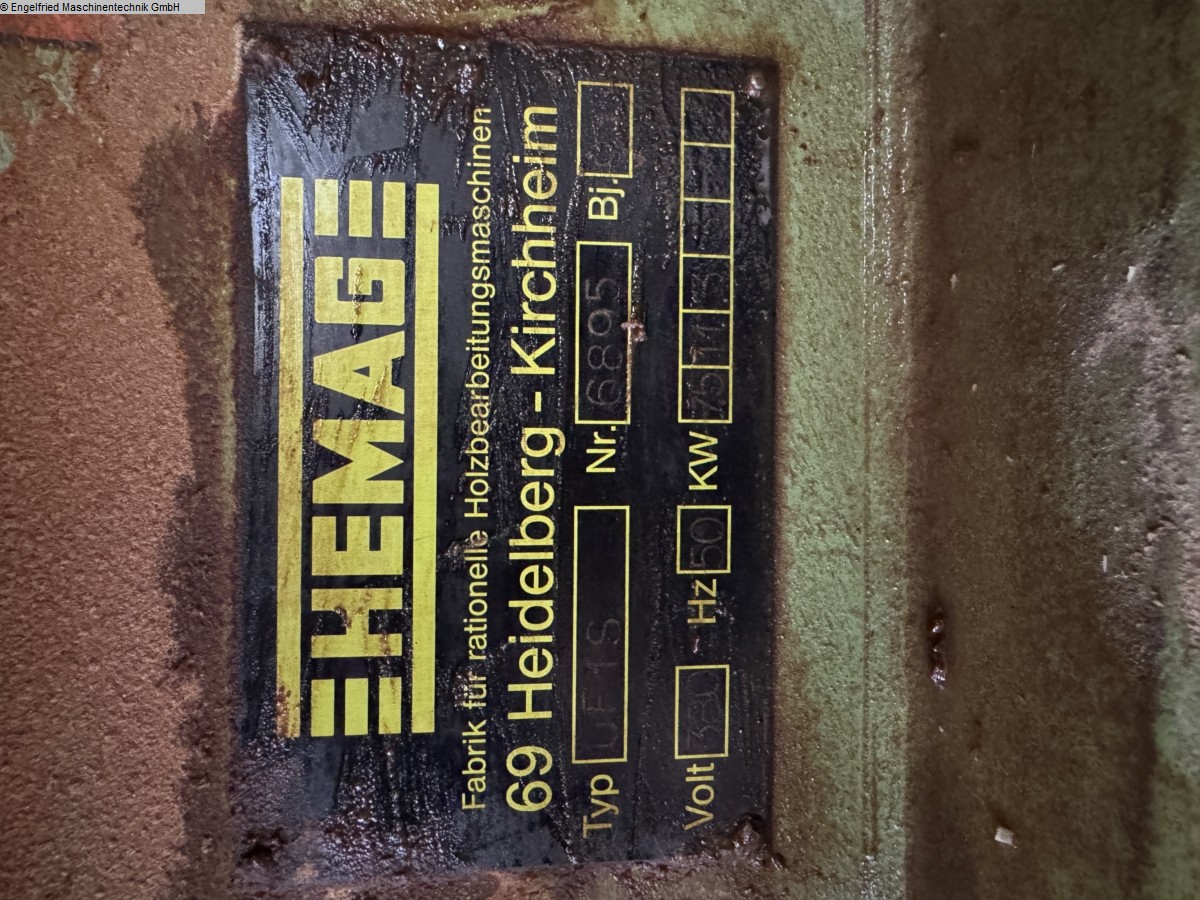

Item 1: Okoma UF 1 S Tenoning and Profiling Machine / Rebating Machine
---------------------------------
Compact, heavy-duty automatic window machine featuring a cast-iron construction,
consisting of:
Top-mounted cross-cut saw with 12-position turret stop system,
Positive-guided saw guard for accident prevention
Tenoning spindle: 40 mm diameter x 252 mm length, 2-step stroke mechanism for
3 tool positions (stroke height: 83 mm), Motor: 7.5 kW
Sliding table: Adjustable on both sides from 0 to 60 degrees
Automatic feed system with various infinitely variable
speed settings, dual pneumatic clamping system,
Length stop (LAS) with 3-position system, 2300 mm capacity
Automatic transfer unit to the profiling section
Profiling spindle: 40 mm diameter x 252 mm length
Pneumatic stroke: 112 mm (adjustable) for 2 tool positions
Motor: 7.5 kW, Spindle horizontally adjustable relative to the tool cutting edge,
Adjustable front milling fence jaw
Glazing bead saw with 3 kW motor and 4-position turret head adjustment,
Heavy-duty articulated feed system, infinitely variable from 0 to 25 m/min. adjustable,
Roller groups pivotable inward and outward
Counter-stop with 5-position turret head
Frame milling unit
---------------------------------

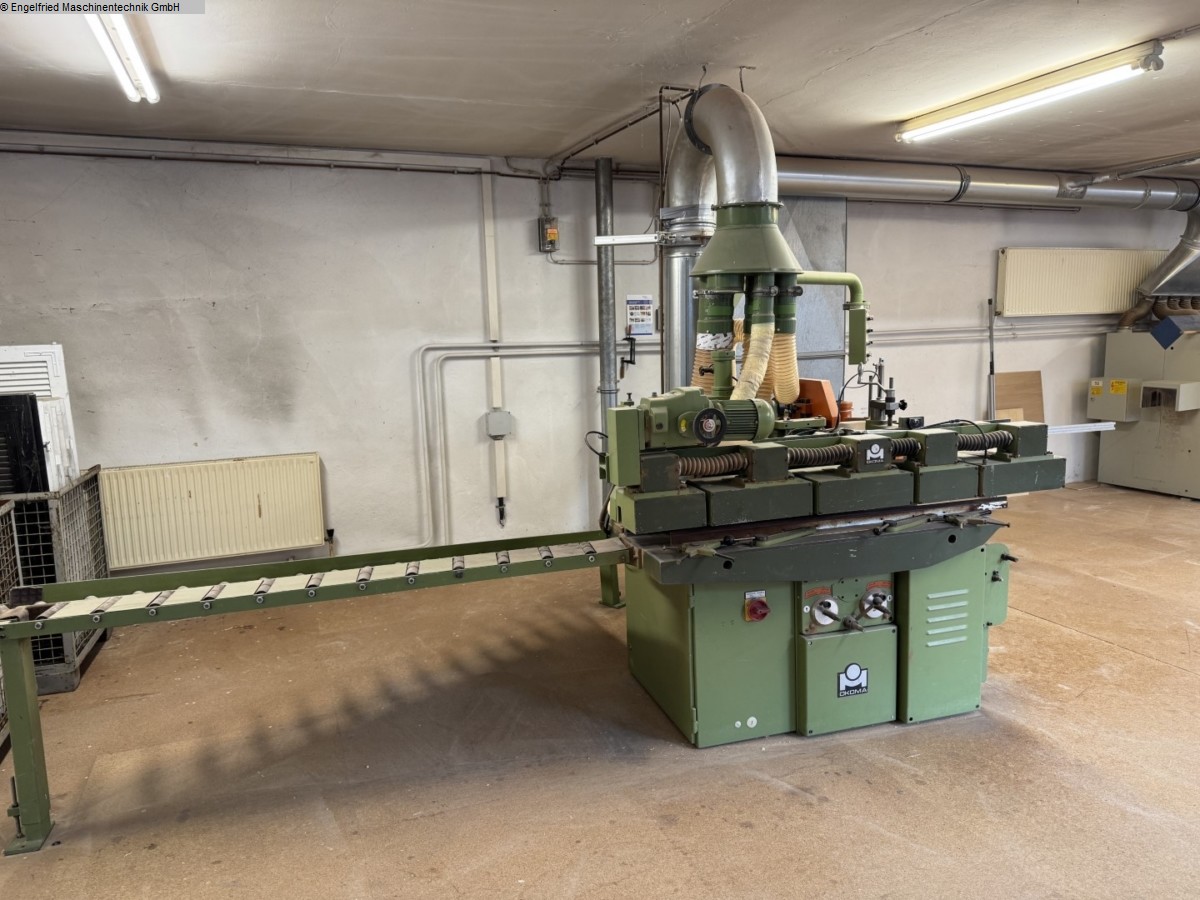

Item 2: OKOMA Automatic Rebating Machine, Model UF 2 EG
-------------------------------------
Power Specifications:
- Operating voltage: 3-phase, 380 V, 50 Hz
- Compressed air: Air requirement: 13 NL/min, Operating pressure: 8 bar
Conditioned air: According to Pneurop 6611
1. Profiling Spindle 1:
- Spindle arrangement: Right
- Power: 11 kW
- Speed: 7000 rpm
- Direction of rotation: Climb and conventional milling
- Spindle diameter: 50 mm
- Usable length: 272 mm
- Max. tool diameter: 230 mm
- Vertical (U-axis) movement of the profiling spindle
- Vertical positioning:
Actuation: Pneumatic cylinder, 90 mm stroke for 3 tool positions
Position sensor: Limit switches
- Horizontal positioning:
Actuation: Pneumatic cylinder (forward/backward)
Position sensor: Limit switches
- Automatic plunge mechanism:
Plunge speed adjustable to ensure tear-out-free rebating
- Safety and dust extraction hood with 140 mm diameter connection port
2. Profiling Spindle 2:
- Spindle arrangement: Right
- Power: 11 kW
- Speed: 7000 rpm
- Direction of rotation: Counter-rotation
- Spindle diameter: 50 mm
- Usable length: 272 mm
- Max. tool diameter: 230 mm
- U-axis movement of the profiling spindle
- Vertical positioning:
Drive: Pneumatic cylinder, 90 mm stroke for 3 tool positions
Position sensor: Limit switches
- Horizontal positioning:
Drive: Pneumatic cylinder (forward/backward)
Position sensor: Limit switches
- Safety and dust extraction hood with connection port (140 mm diameter)
3. Hardware Routing Unit EG:
- Spindle arrangement: Right
- Drive: 3 kW three-phase motor
- Speed: 6000 rpm
- Spindle diameter: 30 mm
- Usable length: 47 mm
- Vertical positioning: None
- Horizontal positioning:
Drive: Pneumatic cylinder (forward/backward)
Position sensor: Limit switches (rear only)
- Safety and dust extraction hood with connection port (80 mm diameter)
Fence:
- 1st Fence: Located before Spindle 1, manual stock removal adjustment,
quick adjustment via... Parallelogram System
- 2nd Stop: between spindles 1 and 2, stock removal: pneumatically adjustable
- 3rd Stop: after spindle 2, fixed stop
Feed Unit:
- Roller spacing (center-to-center): 130 mm
- Roller diameter: 110 mm
- Roller width: 50 mm
- Feed unit: swing-away design
- With pneumatic working stroke control
Support Rail for Profile Milling:
- Rail length: approx. 3000 mm
- Forward adjustment range: approx. 100 – 600 mm
Electrical Control System:
- Programmable Logic Controller (PLC): Siemens Electronics /
PC-based control, 30 programs, 380 V, 50 Hz
- Power Section: Siemens S5
- Non-contact limit switches
---------------------------------

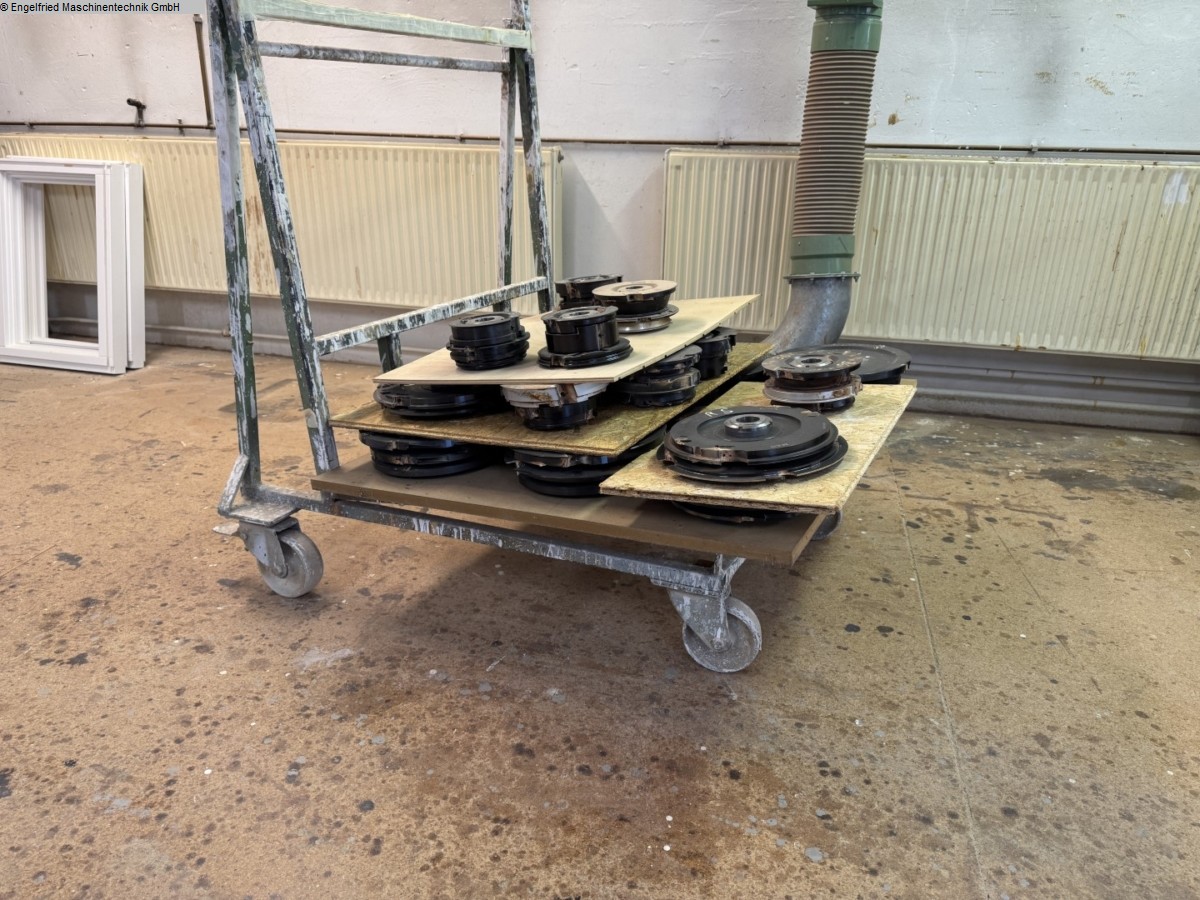

Item 3: Includes Tooling Set by Gold:
-------------------------------------
IV78 Wooden Windows
IV78 Wooden Entrance Doors
IV78 Wood-Aluminum Windows (Gutmann system) with straight and angled sash profiles
---------------------------------
Price for the above-mentioned machines: On request!
---------------------------------
(Technical specifications provided by the manufacturer – subject to verification!)
