Prasy warsztatowe SAHINLER AT 1520 x 100

pressure: 100 t
stroke: 300 mm
table surface area: 500 x 1520 mm
column travel between the guideways: 1520 mm
dayligth: 680 mm
pressure: max. 244 bar
weight of tools max.: 270 kg
ajustment speed: 8.0 mm/sec
working feed: 5.0 mm/sec
return speed: 10.0 mm/sec
oil volume: 90.0 l
voltage: 400 V
total power requirement: 7.5 kW
weight of the machine ca.: 2700 kg
dimensions of the machine ca.: 2630 x 1000 x 2350 mm
current new price approx. 18.000 euros
special price on request
according to previous owner rarely in use

Equipment:

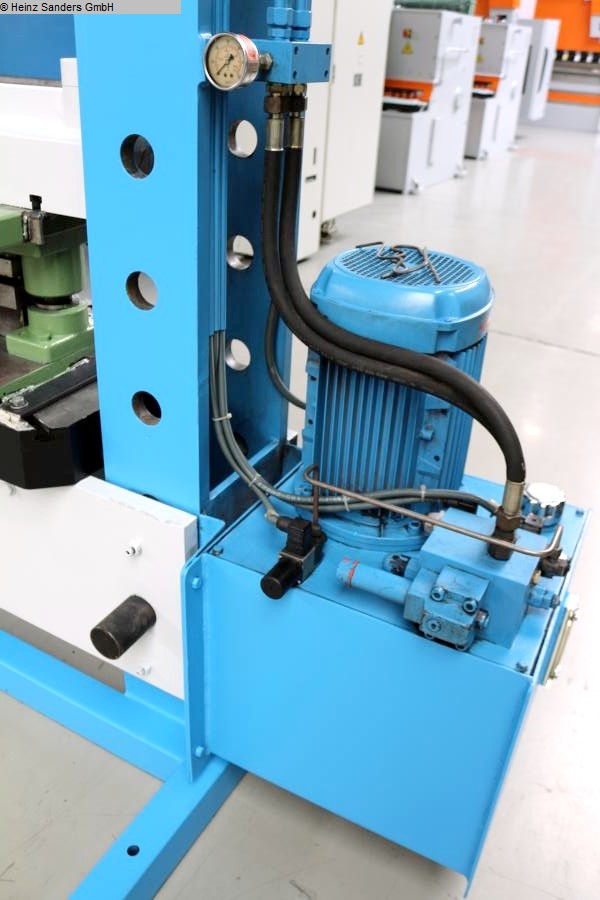

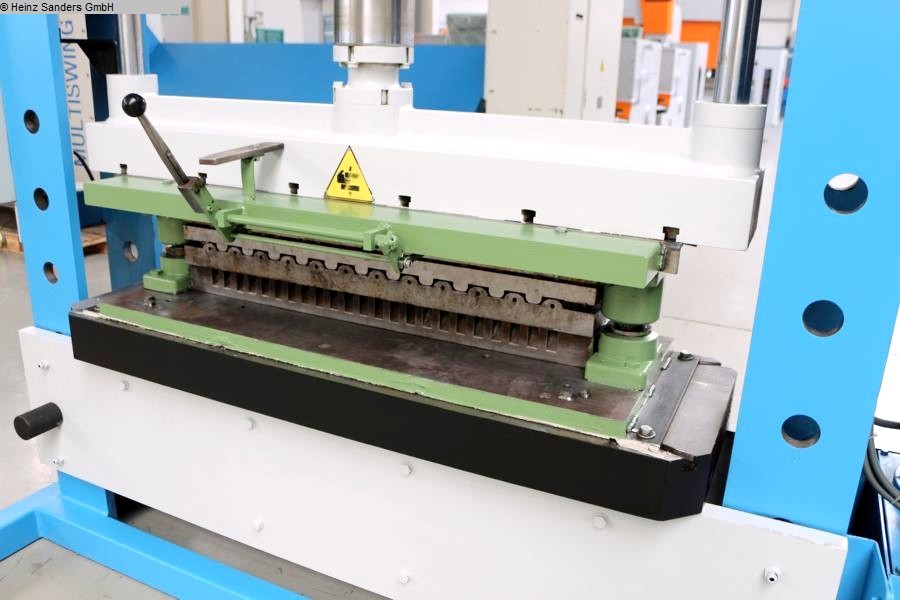

- robust electro-hydraulic workshop/bending press
left right guided
- with fixed working cylinder
- Pressing depth adjustable by cams
- Height-adjustable work table
- 2x locking bolts for table fixation
- 3x directional control valve supply-empty-return
- Stepless adjustment of working pressure

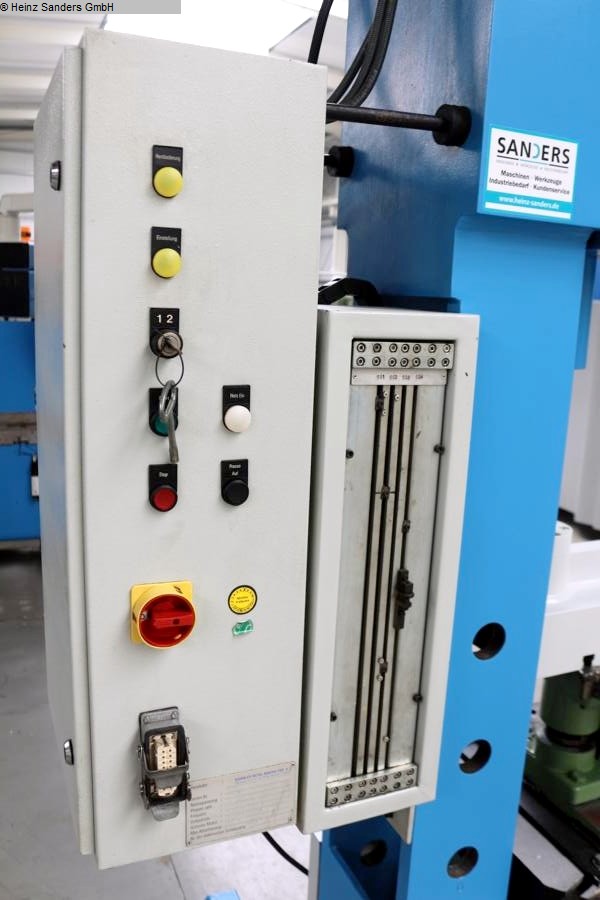

- 1x freely movable 2-hand operation
- Original operating instructions
