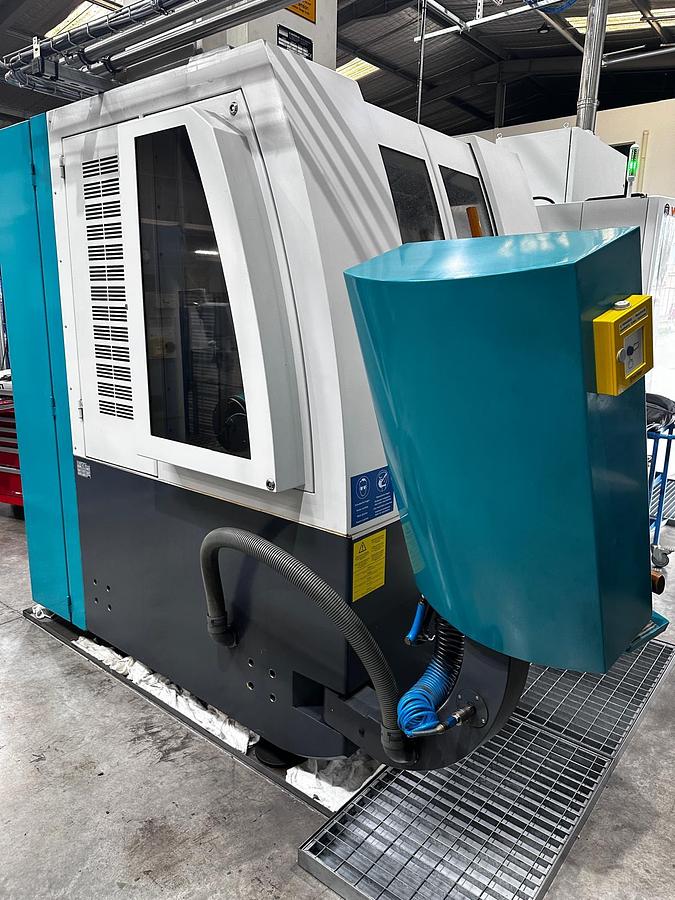

SCHNEEBERGER Norma CFG

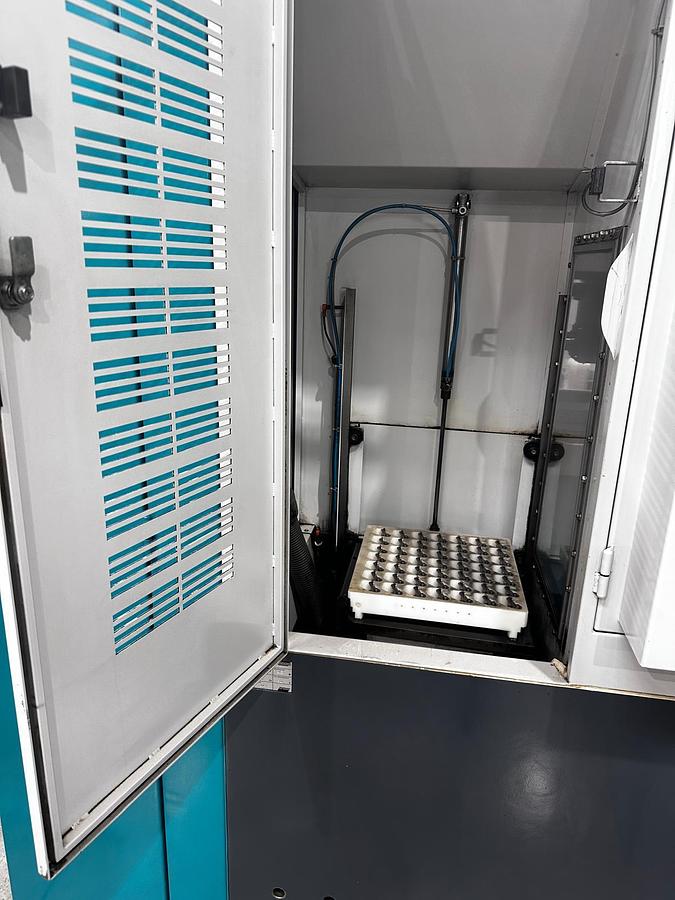

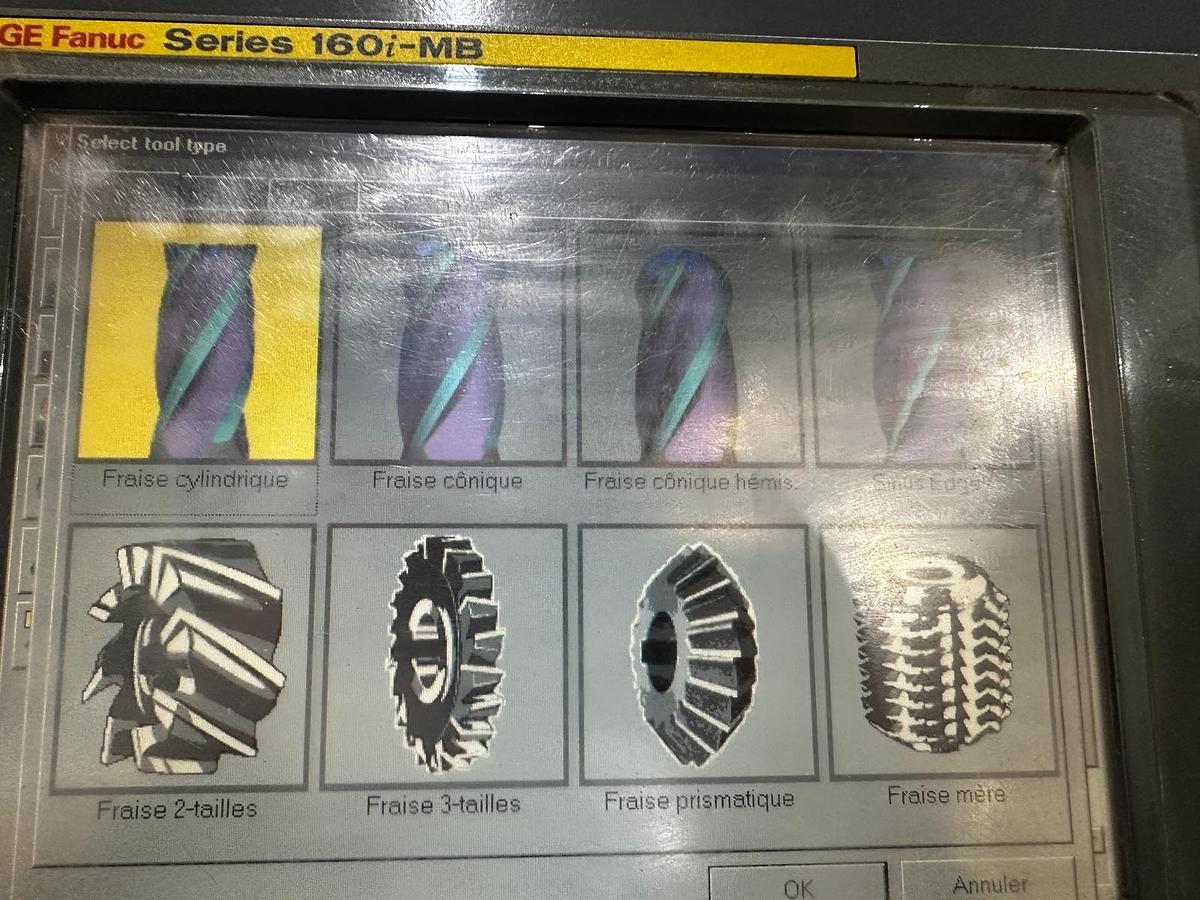

Suitable for regrinding and making new wood and metalworking tools of all kinds. Accessories: Pallet loader,, Quinto software, version 4.3b,, Software for cylindrical cutters,, Software for conical cutters,, Software for hemispherical conical cutters,, Software for two-flute cutters,, Software for three-flute cutters,, Software for hob cutters,, Software for up-and-down cutters,, Software for wood drills,, Software for tools with an axial angle,, Software for taps,, Software for step drills,, Software for drills, types H and S,, ISO axial software,, ISO spiral software,, Elbaron electrostatic mist extractor,, Hydraulic workpiece clamping,, Renishaw measuring probe,, Automatic fire-extinguishing system,, Automatic centralized lubrication system,, Glass scales on the linear axes,, 1 loading pallet,, 16 grinding wheel flanges,, 4 collets,, 1 collet chuck,, 1 automatic 5-jaw chuck, PMH., X-axis longitudinal movement: 380mm, Y-axis transverse movement: 280 mm, Z-axis vertical movement: 280 mm, C-axis swivel range: 340°, A-axis rotation range: 360 °, Center height: 210 mm, Workpiece holder: ISO 50, Grinding wheel diameter: Max. 200 mm, Drive power grinding lockers: 7,5 kW, Grinding spindle speed: stepless 0 - 9000 rpm, Connected load: 29 kW (400 V / 50 Hz), Dimensions W x D x H: 1590 x 1930 x 2550 mm, mass: approx. 4800 kg, colour: turquoise / grey
seller offer No. resale M02337
