szlifierki używane na sprzedaż (2,181)

grinding diameter:300 mmgrinding length:600 mmcentre height:190 mmz-axis:865 mmx-axis:250 mmclamping length:1000 mmperipheral speed:45 m/secgrinding slide swivable +/-:8 °grinding wheel width x diameter:80 x 508 mmwork piece spindle speed:1 - 800 U/minweight of the machine ca.:5 tMachine with SIemens 840 C control- coolant device- Marposs measuring device

grinding length:12000 mmgrinding width:2800 mmworkpiece height:2510 mmmax. workpiece weight:24.000 kgtable surface area:11990 x 2500 mmdistance between columns:2820 mmcross rail adjustment:2510 mmtable feed:1 - 40 m/mintotal power requirement:110 kWweight of the machine ca.:151 tdimensions of the machine ca.:32,5 x 9 x 6,73 m.machine is in top condition for high precision work!with CNC SIEMENS 840 D1 universal grinding head, 22 kW swivelling of the grinding spindle +/-110°grinding wheel dimension 700 x 130 mmvertical stroke 1000 mmwith dressing unit1 surface grinding head, 30 kWgrinding wheel dimension 600 x 150 mmvertical stroke 230 mmwith dressing unitcoolant and filtering unitdiverse grinding wheel flanges

grinding length:1250 mmgrinding width:600 mmworkpiece height:730 mmtable surface area:1720 x 500 mmheadstock: dist. table - spindle center:900 mmmax. longitudinal movement:X-1450 feed range:10 - 20.000 mm/minvertical movement:Y-730 mmfeed range:0,2 - 3.000 mm/mincross travel:Z-550 mmfeed range:5 - 5.000 mm/minpower capacity:1500 U/min.- 44 kW / 8000 U/min. - 38 kW kW grinding wheel turining speeds:50-6.000 U/mincutting speed:max. 80 m/sec.weight of the machine ca.:11 twith CNC SIEMENS 840 Cauto. dynamic balncing system integrated in the grinding conusprofile grinding unit ( on table mounted ) Diamant profile rollers ( dia. max 140 mm , width max. 200 mm, hole 52 H3 ) speed 3000 rpmtwo magnetic plates ( 1000 x 400 mm, 1200 x 350 mm ) divers Flanges ect.

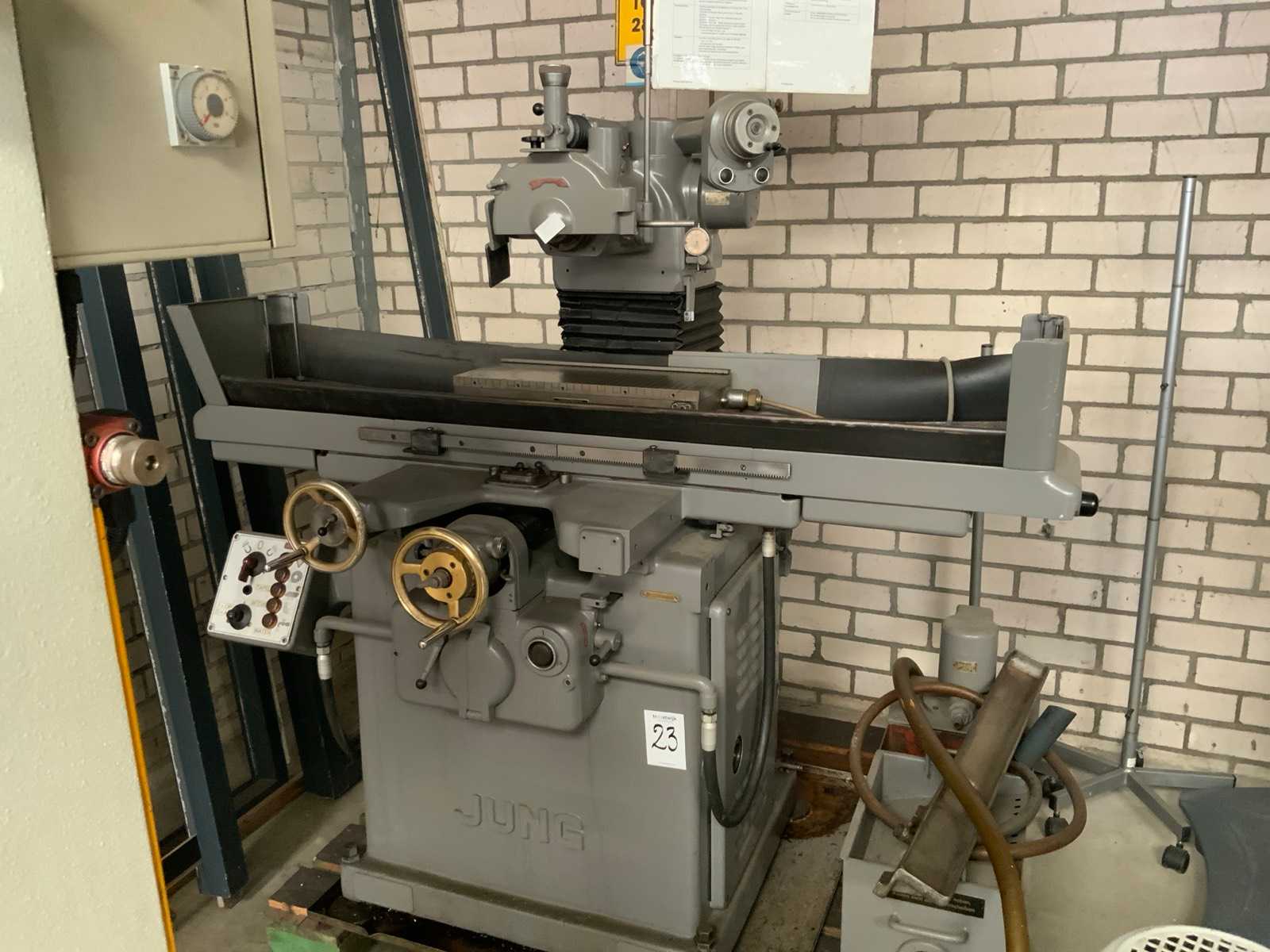

grinding length:600 mmgrinding width:300 mmtotal power requirement:7,5 kWnumber of spindle speeds:0-3000 grinding wheel motor:7,5 kWgrinding wheel diameter:300 mmdimensions of grinding wheel:76 x 20 mmABA magnetic table flat grinding machine

grinding diameter:280/320 mmgrinding length:750 mmcentre height:170 mmweight of the machine ca.:22,5 tdimensions of the machine ca.:4,7 x 3,65 x 3,0 m

weight of the machine ca.:15 t

weight of the machine ca.:24 tdimensions of the machine ca.:3900 x 3500 x 2500 m-the machine has no B axis -two grinding spindles with one grinding wheel each -The transport instructions can be found in the documentation (attachment). including Hoffmann KSM filter system Loading list availableOperating data v. 03/27/2023: Operating time: 21727 h / production time: 11960 h Machine documentation: 1 set of circuit diagrams, electrical plans, operating instructionsAccessories: 2 replacement measuring heads Marposs S/500; prism supports Other: Hoffmann KSM filter system Machine condition: according to age, due to processing with emulsion

KSS/filter/cooling systemsEmulsion

grinding length:400 mmworkpiece weight:250 kgweight of the machine ca.:4,1 tswing diameter:250 mmgrinding spindle speed:2387, 2938 U/min

grinding diameter:20 mmgrinding length:20 mmmax. workpiece diameter:20 mmmin. workpiece diameter:1 mmgrinding wheel diam. min/max.:300-400 grinding wheel turining speeds:2.000-7.000 U/minWeight:950 kgdimensions: 1200 x 2100 mm

grinding length:600 mmcentre height:180 mmswing dia.:360 mmworkpiece weight:80 kgmax. dia. of grinding wheel:500 mmgrinding wheel width:80 mmgrinding wheel hole diameter:203,2 mmperipheral speed:45 m/secThere is also a 3200 liter coolant tank including cooling unit + fire extinguishing system.

: neu : 2026 : 050162 : Mai 2026, Zwischenverkauf : Taiwan : 69400 €: 1311.66 €: 800 mm: 610 mm: 800 x 400 mm: 800 x 400 mm: 810 mm: 5 - 25 m/min: 0.74 kW: 10 kVA kW: 3540 mm: 2080 mm: 2100 mm: 2900 kg: 980 mm: 350 kg: 355 x 50 x 127 mm: 0,001 mm: 500 - 1.800 U/min: 3,75 kW: 1.1 kW10.4", graphic NC control on a swivel arm with touchscreen for:Operating mode selectionCycle selection and program creationSurface grindingCross grindingPlunge grindingDressing with automatic compensationSemi-automatic balancing in the machineAutomatic spindle speed for constant surface speedSpindle load visualizationUnbalance controlGraphical status monitoringAlarm listaut. vertical feedservo drive for grinding wheel feed and table cross feedhardened slide ways in all 3 axes with needle rollerselectro-magnetic chuckcoolant equiptment with aut. paper filter and magnetic separatorautom. dressing attachme ...

workpiece diameter:26 mmswing diameter:- mmworkpiece length:66 mmtotal power requirement:12 kWweight of the machine ca.:4 tdimensions of the machine ca.:3,14 x 1,69 x 2,2 mThe machine has so far processed the parts in a stream, i.e. without interruption. Piston rods are usually machined with a clearance, requiring the finishing stone to be placed only when the part passes under the stone.1. Feed Roller2. Stone holder, 10 pieces, 50 mm new guides can be made between approx. 15 to 40 mm The Roller of Nagel:Dia: approximately 120 mmL: app. 880 mm

internal diameter:140 mmtotal power requirement:5,5 kWweight of the machine ca.:1,8 tdimensions of the machine ca.:2,8 x 2,5 mmax. workpiece weight:15 kgclamping dia. max.:140 mmclamping length:250 mmmax. bore diameter to be ground:0,8-90 mmmin./max. hole to grind:160 mmcentre height:90 mmworkpiece spindle stepless:112-1000 U/min

dimensions of the machine ca.:3,5 x 2,0 x 2,5 m

: neu : ca. 6 Monate ab Auftragse : Taiwan : 247540 €: 2100 mm: 850 mm: 2000 x 600 mm: 2x 1000 x 600 mm: 0 - 20 m/min: 0 - 5000 mm/min: 0,001 mm: 685 mm: 0 - 2000 mm/min: 0.001 mm: 675 mm: 500 - 2200 1/min: 11 kW: 7710 mm: 3320 mm: 2850 mm: 6530x3200x3350 mm brutto mm: 10200 kg: 900 mm: 1240 kg: 2000 kg: 405 x 50 x 127 mm: 3,1 / 3,1 kW: 7.5 kW: X: 0,008, Y/Z: 0,005 mm: X: 0,006, Y/Z: 0,003 mmSmart i control with 10.4", touchscreen on a swiveling panel, with electronic wired handwheel- RS232, USB I/O connection- SMART Grind Cam (dxf transfer in G code)-PC based control with graphical dialog programming or G-code programmingInfinitely variable speedSurface grinding cycle, cross grinding cycle, plunge grinding cycle, multiple groove grinding cycle, contour grinding cycle, dressing cycleSpindle with 6 angular contact ball bearings (P4, class 7)Longitudinal guides with double-V-shape w ...

grinding diameter max.:3-220 mmregulating wheel width:500 mmmax. width of grinding wheel:500 mmweight of the machine ca.:16 t.dimensions of the machine ca.:12 x 10 x 8 m.grinding wheel diam. min/max.:420-610 grinding wheel diameter - width-internal grin:304,8 x 500 mmRegulatin wheel diameter min/max.:300-350 mmThe machine is currently designed for plunge grinding JUPITER's Centerless grinding, also available with CBN. Junker this circular grinding method with CBN grinding wheels, which opens up significant productivity benefits from the long service life of the grinding wheel, especially at high volumes. In addition, the simultaneous removal takes on the entire Schleswig-Holstein, which provides both in mass production and in small batches for significantly reduced processing times.The grinding process with JUPITERWhen centerless grinding, there are two grinding processes: the through gr ...

: neu : ca. 6 Monate ab Auftragse : Taiwan : 156560 €: 2958.98 €: 1200 mm: 850 mm: 1200 x 500 mm: 1200 mm: 1200 500 mm: 5 - 30 m/min: 0 - 5000 mm/min: 0,001 mm: 560 mm: 0 - 2000 mm/min: 0.001 mm: 500 - 2200 1/min: 11 kW: 3.7 kW: 3.1 kW: 2.4 kW: 4600 mm: 2950 mm: 2745 mm: 4610 x 2290 x 2500 mm: 6400 kg: 900 mm: 930 kg: 1250 kg: 405 x 50 x 127 mmSmart i control with 10.4", touchscreen on a swiveling panel, with electronic wired handwheel- RS232, USB I/O connection- SMART Grind Cam (dxf transfer in G code)-PC based control with graphical dialog programming or G-code programmingInfinitely variable speedSurface grinding cycle, cross grinding cycle, plunge grinding cycle, multiple groove grinding cycle, contour grinding cycle, dressing cycleSpindle with 6 angular contact ball bearings (P4, checkout 7)Air purge spindleLongitudinal guides with double V shape, with Turcite-B coatingTransv ...

grinding diameter:5-55 mmgrinding length:500 mmtotal power requirement:44 kW-- Intended use and general information --Fully automated external and surface grinding of synchronous ringsCentre height: 200 mmGrinding length: 500 mmGrinding wheel arrangement: right, 30° angled Grinding wheel dimensions: 600 x 30 x 203.2 mmDrive power: 7 kW X/Z axis drive: ball screw Travel speed: 0.01 - 10,000 mm/min. Resolution: 1 µm Concentricity of workpiece spindle: < 1 µmWorkpiece changing system: Fanuc robot Control: Siemens Sinumerik 840-DMachine weight: 7,000 kgCentre height: 200 mmGrinding length: 500 mm

grinding diameter:200 mmgrinding length:320 mmtotal power requirement:3,5 kWweight of the machine ca.:9 tspace required L x W X H:5,28 x 4,5 x 2,4 mmax. wheel dia.:200 mmSpindle drives Arena SiemensFor Worm grinding we have not module, but pitch. Pitch is freely programmable from 0.001 to big value i.e. 500mm

max. grinding diameter:160 mmstations:2 sanding width:30 mmtotal power requirement:0,37 kWweight of the machine ca.:100 kgdimensions of the machine ca.:520 x 520 x 1160 mm

no. of working stations:1 Stücktool adaptor:1650 W revolutions per minute:2990 U/mintotal power requirement:380V, 2,7 Aweight of the machine ca.:33 kg

no. of working stations:1 Stücktool adaptor:1650 W revolutions per minute:2990 U/mintotal power requirement:380V, 2,7 Aweight of the machine ca.:33 kg

working width:1400 mmWorkpiece thickness max.: 80 mmwork height max.:1000 mmFeed speed:4m/min I Stufe, 8 II Stuf m/min.Required air-pressure:max. 5 barvoltage:50 Hz, 380 Vworkpiece length:320 mmworkpiece thickness min.:1 mmweight of the machine ca.:3500 kgDocuments:vorhanden

workpiece length:350 mmwork piece width:150 mmdiameter:Tellerradius 200 mmtool taper:M32 x 1,5 spindle diameter:32 mmgrinding width:max.450 mmturning speeds:3385 U/minwork table::Höhe 1000 mmworkpiece height max.:100 mmtotal power requirement:1,1 kWweight of the machine ca.:300 kgdimensions of the machine ca.:700 x 800 x 1170 mm

table diameter:520 x 22 mmtable - swivable:45 Gradtotal power requirement:1,6 kWweight of the machine ca.:130 kgdimensions of the machine ca.:520 x 520 x 1200 mmmit SchleifzylinderZubehör: 4 ( Aluzylinder) Werkzeuge zur Aufnahme von SchleifmittelnØ 50, 70 , 90, 120 mm x 223 mmneuer Motor

sanding belt length:max. 470 mmworkpiece dia.:600 mmtable - swivable:0 - 6 Gradtaper:Reitstock Morse 2 turning speed range::1260 - 3100 U/mintable movement:längs 470 mmtool taper:schwenkbar 0-6 °, 90° dre total power requirement:0,4 kWweight of the machine ca.:950 kgdimensions of the machine ca.:1100 x 1100 x 1500 mmDocuments:vorhanden

max. grinding diameter:50 mmgrinding length:250 mmworkpiece length:300 mmtotal power requirement:0,7 kWweight of the machine ca.:330 kgdimensions of the machine ca.:1000 x 1000 x 1400 mm
