Deep Drilling Machine TBT T 30-750

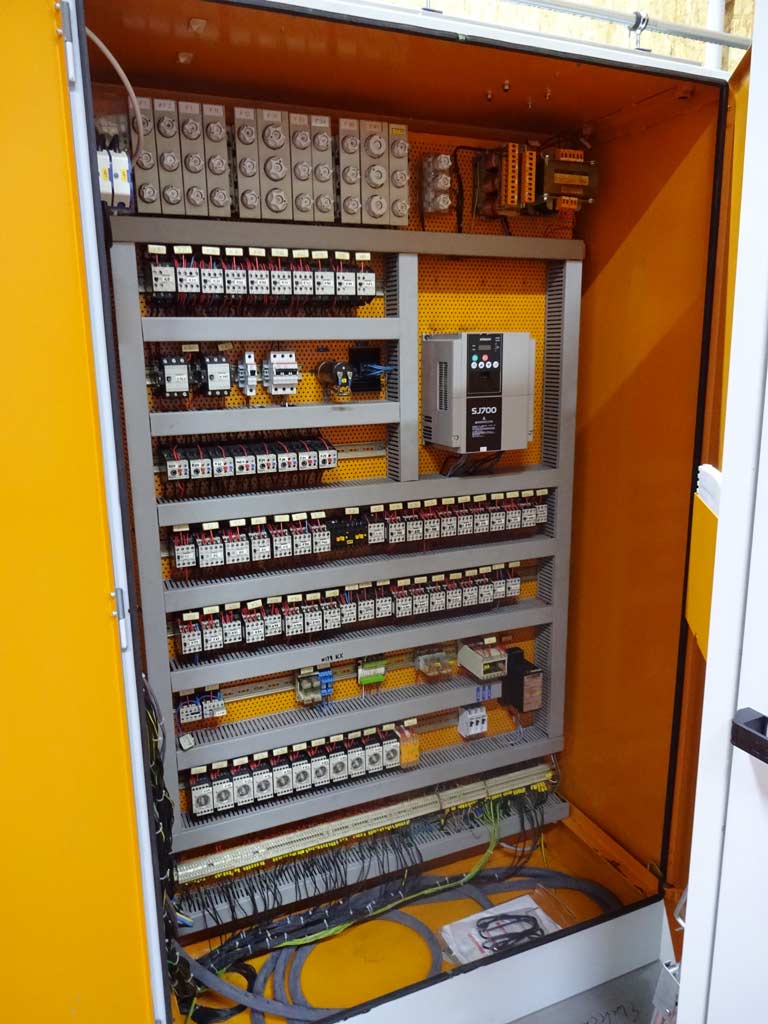

Drilling process: single-lip gundrilling, operating method: rotating tool, number of working spindles: 1, nominal drilling depth: approx. 750mm, drilling range for solid drilling in steel: approx. 30mm, drilling range for counterboring in steel: approx. 40mm, spindle drive: 11kW, max. spindle speed range I: 1800rpm, max. spindle speed range II: 5700rpm, max. feed rate range I: 320mm/min, max. feed rate range II: 160mm/min, rapid traverse: 3.5m/min, clamping table X/Y: 420mm/1280mm, cross-slide table manually operated, max. transverse travel: 400mm, table clamping surface X/Y: 600mm/600mm, high-pressure coolant system for deep-hole drilling oil with 1000l coolant tank, flow rate: approx. 2-94l/min, max. pressure at max. flow rate: 45bar, pump power: 11kW, separate control cabinet. The machine underwent an extensive partial overhaul in 2018, during which the machine was disassembled and cleaned, all guideways and support surfaces were ground and partially scraped, motors were inspected and fitted with new bearings, the drilling spindle was fitted with new bearings, the ball screw incl. nut was replaced, the pump motor was overhauled, the wiper set was replaced, and the machine was repainted and all functions were checked and rectified. Including extensive accessories. Documentation available. Inspection possible by arrangement.
seller offer No. resale INNO32215
