tokarki używane na sprzedaż (3,100)

standard turning dia.:200 turning length:max. 810 mmcontrol:MSX-701 MAPPS IV greates pass round over bed:800 mmMax. distance between centres:1130 mmmax. turning diameter:320 mmmax. workpiecediameter:300 mmbar material dia.:65 mmTraverse X-Axis 1:210 Traverse X-Axis 2:210 mmTraverse X-Axis 3:210 mmTraverse Y-Axis 1:110 (+65/-45) mmTraverse Y-Axis 2:110 (+45,/-65) mmTraverse Z-Axis 1:300 mmTraverse Z-Axis 3:300 mmTraverse Z-Axis 2:810 mmTraverse B-Axis:870 mmturning speed range - spindle:5.000 1/minNumber of spindle speed ranges:2 .spindle nose:JIS A2-6 spindle bore:73 mmspindle bearing diameter:120 mmC-Axis:0,001 °turning speed range - spindle:5.000 1/minspindle nose:JIS A2-6 spindle bore:73 mmbar material dia. max:65/52 mmspindle bearing diameter:120 mmC-Axis:0,001 °Number of Turrets:3 .Number of tool stations:16 x 3=48 posSchank height for square tool:20 mmDiameter of boring bar:32 mm ...

turning diameter:640 / 400 mmturning length:1500 mmcontrol:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mmSwivle angle milling spindle (B-axis):±120° interpol. °Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/minRPM milling spindle:12000 1/minpower capacity - milling spindle:12 / 23 kWTorque of milling spindle:100 NmTool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 sSpindle 1 RPM:4000 1/minSpindle 1 power:36/ 45 kWSpindle 1 Torque:730 NmSpindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/minSpindle 2 power:36 / 45 kWSpindle 2 torque:730 NmSpindle 2 max. bar diameter:90 c-axis:0,001 °Travel turret 2 x:225 mmTravel Turret 2 z:1595 mmRPM of rotary tools turret 2:4000 1/minno. of tools in turret 2:12 VDI 40 high-pressure pump:20 bartotal power requirement:110 kVAweight of t ...

turning diameter:33 mmturning length:330 mmcontrol: 840 total power requirement:20 kWweight of the machine ca.:6 tdimensions of the machine ca.:3850,2000,2100 m17 axes3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axesBarfeederMachine On-time 58,133 hours

turning diameter:500 mmturning length:1000 mmcontrol:Siemens 840 D spindle:42 / 28 kWspindle turning speed - stepless:31 - 4000 1/minmax. torque on the spindle:345 Nmc-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/minrapid traverse:10000 mm/minturret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/mindiameter of quill:90 mmquill stroke:80 mmtailstock quill taper ISO:SK 30 Tailstock Travel:600 mmPower rotary tools:3,5 kW:22,5 NmRotary tool holders:4 ax./ 4 rad. spindle passage:66 mmtotal power requirement:30 kWweight of the machine ca.:7,5 tdimensions of the machine ca.:8x 3 x 4 m

Samocentrująca wyżownica z 3 szczękami, Rohm 400 mm Niezależna wyrzutnia zaciskowa z 4 szczękami Rohm 600 mm Okulary do biegania 30-200 mm Stałe siedzenie z rolkami 40-215mm Stałe okulary z rolkami 210-390 mm Sony cyfrowy odczyt 2 osi Uchwyt na szybkie zmiany Multifix typu D Stały środek Obracający się środek Magistrala pivot Instrukcja i rysunki w języku niemieckim Manualny angielski Auction-ID: A1-47358-171

standard turning dia.:200 turning length:max. 810 mmcontrol:MSX-701 MAPPS III greates pass round over bed:800 mmMax. distance between centres:1130 mmmax. turning diameter:320 mmmax. workpiecediameter:300 mmbar material dia.:65 mmTraverse X-Axis 1:210 Traverse X-Axis 2:210 mmTraverse X-Axis 3:210 mmTraverse Y-Axis 1:110 (+65/-45) mmTraverse Y-Axis 2:110 (+45,/-65) mmTraverse Z-Axis 1:300 mmTraverse Z-Axis 3:300 mmTraverse Z-Axis 2:810 mmTraverse B-Axis:870 mmturning speed range - spindle:5.000 1/minNumber of spindle speed ranges:2 .spindle nose:JIS A2-6 spindle bore:73 mmspindle bearing diameter:120 mmC-Axis:0,001 °turning speed range - spindle:5.000 1/minspindle nose:JIS A2-6 spindle bore:73 mmbar material dia. max:65/52 mmspindle bearing diameter:120 mmC-Axis:0,001 °Number of Turrets:3 .Number of tool stations:16 x 3=48 posSchank height for square tool:20 mmDiameter of boring bar:32 m ...

turning diameter:160 mmturning length:300 mmcontrol:Siemens 840D Spindle 1 Power:22 kWSpindle 1 RPM:5000 1/minSpindle 1 max. bar diameter:65 Spindle 1 Torque:150 NmSpindle 2 power:16,8 kWSpindle 2 RPM:5000 1/minSpindle 2 torque:100 NmTravel for pick up of 2nd Spindle:W2=690 mmdimensions of the machine ca.:´4,5x2,0x2,3 mweight of the machine ca.:9 tCNC turning center with 3 turrets with rotary tool drives and 2 spindles.There is an internal coolant system for the turrets with individual pumps

weight of the machine ca.:2,5 tspindle passage:65 mm

turning diameter:190 mmturning length:503 mmcontrol: Fanuc 31i - TA Travel x/z turret 1:135 / 503 mmTravel Y1:62 (± 31) mmTravel x/z turret 2:135 /503 mmc-axis:Sp. 1 / 2 Spindle 1 RPM:6000 1/minSpindle 1 Power:11/7,5 kWSpindle 1 max. bar diameter:42 mmSpindle 2 RPM:6000 1/minSpindle 2 power:11/7,5 kWTurret No.1 stations / rotary tools:12/12 Turret 1 tool RPM:6000 1/minTurret 1 power rotary tools:7,1 / 2,2 kWTurret No.2 stations / rotary tools:12/12 Turret 2 tool RPM:6000 1/minTurret 2 power rotary tools:7,1 / 2,2 kWtotal power requirement:53 kVAweight of the machine ca.:5700 tdimensions of the machine ca.:2,3 x 1,6 x 1,94 mHigh precision cnc turning center, rotary tools and y-axis on upper turret, Robot loader for shafts.

turning length:400 mmtotal power requirement:45 kWweight of the machine ca.:4 tdimensions of the machine ca.:3,58 x 1,91 x 2,05 mspindle passage:45 mm

turning diameter:1600 mmturning length:6200 mmturning diameter over bed slide:1250 Turning rate:5 - 710 U/min.total power requirement:37/52 kWweight of the machine ca.:16 tdimensions of the machine ca.:12 x 4 x 2 mCNC SIEMENS Sinumerik3-jaw chuck SCHUNK Rota Plus Dia. 630 mm3 x fixed steadies ( 1200 / 570 / 400 mm ) coolant attachment and chip conveyordiverse accessories

turning diameter:410 mmturning length:500 mmcontrol:Fanuc 21i TB standard turning diameter:275 mmtravel -x axis:277 mmtravel -y axis:82 (±41) mmtravel -z axis:500 mmSpindle 1 RPM:4500 1/minSpindle 1 Power:18,5/18,5/15 kWSpindle 1 max. bar diameter:65 mmturret stations / rotary tool stations:12/12 Power rotary tools:5,5 kWRPM of rotary tools:6000 1/mintotal power requirement:39,2 kVAweight of the machine ca.:6,2 tdimensions of the machine ca.:3,1 x 2,0 x 2,2 mcollet chuck:Hainbuch High precision Turning and Milling Centre with Y-axis and robot loading.Stäubli Robot for shaft loading.

turning diameter:500 mmturning length:1000 mmweight of the machine ca.:7,3 tdimensions of the machine ca.:6,5 x 4,45 x 2,21 m

faceplate diameter:4000 mmswing diameter:4300 mmturning height:330 mmfaceplate turning speed range:1 - 92 U/minworkpiece weight:18 tfeeds:1 - 4000 mm/minmain drive motor:55 kWtotal power requirement:85 kVAweight of the machine ca.:64 tdimensions of the machine ca.:90, x 7,2 x 5,5 mwith CNC SIEMENS 840 D for 4 axis2 Vertical Supports tool Basic holderchip conveyor

faceplate diameter:4770 mmswing diameter:7000 mmturning height:1000 mmslide stroke:1000 mmworkpiece weight max.:100000 kgfaceplate turning speed range:2 - 20 U/minfeed speeds:1 - 10000 mm/minrapid traverse:10 m/minram head dimension:250 x 250 mmmain drive:100 kWtotal power requirement:200 kWwith CNC SIEMENS 840 D2 Vertical Supports with toolchanger 12 pockets C-axis and driven tooling SK 50 37 Kw 3000 rpmChip conveyor and coolant attachment

turning diameter over bed:350 mmturning diameter over slide rest:240 mmturning length:800 mmSpindle RPM:40 - 2000 in 8 Stufen 1/mintotal power requirement:3 kWSpindle bore:26 mmtailstock quill taper MT:MK 2 dimensions of the machine ca.:1,5 x 1,0 x 1,6 mweight of the machine ca.:1,9 tVery well maintened center lathe with accessories- 3-jaw, 4-jaw chuck- tailstock with center- 1 boring head- RAPID quick tool change device with 3 holder- saddle mounted steady rest- collant device- set of collets appr. 75% size B 32

turning diameter:325 mmturning length:600 mmtotal power requirement:35 kWspindle drive:25 kWspindle turning speed range:5000 U/minspeeds of tool:4500 U/minrapid traverse X-axis:60 m/mindiverse toolholders:VDI 40 rapid traverse Z-axis:45 m/minweight of the machine ca.:6,5 tdimensions of the machine ca.:3,5 x 2,5 x 2,1 mMachine with SIEMENS 840 D control power line with shopturn- C and Y-axis, driven tools- bar loader IRCO ILS-RBK- coolant device with coolant throough revolving head- Revolver- counter spindle- chip conveyor- collet clamping - part catcher

turning diameter:626 mmturning length:3000 mmTurning diameter:600 mmspindle bore:100 mmspindle turning speed range:2800 U/minweight of the machine ca.:18 tMachine overhold and retrofit in 2003 with SIEMENS 840 D control- NC steady rest- 12-fold revolving head- splash doors- tailstock- coolant device

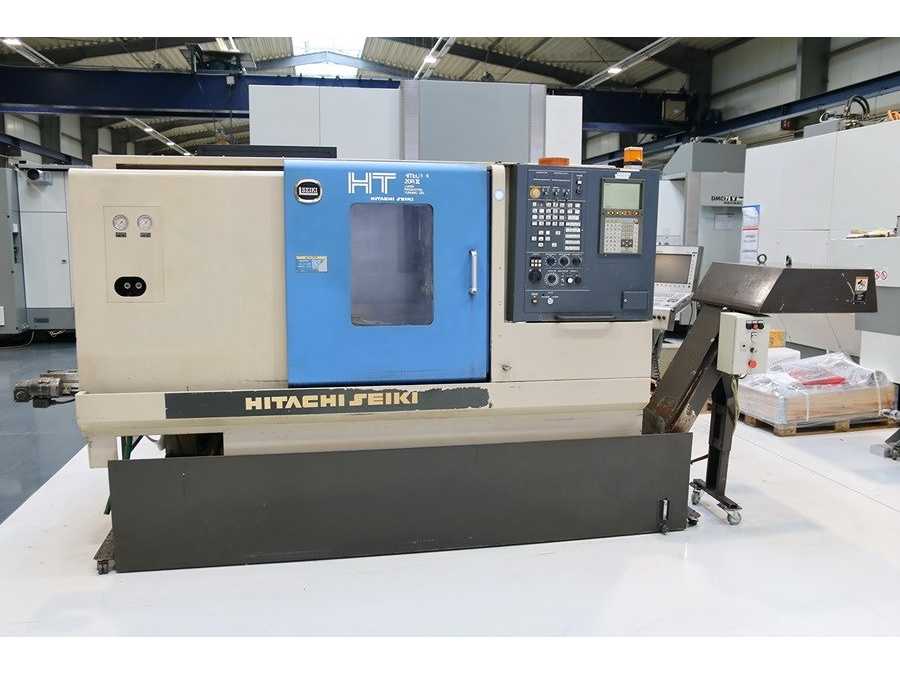

HITACHI SEIKI - HiTec-Turn HT 20 RIII Numer aborcyjny 1039-9425 Kraj pochodzenia Niemiec Szczegóły techniczne Średnica toczenia 450 mm Długość toczenia 380 mm Seico 40L Multi Control Maksymalna średnica obróbki 340 mm Przejście prętowe 51 mm Zakres prędkości - wrzeciono 30 ~ 5 000 obr./min Moc napędowa - silnik wrzeciona 11 / 7,5 kW Nos wrzeciona A2-6 Średnica wrzeciona 59 mm Średnica łożyska 100 mm Ruch - x 215 mm Ruch - z 400 mm Głowica wieży (x-fold) 16 Prędkość posuwania 0,001 ~ 500 mm/min Szybki zwrot X/Z: 30 m/min Średnica wału 25 x 25 mm Średnica wału wiertarek 40 mm Tylnik Mocowanie tylnego kolca MK 5 Skrzynia konia konia 300 mm Całkowite zapotrzebowanie na moc: 23 kVA Wymagania dotyczące przestrzeni to ok. 5,5 x 2,8 x 2,2 m Akcesoria Dokumentacja Przenośnik chipowy Tylnik Lampa sygnalizacji Usuwanie części Ramię pomiarowe narzędzi O� ...

turning diameter over bed:930 mmturning diameter over slide rest:630 mmturning length:6000 mmturning dia. in gap:1250 mmspindle bore:95 mmturning speed range:8 - 800 U/mintotal power requirement:25 kWdimensions of the machine ca.:9 x 2 x 1,9 mfaceplate 2 steadiescoolant attachment taper turning attachment

Maksymalna średnica toczenia nad stołem: 930 mm Maksymalna średnica obrotu nad prowokatorem poprzecznym: 630 mm Odległość środkowa: 5000 mm Nos wrzeciona: bagnet DIN 55027 K11 Średnica cylindra wrzeciona: 96 mm Prędkość obrotowa: 8-800 (24) obr./min Napęd główny: 22 kW Wymiary sześcienne x szerokie: 2050 x 2200 mm Dodatki: Płyta zaciskowa 400 mm, samocentrująca się z 3 szczękami Płyta zaciskowa 800 mm niezależna czteroszczękowa Mocowanie stożkowe Ruchome podparcie 260 mm Stałe wsparcie z wkładkami rolkowymi 20-400 mm Stałe podparcie z wkładkami rolkowymi 350-580 mm Cyfrowy odczyt Sony – 2-osiowy Uchwyt narzędziowy Multifix D1 Uchwyty narzędziowe: 1 element System chłodzenia Instrukcja maszynowa i rysunki (język niemiecki) Auction-ID: A1-47358-175

faceplate diameter:1600 mmswing diameter:1800 mmturning height:1500 mmmax. ram stroke:1200 mmfaceplate turning speed range -stepless-:2,5 - 250 U/minworkpiece weight max.:10.000 kgram head dimension:240 x 240 mmfeed range:1 - 3000 mm/minpower capacity:45 kWweight of the machine ca.:20 tmodernized and overhauled in 2010 with CNC SIEMENS 840 D12 positions automatic toolchangertelescopic coverssplash guardingchip conveyorcoolant attachmentdiverse toolholders

faceplate diameter:5000 mmswing diameter:6100 mmturning height:2400 mmram stroke each side:1490 mmram head dimension:340 x 340 mmmax. workpiece weight:100.000 kgtotal power requirement:100 kWweight of the machine ca.:155 tfaceplate turning speed range:0,4 - 50 U/minwith 2 axes CNC SIEMENS 840 D

turning diameter over bed:100 mmturning diameter over slide rest:70 mmturning length:80 mmtotal power requirement:1,0 kWweight of the machine ca.:0,5 tdimensions of the machine ca.:0,7 x 0,6 x 1,2 mfacing lathe with manual feed, various accessories

turning diameter:1600 mmturning length:12000 mmcontrol:FAGOR 8050 Used CNC Lathe with FAGOR 8050 and extensive accessories.For further technical data and accessories, pls browse the Appendix.Parallellathe WMWmod. 4 GUIDE-WAYS¦ CNC: FAGOR 8050¦ bed: monolithic¦ centres height: 800 mm¦ centres distance: 12000 mm¦ swing over cross-slide: 1250 mm¦ turret: automatic 4 positions¦ tailstock: motorized¦ tailstock connection: hydraulic¦ platform: diam. 1000 mm¦ steady rests: nr.02¦ chip conveyorWarranty: noneTake advantage of the favorable leasing and hire-purchase terms from IKB Leasing. Ask us about it.

turning diameter:1390 mmturning length:14000 mmweight of the machine ca.:13 tMore information can be found in the Appendix.

turning diameter over bed:3800 mmturning diameter over slide rest:3200 mmturning length:12000 mmfaceplate turning speed range -stepless-:2 - 200 U/minmax. workpiece weight:90.000 kgbed width:4000 mm2 steadies

turning diameter over bed:2600 mmturning diameter over slide rest:2200 mmturning length:5000 mmfaceplate:2050 mmnumber of spindle speeds:0,7 - 70 rpmtotal power requirement:ca. 22 kwHeight of centres: 1350 mmDistance between centres: 5000 mmSwing over cross slide: 2600 mmSpindle power: 30 HPSpindle speed: 0,7 - 70 rpmLongitudinal swiftControl on the carriageChuck: diam. 2050 mm

turning diameter over bed:1450 mmturning diameter over slide rest:1000 mmturning length:8000 mmspindle bore:160 mmturning speed range:2,8 - 560 U/minbed width:850 mmfaceplate diameter max.:1400 mmturning diameter in the gap:1800 mmlength of gap:600 mmdimensions of the machine ca.:12 x 2 x 2,5 mwith Digital Readout2 fixed steadies dia 1070 mmchip conveyor

:KVL-450 | KVL-600 | KVL-800| KVL-1100 turning diameter:450|600|800|1100 mmswing diameter:550|650|1000|1250 mmturning height:450|500|750/950|1000 mmspindle nose:A2-8|A2-8|A2-11|A2-15 table rotation speed:50-2500|50-2250|20-1500|20-600 U/minTravel of Ram (vertical):450|500|800 / 1000 (Opt.)|1000 mmTravel of ram (horiz.):300|340|500|700 mmrapid power traverse in X-and Z direction:20/24|20/24|20/20|10/10 m/minTool changer:8/10/12 mit vertikaler oder horizontaler Scheibe tool taper:VDI40/VDI50 oder Schaftaufnahme drive capacity - spindle motor:11/15|15/18.5|18.5/22|37/45 kWMachine height:2600|2910|4020|4605 mmweight of the machine ca.:4500|6000|13000|18000 kghydraulic motor:2,2 kWservo motor X-axis:1,6|1,6|4|7 kwservo motor Z-axis:3|3|7|7 kwcoolant pump drive:0,75+1,1|0,75+1,1|0,75+0,75+1,1|0,75+0,75+1,1 kW:35|40|50|70 kvaCNC controller:Siemens/Fanuc/Fagor CNC controls from:Siemens/Fanuc/Fag ...
