3,482 wiertarkofrezarki i centra obróbcze używane na sprzedaż

x-travel:2500 mmy-travel:1000 mmz-travel:750 mmtable surface area:3220 x 1000 mmWorkpiece weight approx.:3000 kgspindle taper ISO:50 milling spindle turning speeds:20 - 5000 U/minfeed speeds:1- 30000 mm/minrapid traverse:30 m/mintotal power requirement:40 kWdimensions of the machine ca.:6,9 x 4,1 x 3,7 mweight of the machine ca.:21 twith CNC HEIDENHAIN TNC 42630-pockets autom. toolchangerRENISHAW measuring probecoolant attachment with TSC and chip conveyordiverse toolholders

x-travel:3000 mmy-travel:1000 mmz-travel:1200/1300 mmspindle motor:32 kWspindle taper: ISO:50 spindle turning speed range:20 - 8000 U/minfeed range:1-30000 mm/minrapid traverse feeds:30 m/mintotal power requirement:80 kW

spindle diameter:150 mmx-travel:10000 mmy-travel:2500 mmbore spindle stroke:700 mmram stroke:700 dimension of the ram:340 x 340 mmspindle taper ISO:50 Speed of boring spindles:1,25 - 1250 U/min.feed speeds infinitely variable:1 - 5000 mm/minrapid traverse:5 m/mintotal power requirement:120 kWweight of the machine ca.:115 tdimensions of the machine ca.:15,1 x 10 x 6,4 mwith CNC SIEMENS 840 Dsl complete retrofit in 2010FIBRO CNC rotary table 2500 x 2500 mm, 50 to. loading capacity,longitudinal movement 2500 mm,angular milling head 4 x 90°universal milling headfloor plate area ca. 12000 x 6000 mm ( 72 m²)chip conveyor and coolant attachmentaerostatic guideways

x-travel:600 mmy-travel:580 mmz-travel:580 mmnumbers of pallets:2 pallet size::400 x 400 mmmax. workpiece weight:400 kgspindle taper ISO:40 spindle speeds::35 - 12000 feed speeds:1 - 50000 mm/minrapid speed:50 m/mintotal power requirement:25 kWweight of the machine ca.:12 tdimensions of the machine ca.:3,6 x 3,6 x 2,9 mwith CNC SEICOS 16 M ( FANUC base )autom. toolchanger 61-pocketspallet indexing 1°chip conveyor and coolant attachmentexhausterclamping cube and diverse toolholders

bore capacity in steel (diameter):80 mmarm length:2500 mmWORKING RANGE -BORING-:. - drilling capacity full bore (steel):80 mm - throat (max):2500 mm - horizontal travel:2000 mm - vertical travel:1000 mm - sleeve stroke:450 mmWORKING SPINDLE / HEAD:. - spindle revolutions (min):16 /min - spindle revolutions (max):1250 /min - number of gears:16 - spindle diameter:104 mm - taper fixture : MK 6 :. - drive power (max):7.5 kW - max. distance spindle ... clamping surface:2000 mmELECTRICAL SPECIFICATIONS:. - mains voltage:380 V - mains frequency:50 HzDIMENSIONS / WEIGHTS:. - space requirements length:3730 mm - space requirements width:1400 mm - total height:4025 mm - total weight approx.:11000 kgAttachments :- Angular Table 1000 x 800 x 800- Coolant DeviceDescription of condition :SHOWROOM MACHINE

x-travel:800/945 mmy-travel:800 mmz-travel:600 mmspindle motor:27 kWspindle turning speed range:10 - 8000 U/minspindle taper ISO:40 c-axis:360.000 x 0,001 table load capacity:600 kgtable clamping surface::800 630 mmtotal power requirement:55 kWweight of the machine ca.:16 tMachine with Heidenhain iTNC 530 CNC control for 5 axis- pendulum operation with turn- swivil table left and fixed table right- tool changer for 30 tools- coolant device, chip conveyor- complete splash housing

spindle diameter:130 mmspindle diameter:130 mmx-travel:2190 mmy-travel:1520 mmz-travel:1000 mmw-axis:1075 mmtable surface area:2000 x 1800 mmworkpiece weight max.:8000 kgspindle turning speed range:4,5 x 900 U/minspindle taper: ISO:50 faceplate turning speed range:4,5 x 180 U/minfaceplate diameter:785 mmrapid traverse::5000 mm/mintotal power requirement:40 kWweight of the machine ca.:35 tdimensions of the machine ca.:5,5 x 6,9 x 5,2 mMachine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds- table indexing 4 x 90°- facing head 785 mm- exhauster- various arbors and tooling

bore capacity in steel (diameter):100 mmmax. pitch circle:7000 mmnumber of spindles:2 bore spindle turning speed range:1 - 3000 U/minhigh speed spindle taper ISO:50 bore slide stroke:900 mmfeed speeds:1 - 6000 mm/minmax. workpiece weight:18000 kgtotal power requirement:125 kWdimensions of the machine ca.:13 x 11 x 5,1 mwith CNC SIEMENS 840 DWorkpiece clamping up to dia. 7000 mmThe machine is equipped with 2 drilling spindle supports and through spindle coolant (50 bar)both supports can drill simultaneously. Spindle taper SK 50, 2 stages 1 -600 rpm 1650 Nm and 1 - 3000 rpm. 300 NmChip conveyor and coolant device

x-travel:2200 mmy-travel:2200 mmz-travel:1400 mmspindle taper ISO:50 spindle diameter in front bearing:110 mmspindle turning speed range:45 - 6000 U/minpallet table size:1000 x 1250 mmpallet worktable capacity:6000 kgfeed range:1 - 60000 rapid traverse:60 m/minspindle drive motor:27 kWdimensions of the machine ca.:15 x 8,5 x 5,7 mtotal power requirement:133 kVAweight of the machine ca.:50 tMachine with SIEMENS 840 D control- full B-axis- palette changer for 3 palettes- tool changer for 244 tools- coolant through spindle- max. workpiece swing 2200 mm

x-travel:1800 mmy-travel:1600 mmz-travel:1400 mmB-axis (table):360° size of pallet:1000 x 1250 mmworkpiece swing dia.:2100 mmworkpiece weight:3500 kgspindle taper ISO:50 spindle drive motor:37 kWspindle turning speed range:25 - 10000 U/minfeed range:40/50 m/minrapid power traverse circular:10 U/mintotal power requirement:90 kVAweight of the machine ca.:43 tdimensions of the machine ca.:11 x 9 x 4,5 mMachine with SIemens 840 D control for 4 axis- full B-axis- palette changer- tool changer for 150 tools- coolant device with coolant through spindle- chip conveyor

x-travel:710 mmy-travel:630 mmz-travel:500 mmturning speed range - spindle:5 - 5000 1/minpower - main spindle:11 kWtool taper:SK 40 tool changer:44 Werkzeuge feed:10 m/minsurface area:1200 x 600 mmtable load:0,5 ttotal power requirement:15 kVAweight of the machine ca.:4,24 tToolchanger with 44 tools, pendant handwheel for easy setup.

x-travel:730 mmy-travel:650 mmz-travel:730 mmcontrol:Professional 3 (Fanuc 18i) turning speeds:12000 1/minspindle drive:22 kWTorque:166 NmNumber of tool station:132 HSK-A 63 max. tool length:360 mmmax. tool diameter:70 mmmax. tool-dia with free toolbox:140 mmmax. tool weight:12 kgtool changing time:0,9 / 2,5 secnumbers of pallets:2 Pallet dimension:500x500 mmworking diameter:800 mmtable load:0,7 tdistance spindle center to table:80 - 730 mmDistance spindle nose - pallet centre:70 - 800 mmrapid travel x/y/z:50 m/minFeed x/y/z:50 m/mintotal power requirement:65 kVADimensions (L/W/H):7 x 2,5 x 3,4 mmweight of the machine ca.:9,5 tCustom Macro, Number of Variables:600 program memory:500 kB = 1280 m Coolant through spindle 30 bar:30 l/min No. of tool offset pairs:99 This very solid Makino A 61 has a full B-axis, coolant through spindle 30 bar.

x-travel:630 mmy-travel:630 mmz-travel:630 mmpallet size::400 x 500 mmspindle taper::HSK 63spindle turning speed - stepless:10 - 16000 U/mintotal power requirement:55 kWweight of the machine ca.:11 tMachine with SIEMENS 840 D control for 4 axis- digital drives- palette changer 4-fold- tool changer 160-fold - coolant device with coolant through spindle- full B-axis- chip conveyor- hydr. workpiece clamping

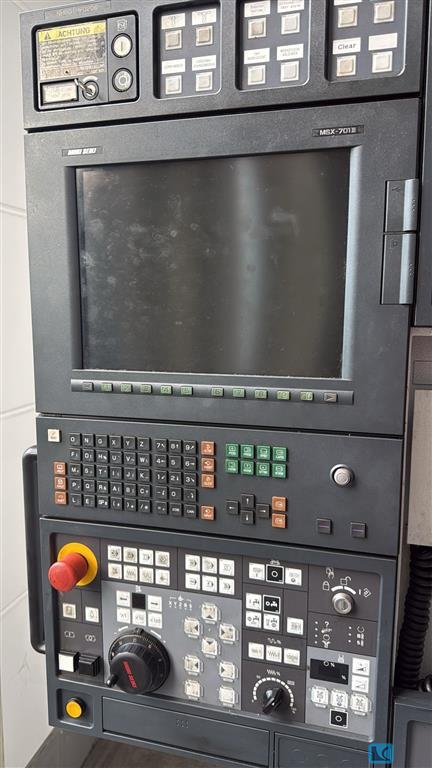

x-travel:1400 mmy-travel:1200 mmz-travel:1350 mmcontrol:MSX- 701 Mapps III table surface area:800 x 800 mmrapid traverse:50 m/mintable rotating:360.000 x 0,001 B-Achse °table load:2,0 tnumbers of pallets:2 turning speed range:8000 1/minpower capacity - milling spindle:37 kWno. of tools in the magazine:60 Stücktool taper:HSK-A 100 weight:31 tdimensions:5,5 x 2,8 x 3,68 mEquipment:- Thru-the-spindel coolant system Mayfran Consep 2000 70 bar with chipconveyor - Helical cutting + Synchronized tapping- storage 1 MB- Big Plus spindle - Knoll filter system- mechanical Oil dust collector- elect. hand wheel- renishaw - abso- scale i X/Y/Z- axis- 5 free m- funktions- 48 extra off sets- dual ballscrews on X/Y/Z- axis

x-travel:560 mmy-travel:510 mmz-travel:510 mmcontrol:Fanuc MSX 501 MAPPS III spindle drive:22 kWspindle speeds:12000 U/minrapid travel x/y/z:42 mm/minNumber of tool station:40 BT40max. tool weight:12 kgtool changing time:1,3 secPallet dimension:2x 400x400 mmtable load:0,5 tworking diameter:max. 610 mmtotal power requirement:56 kVAweight of the machine ca.:8,7 tdimensions of the machine ca.:2,9x4,1 m

x-travel:1530 mmy-travel:530 mmz-travel:465 mmside by side, right side fixed table X =:925 mmside by side left side 2 axis table X =:780 mmcontrol:Heidenhain TNC 640 tool magazin::122 SK 40 spindle turning speed - stepless:12.000 1/minSpindle Torque:120 Nmpower capacity:22 kWFixed Table Dimensions:920 x 540 mmTable load fixed table:2000 kgMax. parts size on fixed table:900 x 500 x 400 mmDiameter of integrated 2-axis rotary table:650 mmTable load rotary table:500 kgB-axis swivel angle:-90°/+110° ° / degMax. parts size on rotary table:600 x 500 x 400 mmMax. Parts size over both tables:1500 x 500 x 400 mminternal coolant system feed:70 bar barweight of the machine ca.:10,5 tdimensions of the machine ca.:3,65 x 2,53 x 2,81 mpendant hand wheel:HR 510 FS Measuring probe for work piece:Blum TC 52 The SpinnerU5 1530 5-axis machine with Heidenhain iTNC 640 control is as new, in excelllent con ...

x-travel:800 mmy-travel:950 mmz-travel:1020 mmcontrol:Sinumerik 840D sl MDynamics Operate turning speeds:10.000 1/minSpindle power:26/20 kWmax. torque on the spindle:340/262 Nmtool taper:HSK-A 100 tool change unit:120 (2x60) Pos.Pallet changer 2x:630 x 630 mmtable load capacity:800 kgweight of the machine ca.:20 tdimensions of the machine ca.:3,3 x 6,15 x 3,2 m6-axis simultaneous horizontal machining center with controlled swivel-rotary table (A/B-axis), Swivel table can swing overhead (180°), that means the part is hanging down overhead and chips don?t accumulate on pallet, they can fall free into the chip conveyorCNC controlled U-axis enables radial movement of tool for variable spindling diamenter.twin pallet changer 630 x 630 mm6 hydraulic couplings for pallet fixture clamping with rotary joint in A and B-axisspecial hydraulic pump for fixturecoolant through spindle (10-80bar), one ...

x-travel:600 mmy-travel:700 mmz-travel:520 mmcontrol:Sinumerik 840D sl MProfinet number of spindles:3 Spindle RPM:8000 1/minSpindle power:40/49 kWSpindle Torque:300/360 NmParts carrier / rotary tables (B-axes):2 x 3 Table load per A-axis carrier:1600 (x2) kgWidth of A-Axis table:1920 mmMax. dia. parts carrier (A-axis:800 Interference dia. rotary tables:560 mmworkpiece - installed height:400 mmtool taper:HSK-A 100 tool change unit:120 Pos.diameter of tools max.:260 mmtool length - max.:420 mmweight of tools max.:20 kgtotal power requirement:170 kVAweight of the machine ca.:40 tdimensions of the machine ca.:8,4 x 6,1 x 3,4 mHigh-end 3-spindle, 5-axis simultaneous horizontal machining center with CNC controlled pendulum swivel-rotary table (A/B-axis),3 torque rotary tables inside machine while 3 rotary tables are waiting at the setup side.Coolant through spindle 0-70bar stepplessBaluff too ...

spindle diameter:130 mmx-travel:2190 mmy-travel:1520 mmz-axis:1520 mmw-axis:1000 mmtable surface area:2000 x 1800 mmworkpiece weight:8 tspindle motor:18 kWspindle taper ISO:50 spindle turning speed range:4,5 - 900 U/minfaceplate diameter:785 mmrapid traverse:5 m/mintotal power requirement:40 kWdimensions of the machine ca.:5,5 x 6,9 x 5,2 mweight of the machine ca.:35 tMachine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control- inf. variable spindle spped- 4 x 90° table positioning- diverse toolholders- dDust exhauster

spindle diameter:130 mmx-travel:2750 mmy-travel:2530 mmz-axis:2320 mmw-axis:700 mmB-axis (table):360.000 x 0,001 °spindle motor:50 kWspindle taper: ISO:50 spindle turning speed range:1,6 - 1600 U/minTable dimensions:1800 x 2000 mmmax. workpiece weight:8000 kgweight of the machine ca.:37 ttotal power requirement:50 kWdimensions of the machine ca.:5,9 x 7,2 x 5,1 mMachine equiped with CNC HEIDENHAIN TNC 426Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt.Copyright © 2005-2024, Josef Weber. All rights reserved.

spindle diameter:120 mmx-travel:1250 mmy-travel:1250 mmz-travel:800 mmW-axis (spindle longitudinal):600 mmSpeed of boring spindles:1- 2000 U/min.spindle taper ISO:50 table surface area:1000 x 1000 mmtotal power requirement:55 kWweight of the machine ca.:18 twith CNC HEIDENHAIN TNC 426autom. toolchnager 40-pocketscoolant attachment

distance spindle /table:min /max 190 / 570 mmdistance spindle /table:190 - 570 mmsurface area:650 x 300 mmBoring power:in GG 20 40 mmbore capacity in steel:ST 60 32 mmturning speed range::50 - 5000 UpMtotal power requirement:2,2 kWthreading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kgtable load:max. 150 kgtable height:770 mmtraversing speed:max X-, Y- u. W-Achse 5 m/min max.traversing speed:Z-Achse 3 m/minw-axis:380 mmworkpiece height max.:495 mmtool changing time:ca. 3 secx-travel:450 mmy-travel:300 mmz-travel:180 mmworkpiece weight:1,5 kg

spindle diameter:200 mmx-travel:10000 mmy-travel:4000 mmz-axis:1500 mmW-axis (spindle longitudinal):1000 mmbore spindle turning speed range:1 - 2000 U/mindimension of the ram:600 x 530 mmhigh speed spindle taper ISO:60/50 rapid motion - x-axis:8000 mm/minrapid motion - y-axis:8000 mm/minrapid traverse Z-axis:5 m/mintotal power requirement:120 kWweight of the machine ca.:135 tdimensions of the machine ca.:16,0 x 5,0 x 10,0 mwith CNC Steuerung HEIDENHAIN iTNC 530hydrostatic guideways x and Y- axisautom. toolchanger 40-pocketsautom. Pickup Station for angular milling head, universal milling head and facing headrotary table 3000 x 3000 mm , max load 60 to.v-axis 2500 mmmeasuring probe, chip conveyor and coolant attachment

x-travel:800 mmy-travel:690 mmz-travel:630 mmtotal power requirement:76 kWweight of the machine ca.:25,5 tb-axis:630 Rundeinheit control:Siemens 840 D workpiece weight:max . 1.100 kgspindle turning speed range:15000 U/minBoring power:30 mmplate size:630 x 630 mmDimension:6000 x 2900 x 2400 mmspindle taper::HSK 63 Documents:vorhanden

x-travel:630 mmy-travel:560 mmz-travel:560 mmtotal power requirement:10 /15 kWweight of the machine ca.:6500 kgdimensions of the machine ca.: 4,4 x 5,4 x 2,9 mTable dimensions:1000 x 610 mmLoading:400 kgrapid traverse::X 26, Y 26, Z 20 m/minspeeds::20 - 12.000 min -1tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St.control:CNC MillPlus/TNC430 Documents:vorhanden

x-travel:1100 mmy-travel:900 mmz-travel:1250 mmb-axis:360 000 x 0,001 °milling head speed:1 - 10000 U/minspindle taper: ISO:50 rapid traverse:60 m/minpallet size::630 x 630 total power requirement:37 kWweight of the machine ca.:25 twith CNC control SIEMENS 840 Dautom. toolchanger 165 pockets twin pallets 630 x 630 mm max. pallet load 1500 kgthrough spindle coolantchip conveyor and coolant attachment make KNOLL

bore capacity in steel (diameter):63 mmarm length:2000 mmworkpiece height max.:135 mmspindle stroke:400 mmreus:16 Stufentable-size:630 x 800 mmtool taper:MK 5 speeds:20 - 1600 U/minspindle feeds::0,04- 32 mm/Uwork table::800 x 630 x 550 mmtotal power requirement:5,5 kWweight of the machine ca.:6200 kgdimensions of the machine ca.:3100 x 1250 x 2500 mmYear:ca. 1990

bore capacity in steel (diameter):63 mmarm length:2000 mmworkpiece height max.:135 mmspindle stroke:400 mmreus:16 Stufentable-size:630 x 800 mmtool taper:MK 5 speeds:20 - 1600 U/minspindle feeds::0,04- 32 mm/Uwork table::800 x 630 x 550 mmtotal power requirement:5,5 kWweight of the machine ca.:6200 kgdimensions of the machine ca.:3100 x 1250 x 2500 mmYear:ca. 1990

bore capacity in steel (diameter):40 mmarm length:1200 mmworkpiece height max.:1227 mmsurface area:1475 x 900 mmno. of flutes:3 groove width:25/ 50 mmspindle cone:MORSE 4 number of spindle speeds:45- 2800 U/minspindle headstock:Bew.Arm : 945 mmwith vertical adjustment:Arm 710 mmspindle diameter:35 mmbore depth:300 mmtotal power requirement:3,0 kWweight of the machine ca.:2800 kgdimensions of the machine ca.:2290 x 910 x 2860 mm

bore capacity in steel (diameter):40 mmarm length:1200 mmworkpiece height max.:1227 mmsurface area:1475 x 900 mmno. of flutes:3 groove width:25/ 50 mmspindle cone:MORSE 4 number of spindle speeds:45- 2800 U/minspindle headstock:Bew.Arm : 945 mmwith vertical adjustment:Arm 710 mmspindle diameter:35 mmbore depth:300 mmtotal power requirement:3,0 kWweight of the machine ca.:2800 kgdimensions of the machine ca.:2290 x 910 x 2860 mm
