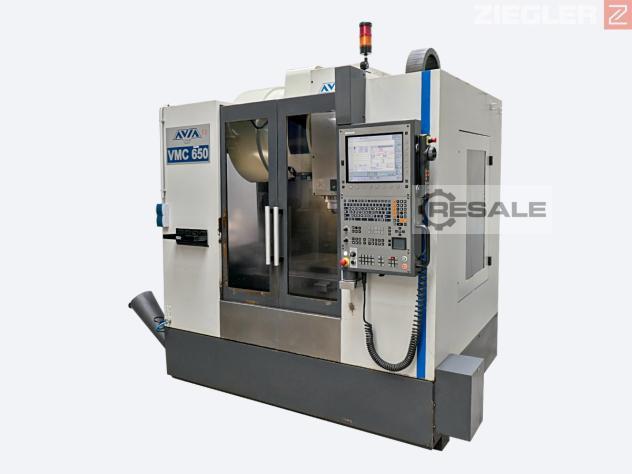

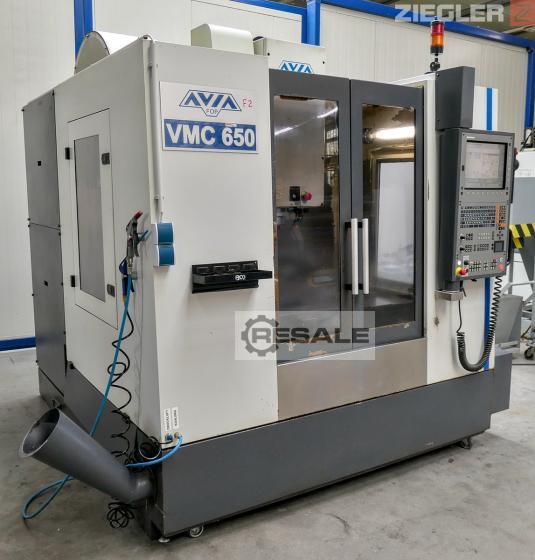

Frezarki sterowana numerycznie AVIA VMC 650

AVIA VMC 650 - Vertical Machining Center

Recording: ISO 40
X/Y/Z: 650 / 540 / 620 mm

The AVIA VMC 650 vertical machining center has been specially developed for the production of small to medium quantities. With a maximum workpiece weight of 700 kg, even heavier parts can be machined without any problems. The high rapid traverse speeds of 25 m/min in the X, Y and Z axes ensure high efficiency of the machine. With a spindle speed of 10000 rpm, a very good surface is guaranteed for a wide variety of materials.

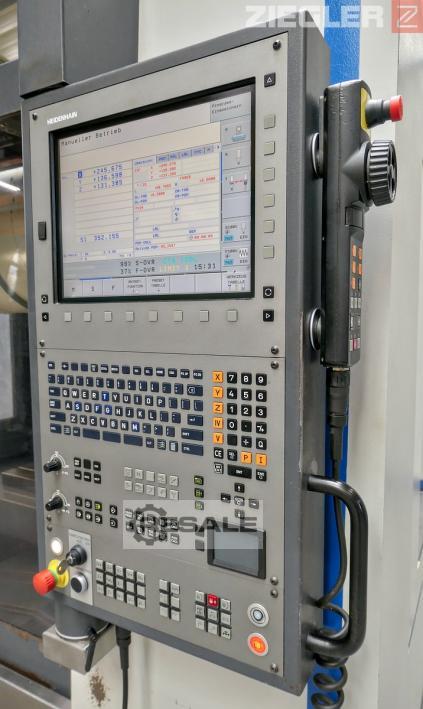

- Heidenhain iTNC 530 HSCI CNC control
- Tool changer with 24 positions
- Chip screw conveyor
- Year of construction 2012

Technical data

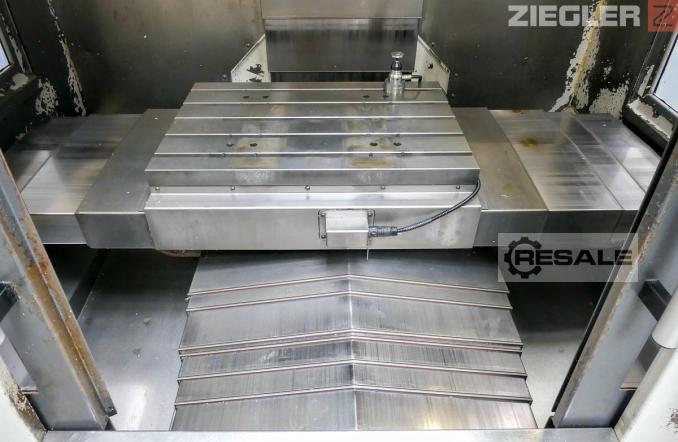

Table:
- Table size: 800 x 540 mm
- T-slots (size/spacing/number): 18 mm / 100 mm / 5
- Max. workpiece weight: 700 kg

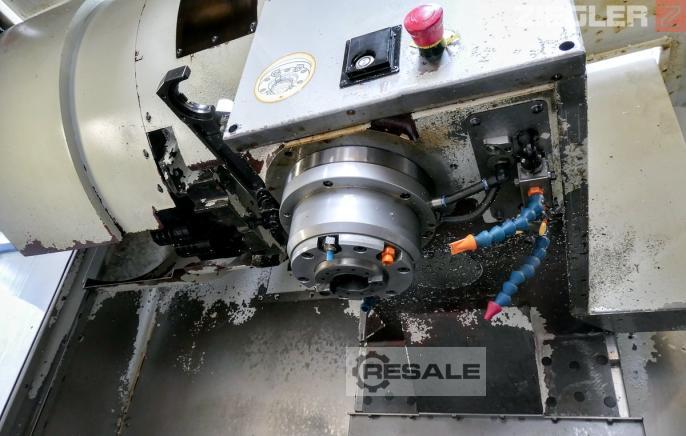

Spindle:
- Type: Cartridge
- Tool holder: ISO 40 according to PN-92/M-55085/01 (DIN 69871A)
- Tightening bolts according to: ISO 7388/2 Type B
- Distance spindle end/table min./max.: 150 / 770 mm
- Max. spindle speed: 50 - 10000 rpm
- Motor power (S6-40% working cycle): 11.5 kW
- Motor power under continuous load: 7.5 kW
Tool magazine:
- Number of tools: 24
- Max. tool diameter: 80 mm
- Max. tool length: 300 mm
- Max. tool weight: 7 kg
- Tool change time: 6.0 s
Travel range:
- Max. travel X-axis: 650 mm
- Max. Y-axis travel: 540 mm
- Max. travel Z-axis: 620 mm
Accuracy (according to ISO 230-2 standards):
- Positioning accuracy: ± 0.005 mm
- Repeatability: 0.005 mm
Rapid traverses:
- Rapid traverse in the axes X/Y/Z: 25 / 25 / 25 m/min
Compressed air requirement:
- Mains pressure: 0.6 Mpa
- Air flow: 0.2 m³/min
- Air quality: Class 5 according to DIN ISO 8573-1

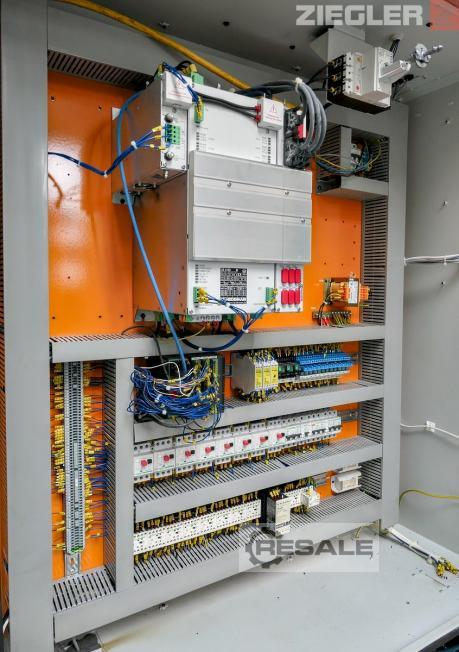

Electrical data:
- Power supply (continuous operation): 3x 400 V / 50 Hz / 40 kVA
- Drives and motors: Heidenhain
Dimensions:
- Front cab door width: 770 mm
- Machine dimensions WxHxD: 2560 x 2705 x 2722 mm
- Machine weight: 4135 kg
seller offer No. resale 100246
