Frezarki sterowana numerycznie DECKEL MAHO DMU 50

x-travel: 500 mm
y-travel: 450 mm
z-travel: 400 mm
control: iTNC 530 Heidenhain

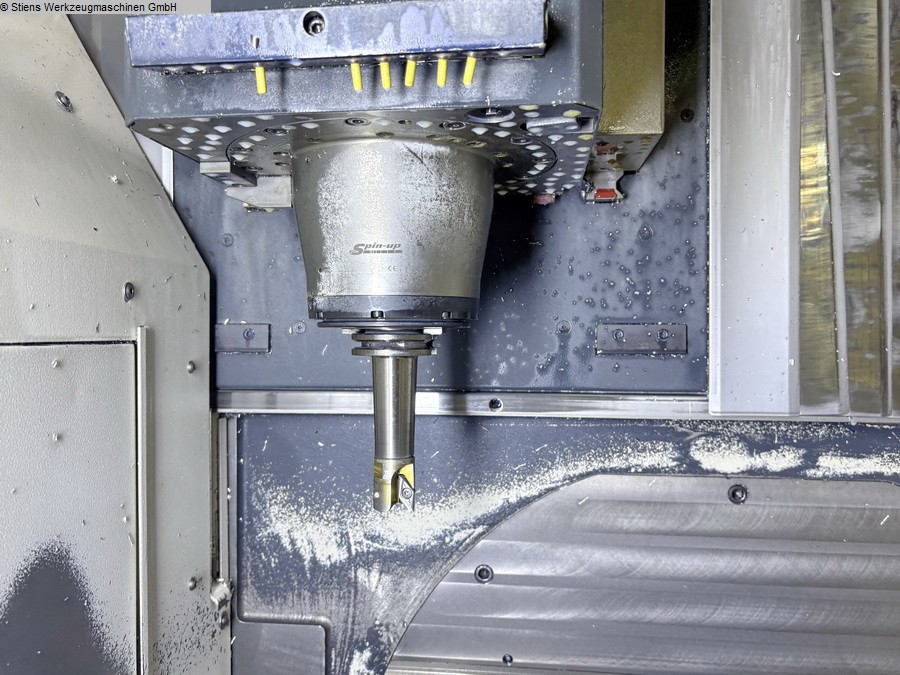

Main spindle::
turning speed range - main spindle: 20 - 10.000 min/-1
power capacity - main spindel: 13 / 9 kW
max. Torque: 83 / 57 Nm
tool taper: SK 40 DIN 69871
table::
table surface area: 700 x 500 mm
max. table load: 500 kg
T-slots: 7x 14 x 63 mm
tool magazin::
number of toolpositions: 60 pos.
max. tool weight: 6 kg
max. tool diameter: 80 mm
max. tool-dia with free toolbox: 130 mm
max. tool length: 300 mm
change-time tool to tool: 1,6 sec
change-time chip to chip: 8,0 sec
feeds::
rapid traverse: 24 m/min
Feed force ( X / Y / Z ): 4,5 kN
feed speeds: 1 - 24.000 mm/min
total power requirement: 26 kVA
weight of the machine ca.: 4,5 t
dimensions of the machine ca.: 4,5 x 3,5 x 2,3 m
Documents:
Chip conveyor:
Coolantsystem:
through spindle coolant: 20 bar
Rotary screen:
elektr. hand wheel:
Signal lamp - 4 colour:
direct travel-measuring-system: X/Y/Z
oil mist extraction:
Coolant-Air-Blast-Change-Over:
Spray gun:
Airblow through center of spindle:
Rotary Union: Spindel / Spindle
Operation mode 4:

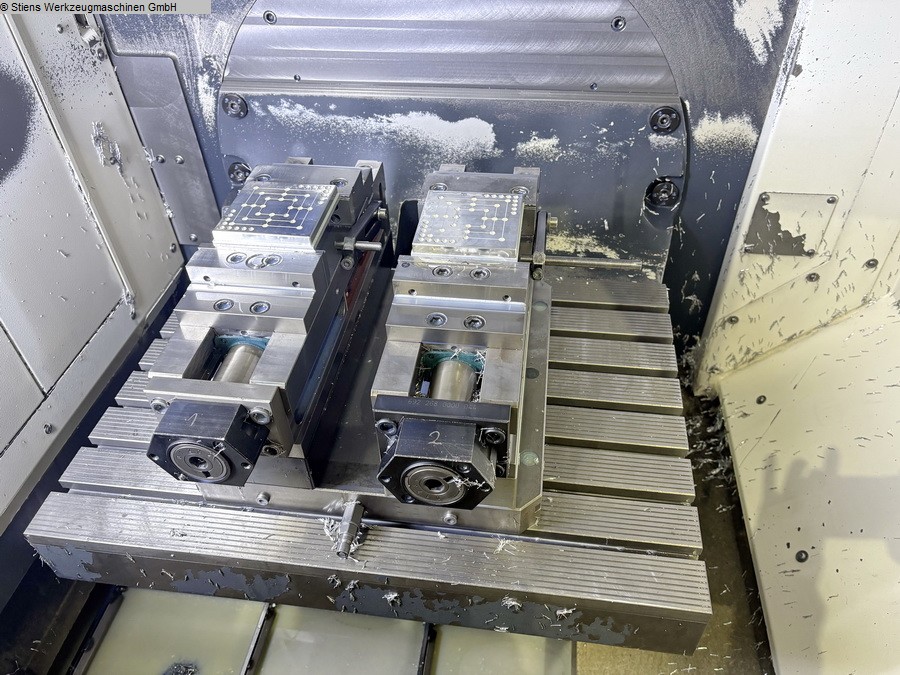

Vice: 2x

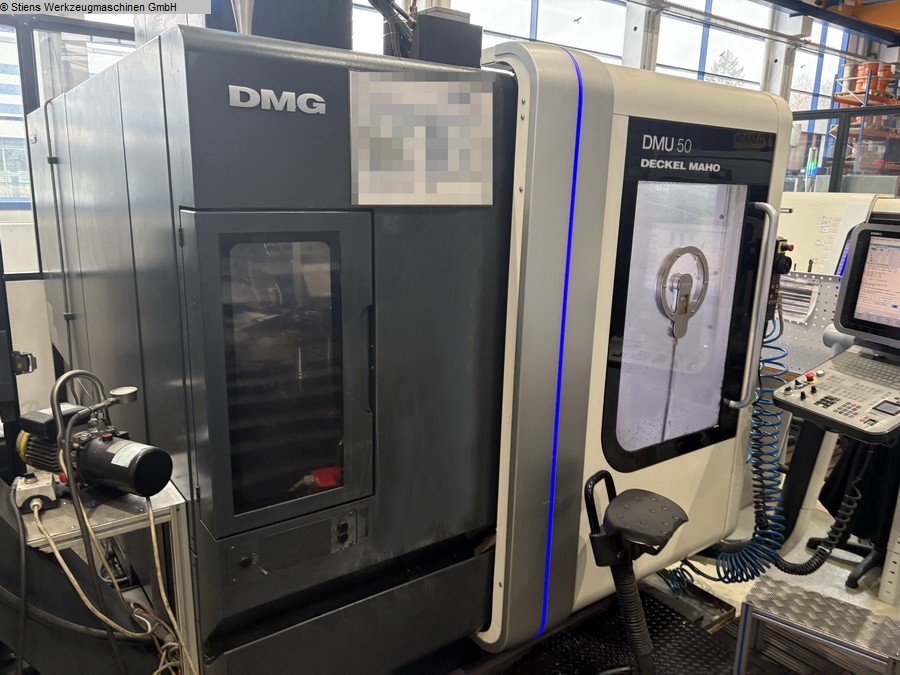

CNC - Milling Machine Vertical
DECKEL MAHO - DMU 50

- only ca. 8.097h Spindle-Hrs.

- Backup package for power outages
- DXF import

- incl. workbench
- incl. tool cabinet
- incl. cabinet for SK 40 tool holders
- incl. approx. 63 SK 40 tool holders
